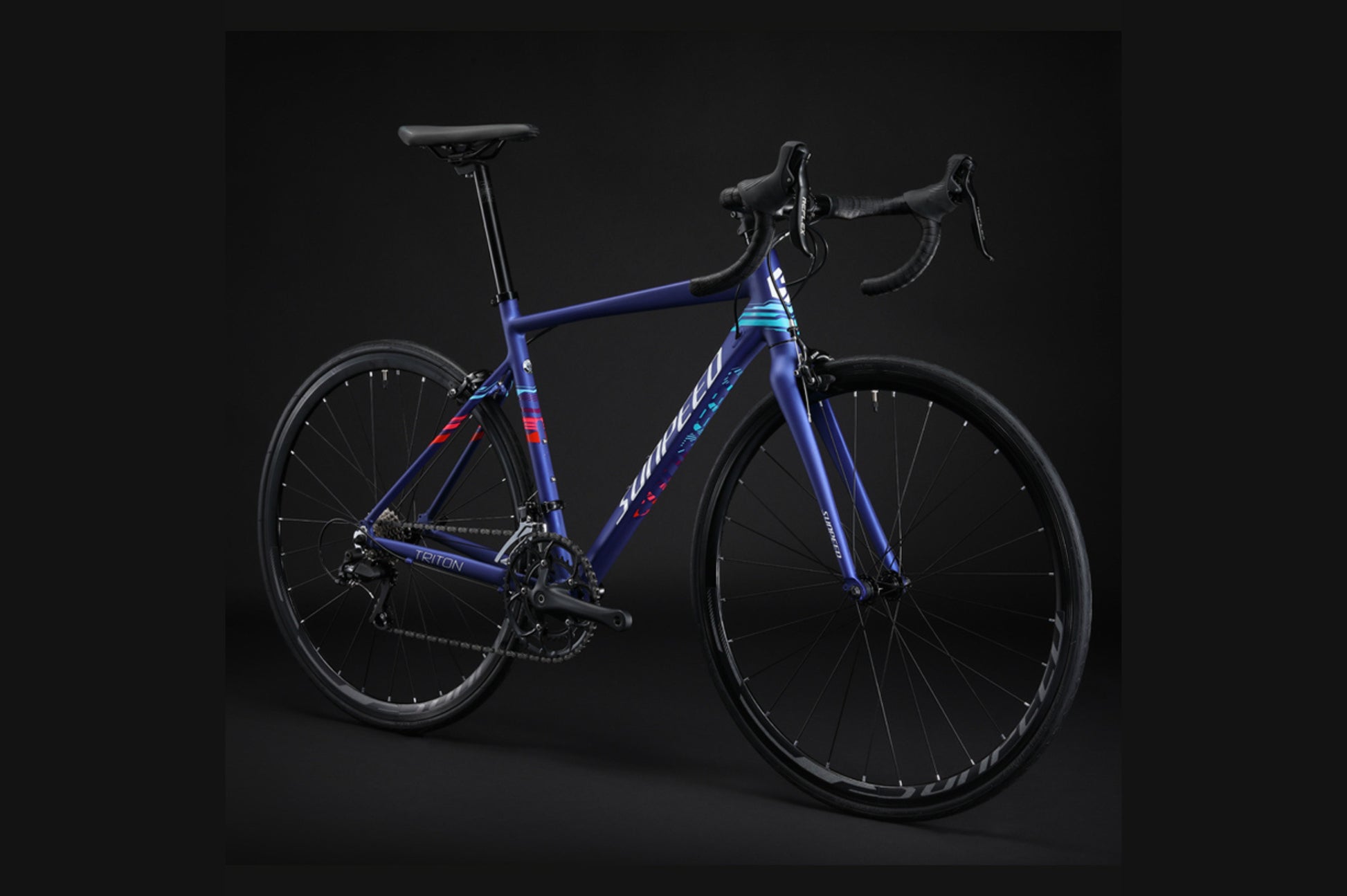

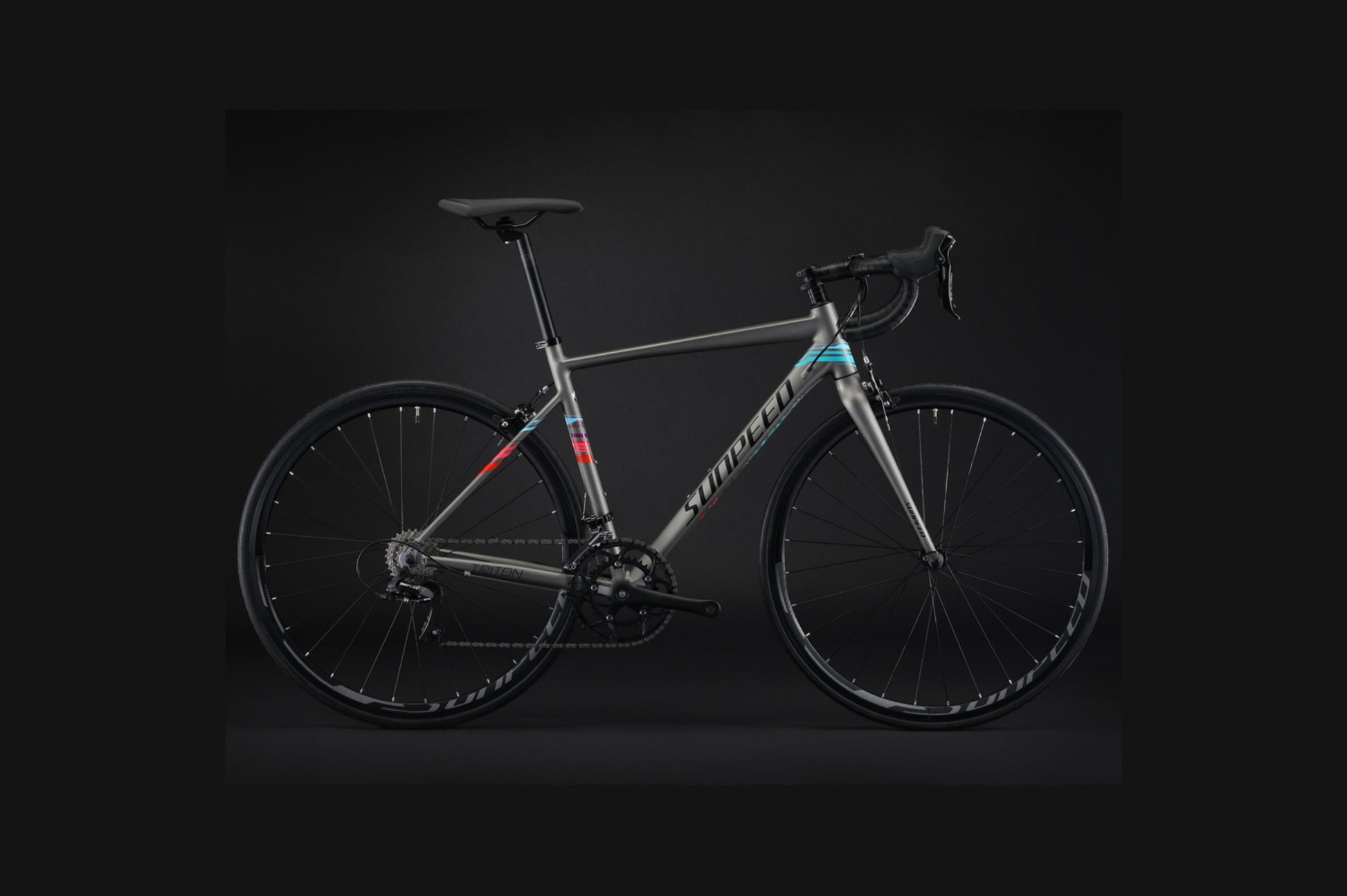

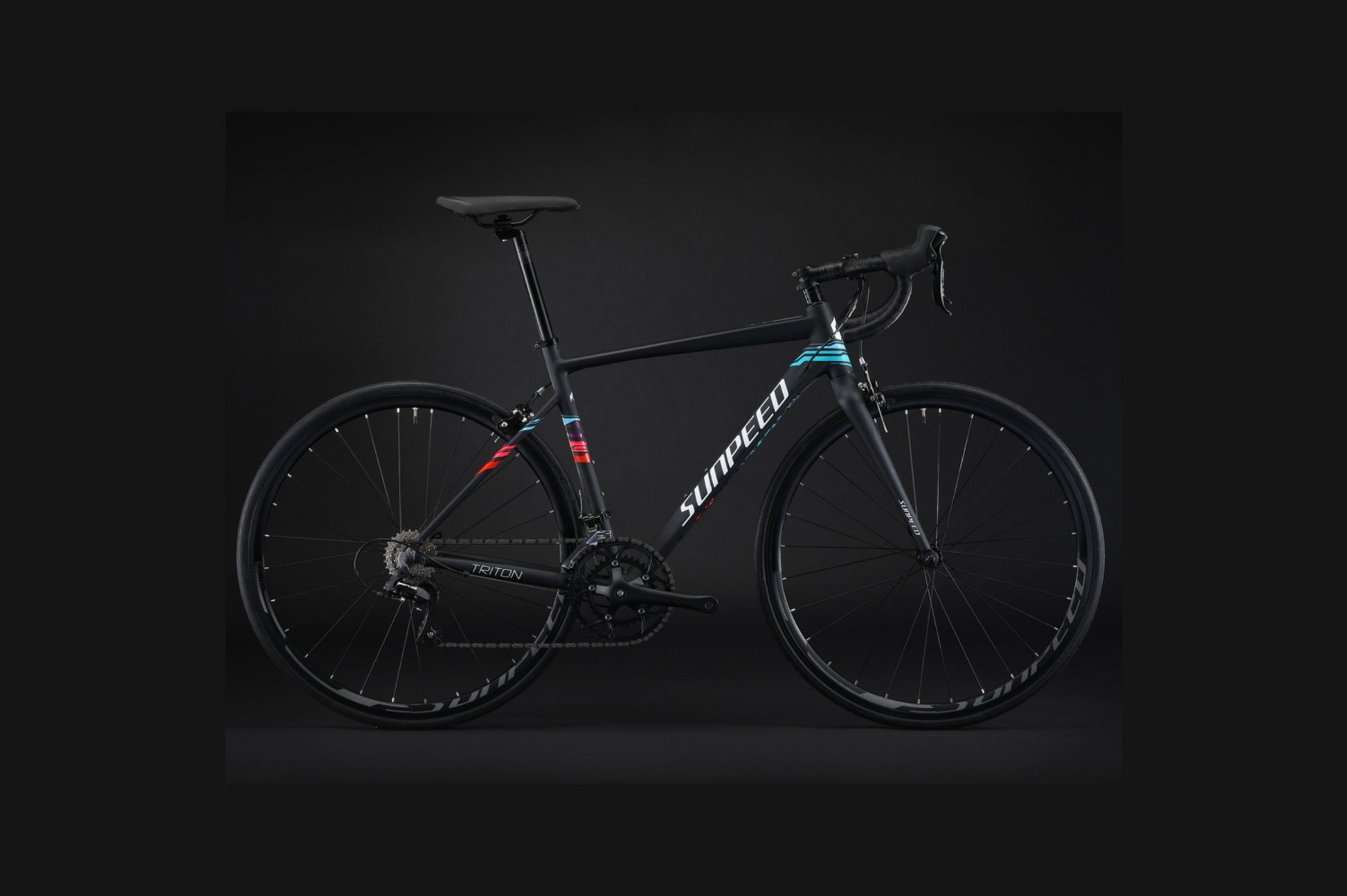

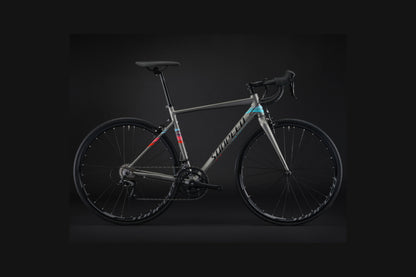

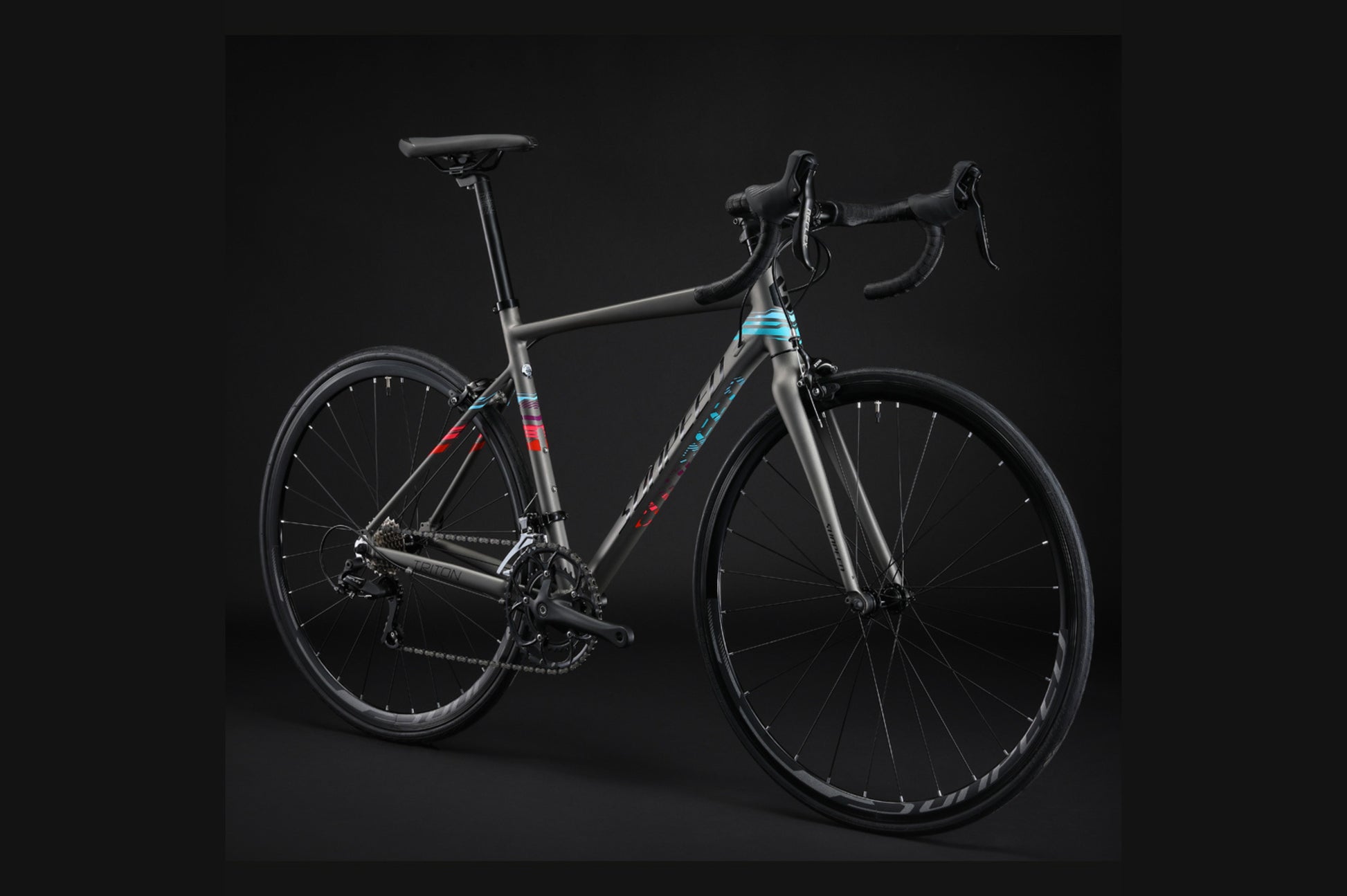

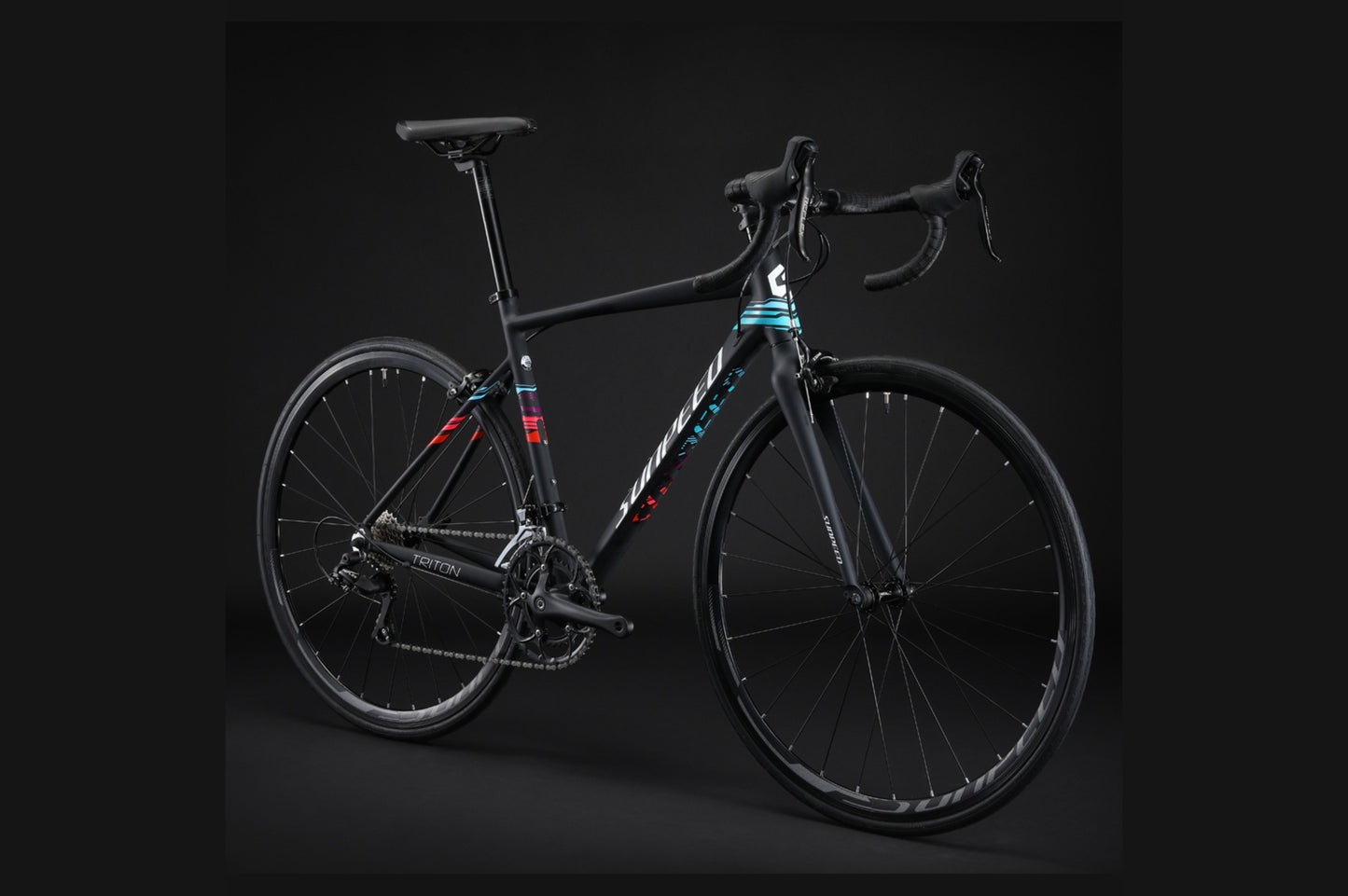

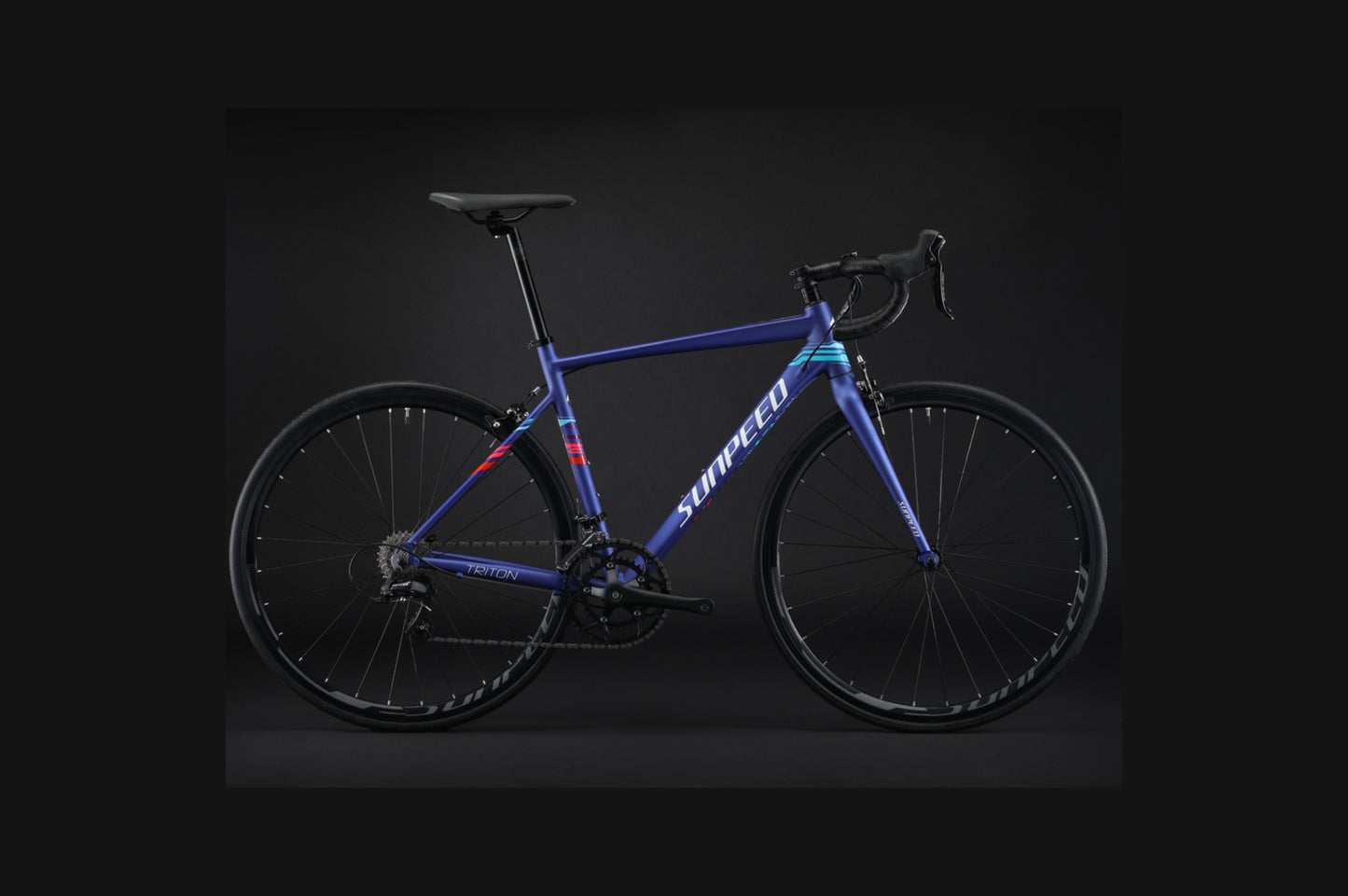

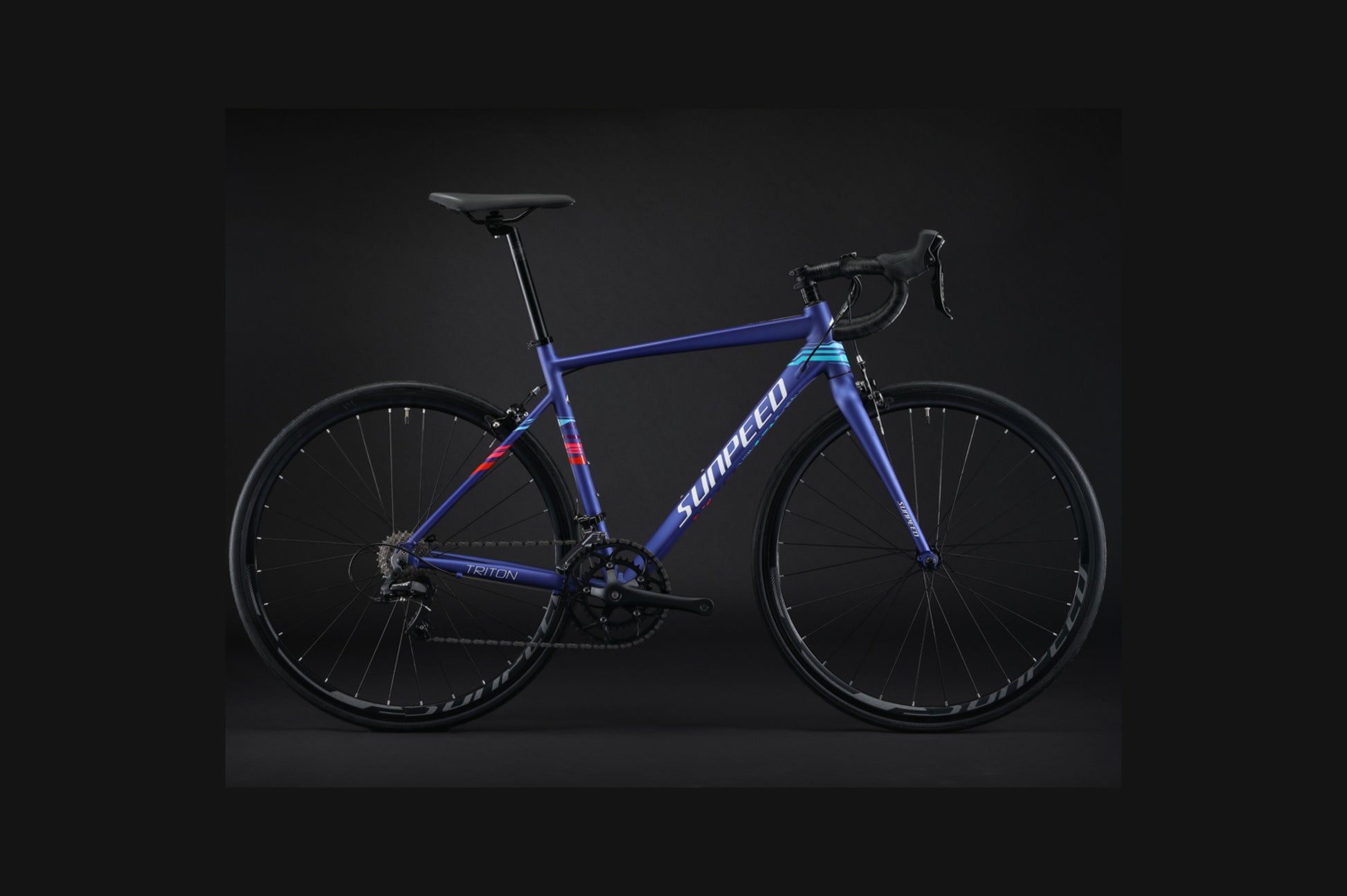

SUNPEED TRITON
Speed, agility, and pure road fun. Lightweight aluminium, SENSAH Reflex 16-speed shifting, and sharp dual-pivot braking.
Aluminium frame
SENSAH Reflex 16-speed
Dual pivot calliper brakes
30mm alloy wheels
9.9kg
Get ready to ride with the SUNPEED TRITON — built for speed, agility, and pure road performance. Featuring a lightweight aluminium frame and a responsive 16-speed SENSAH Reflex drivetrain, it delivers smooth shifting and sharp handling.
With Z-STAR dual pivot brakes and durable 30mm alloy wheels, the TRITON is a lively, precise road bike for riders chasing miles, goals, and all-out fun.
Key highlights
- Lightweight road chassisAluminium frame and fork built for quick response and everyday pace.
- SENSAH Reflex shiftingSimple 2x8 setup for smooth road gearing and dependable shifting.
- Dual pivot brakingZ-STAR callipers deliver sharp, direct control on tarmac.
- Fast 30mm wheelsetDurable alloy wheels paired with 25C tyres for efficient road riding.
Frameset

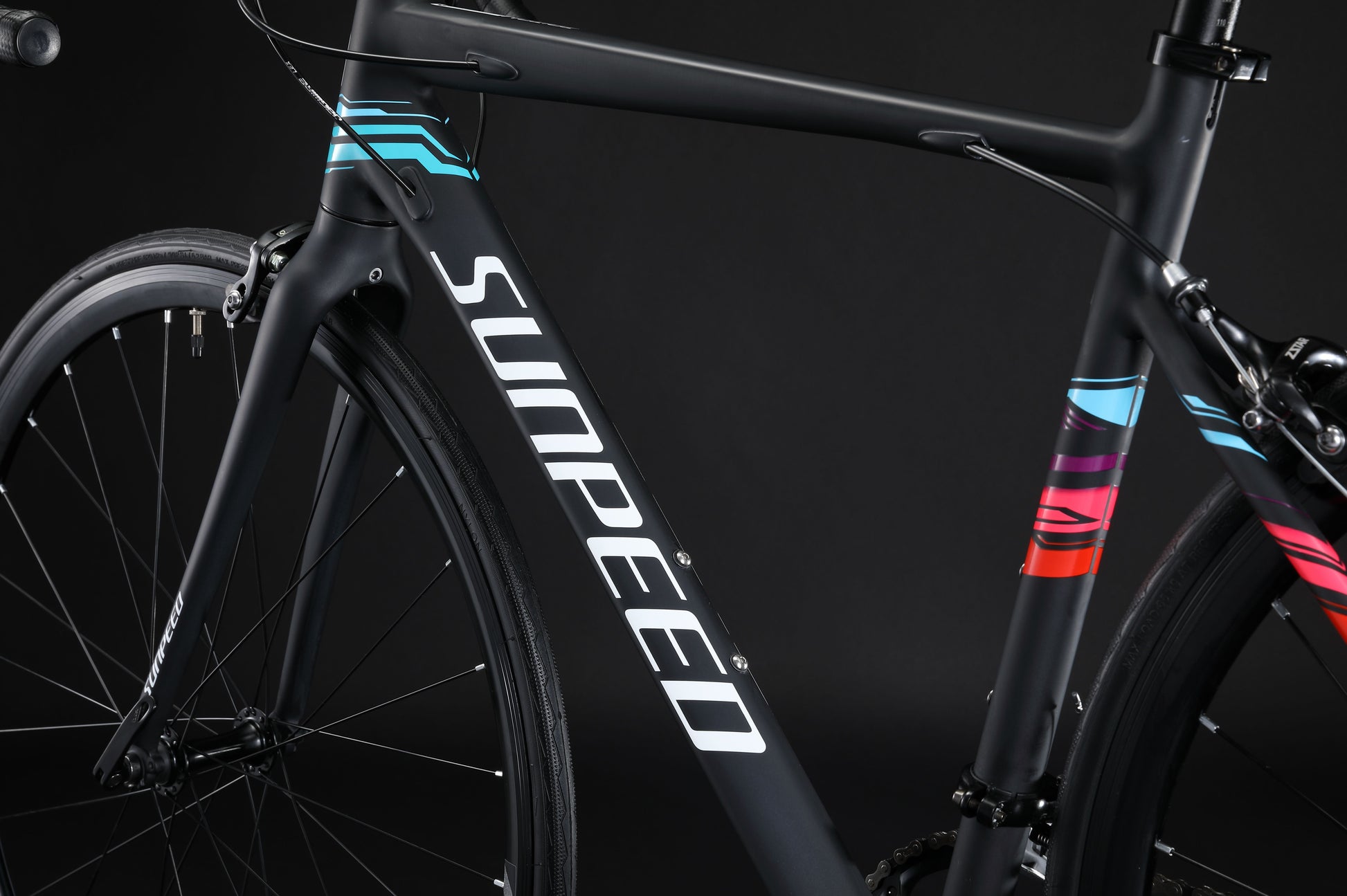

- FrameSUNPEED Triton aluminium frame 700C
- ForkSUNPEED Triton aluminium fork 700C
Wheelset

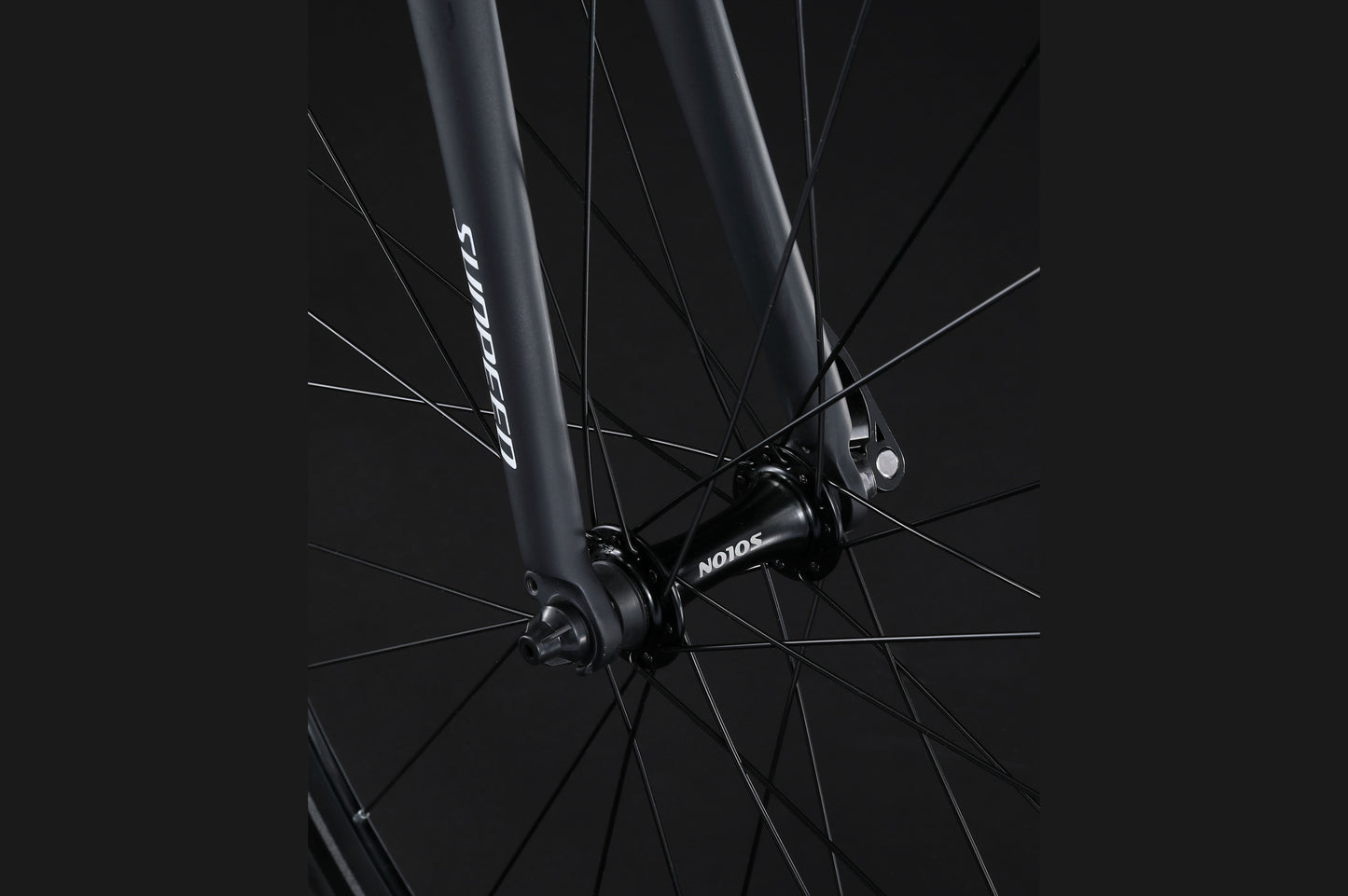

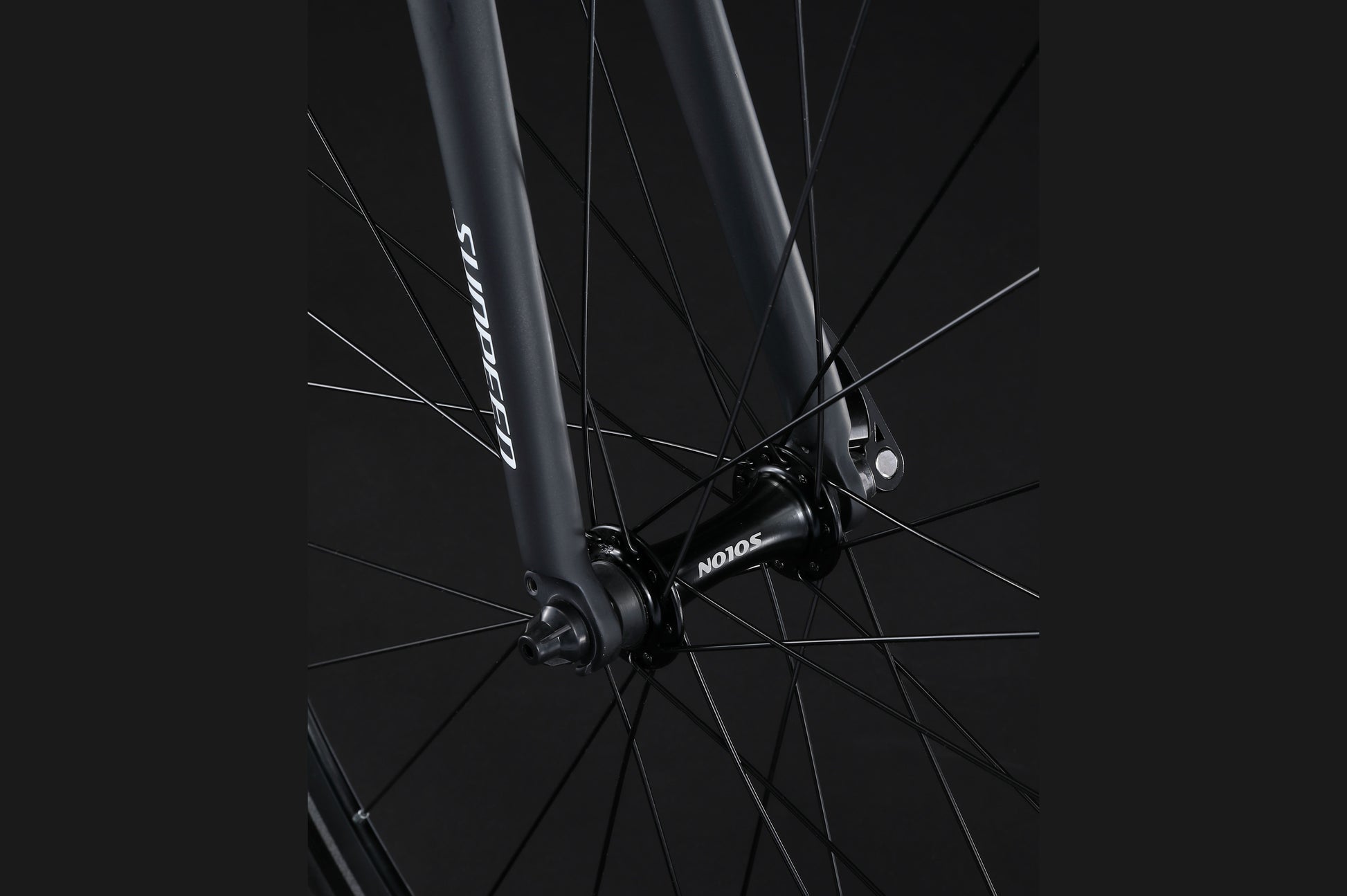

- Front hubSolon DH513F M9, 28H, aluminium, QR
- Rear hubSolon DH513R M10, 28H, aluminium, QR
- SpokesSLE Competition straight pull
- RimsAluminium wheelset, 30mm
- TyresChaoyang 700×25C, F/V

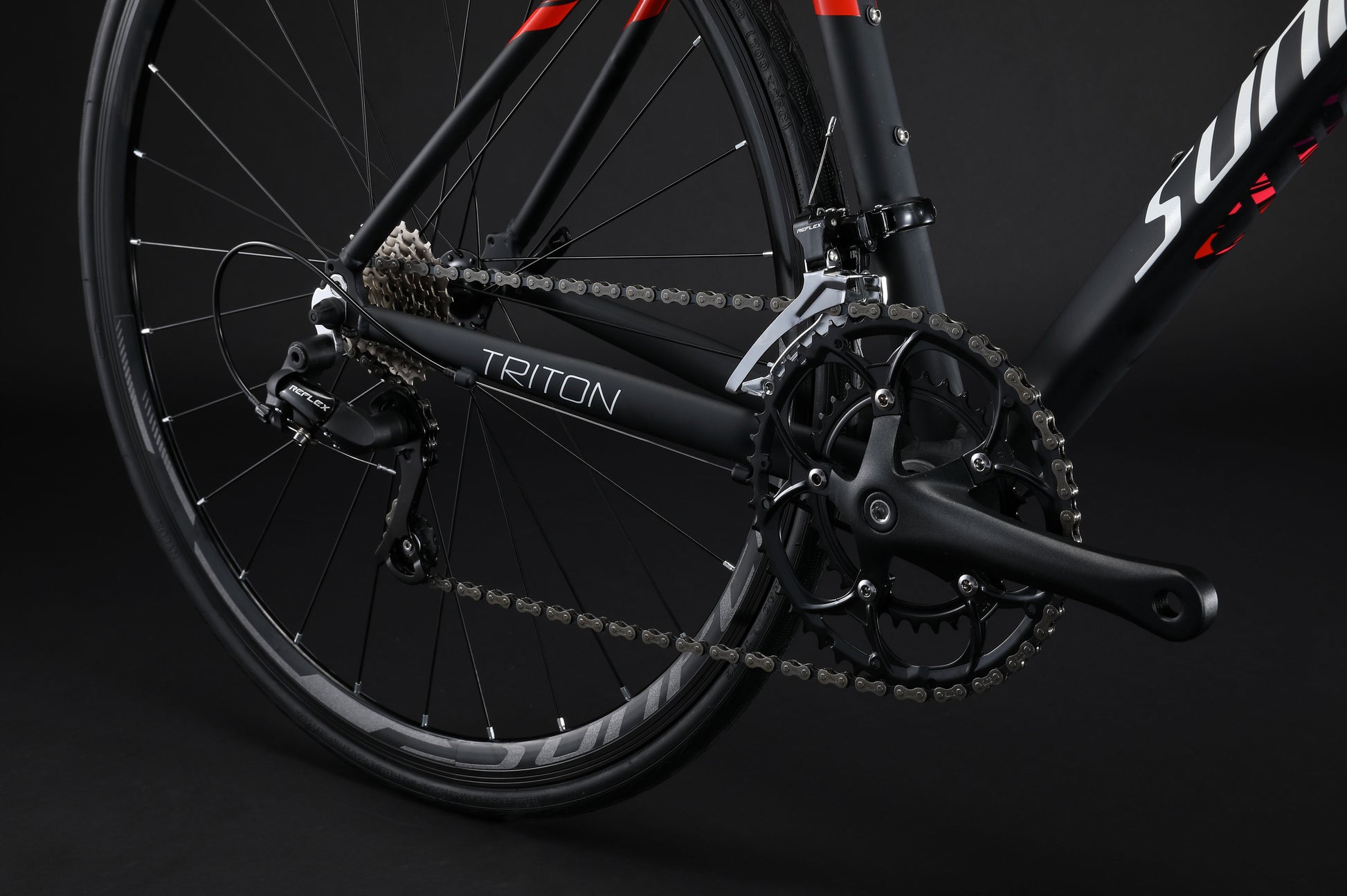

Drivetrain
- ShiftersSENSAH Reflex, 16-speed
- Front derailleurSENSAH Reflex, 16-speed

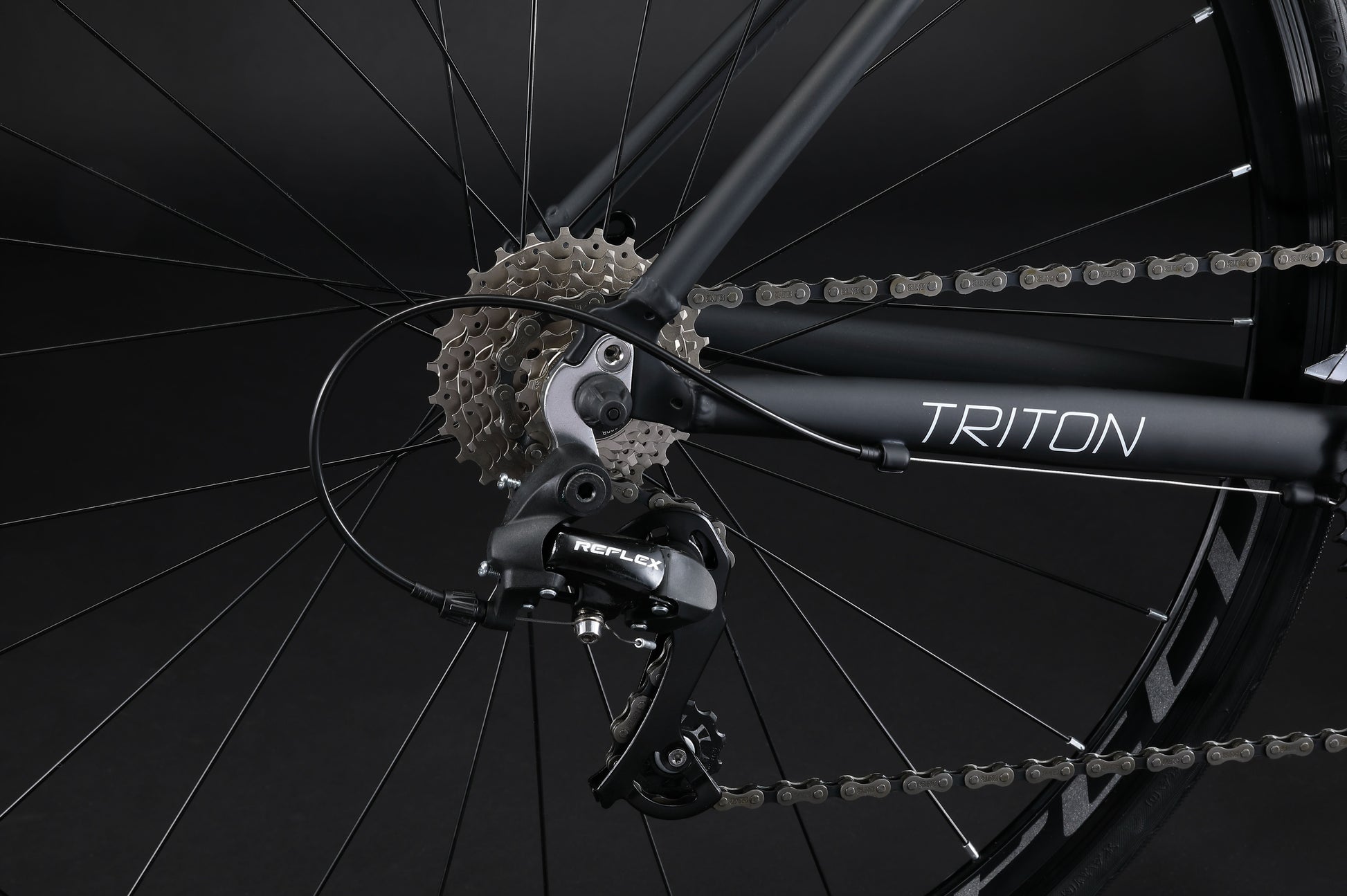

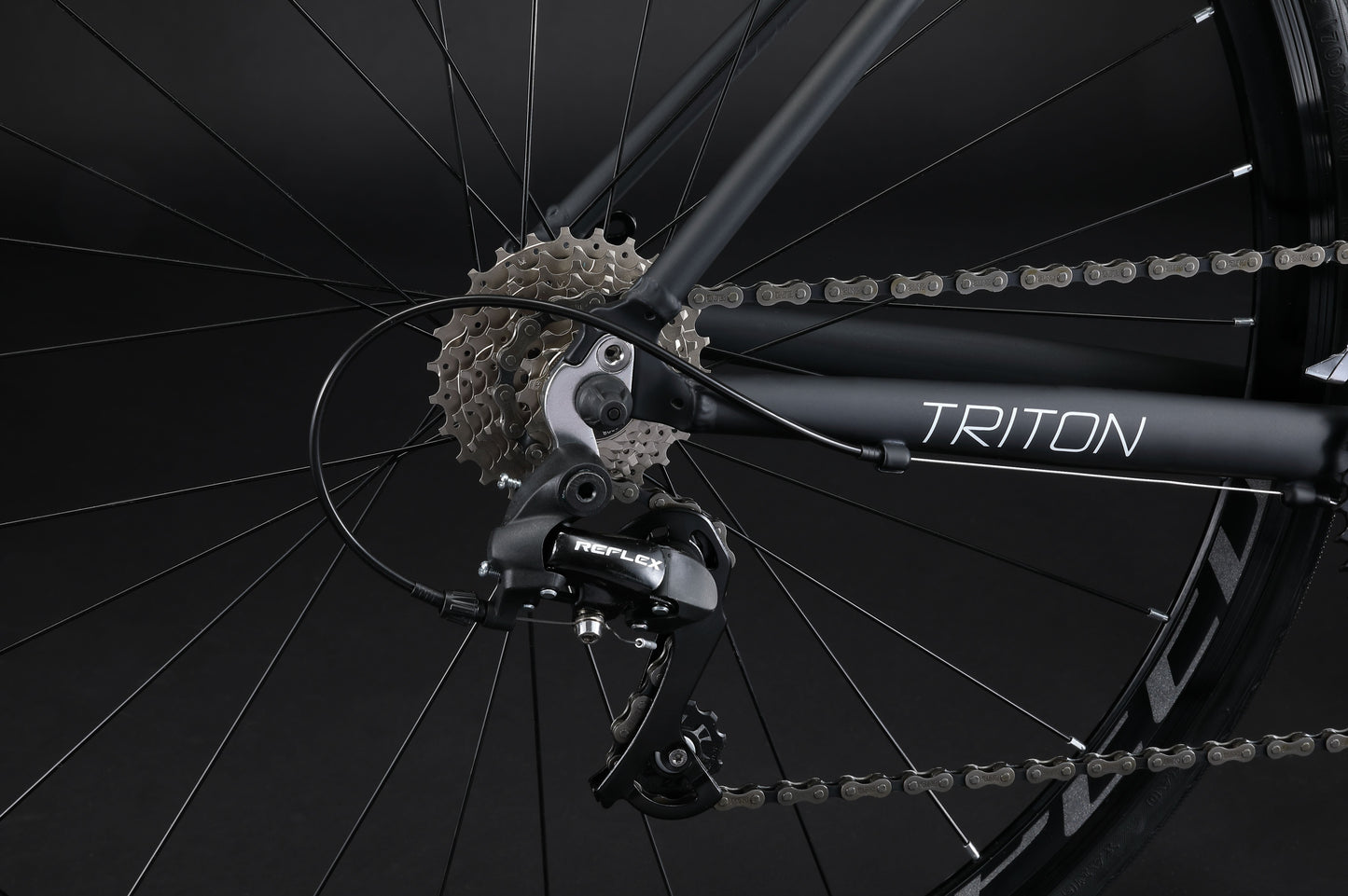

- Rear derailleurSENSAH Reflex, 16-speed
- CassetteSugek HG-5008, 11–28T, 16-speed
- CranksetProwheel RPE-421, 50/34T, 170L, aluminium
- Bottom bracketJingye B68
- ChainYBN S8
Brakes & Components

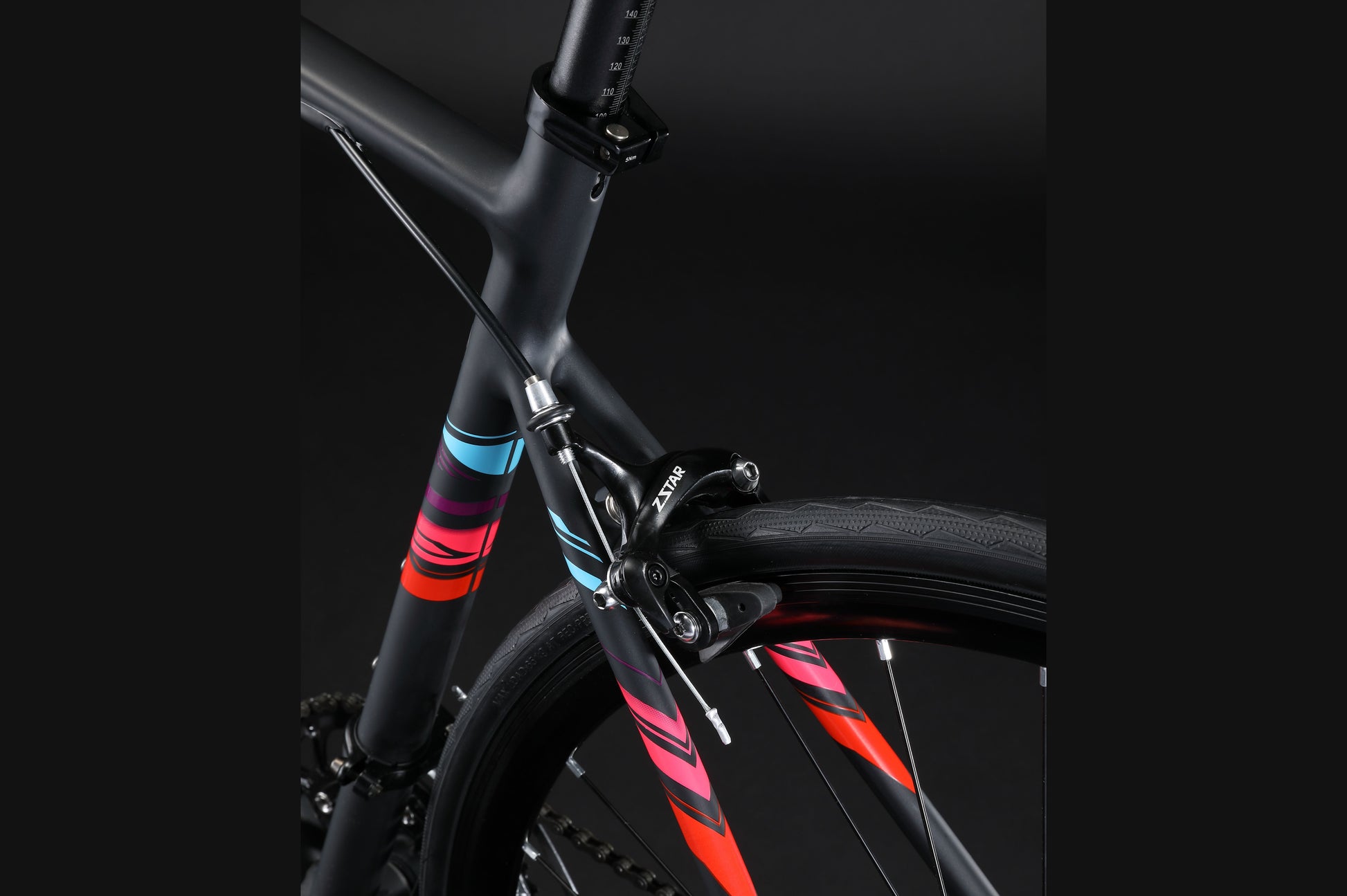

- BrakesZ-STAR R4.2 dual pivot calliper brake, aluminium (front & rear)
- Brake leversSENSAH Reflex
- Seat postSUNPEED XC20 aluminium post, 31.6
- Seat clampSUNPEED Mars aluminium, 34.9
- SaddleSUNPEED XC30
- HeadsetNeco sealed cartridge bearings
- StemSUNPEED XC20 aluminium

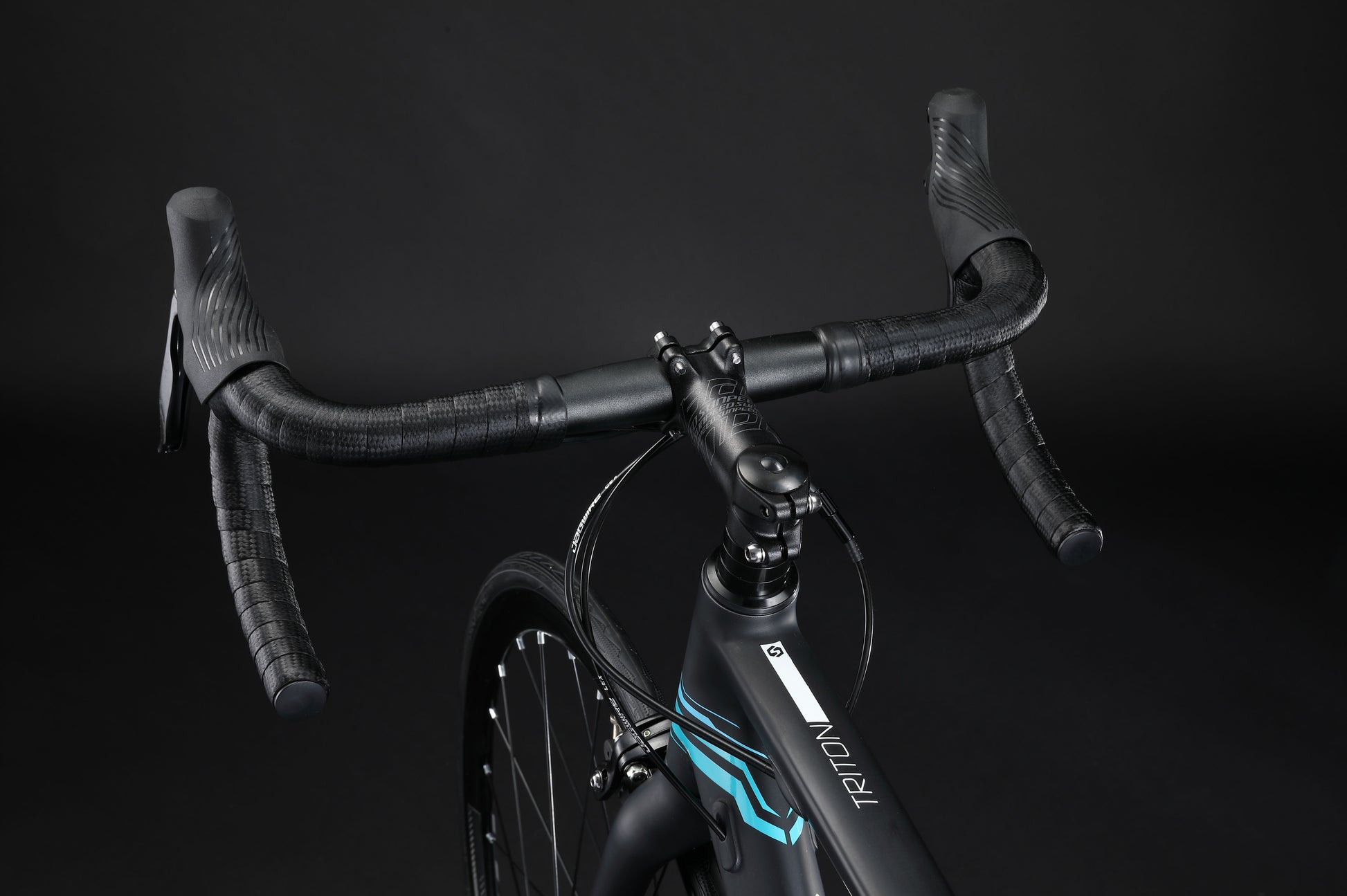

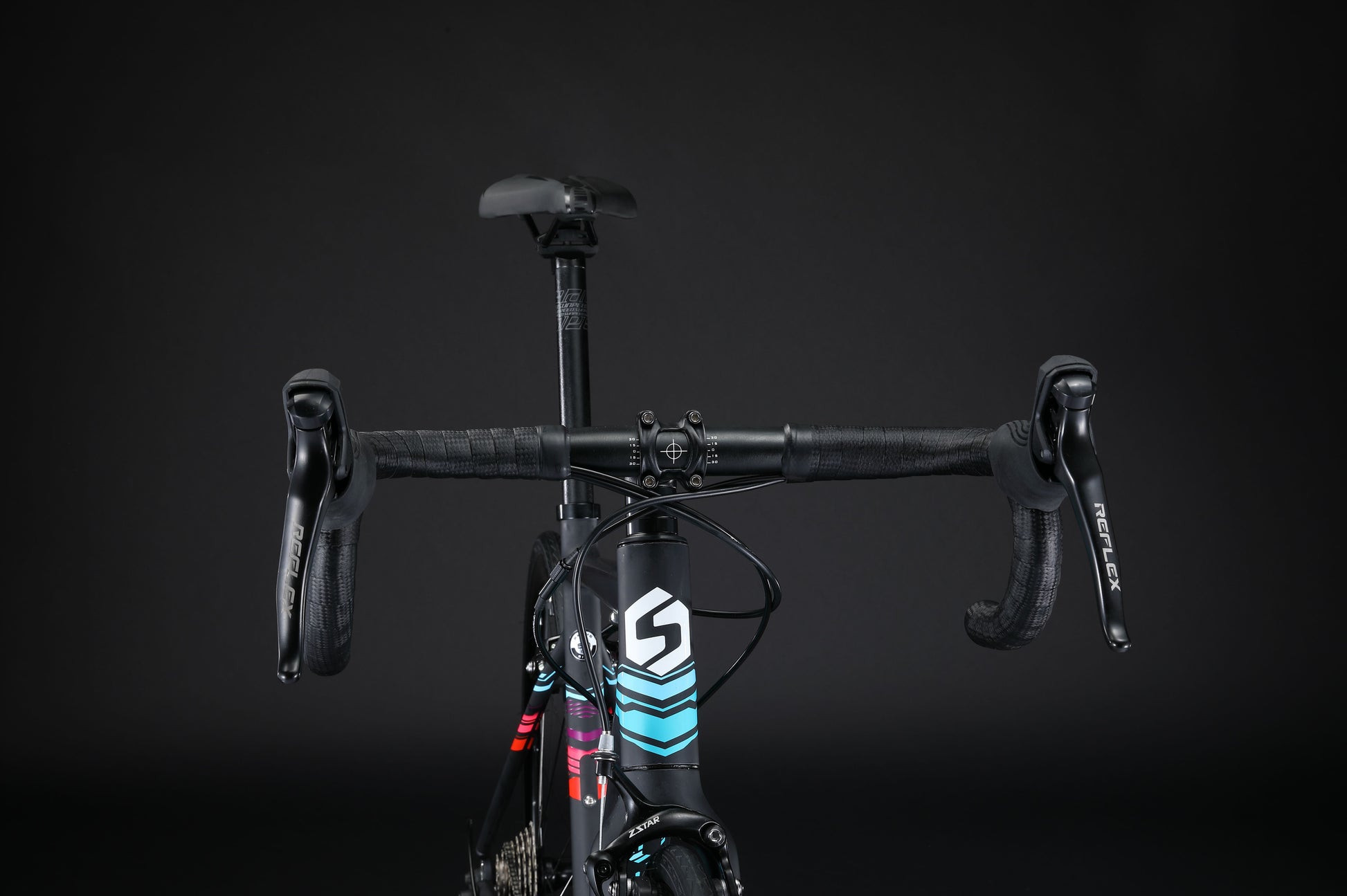

- HandlebarSvmonosm-217 aluminium, 420mm
- GripsODI lock on grip
- PedalsNeco aluminium
- Net weight9.9kg
- Gross weight13kg

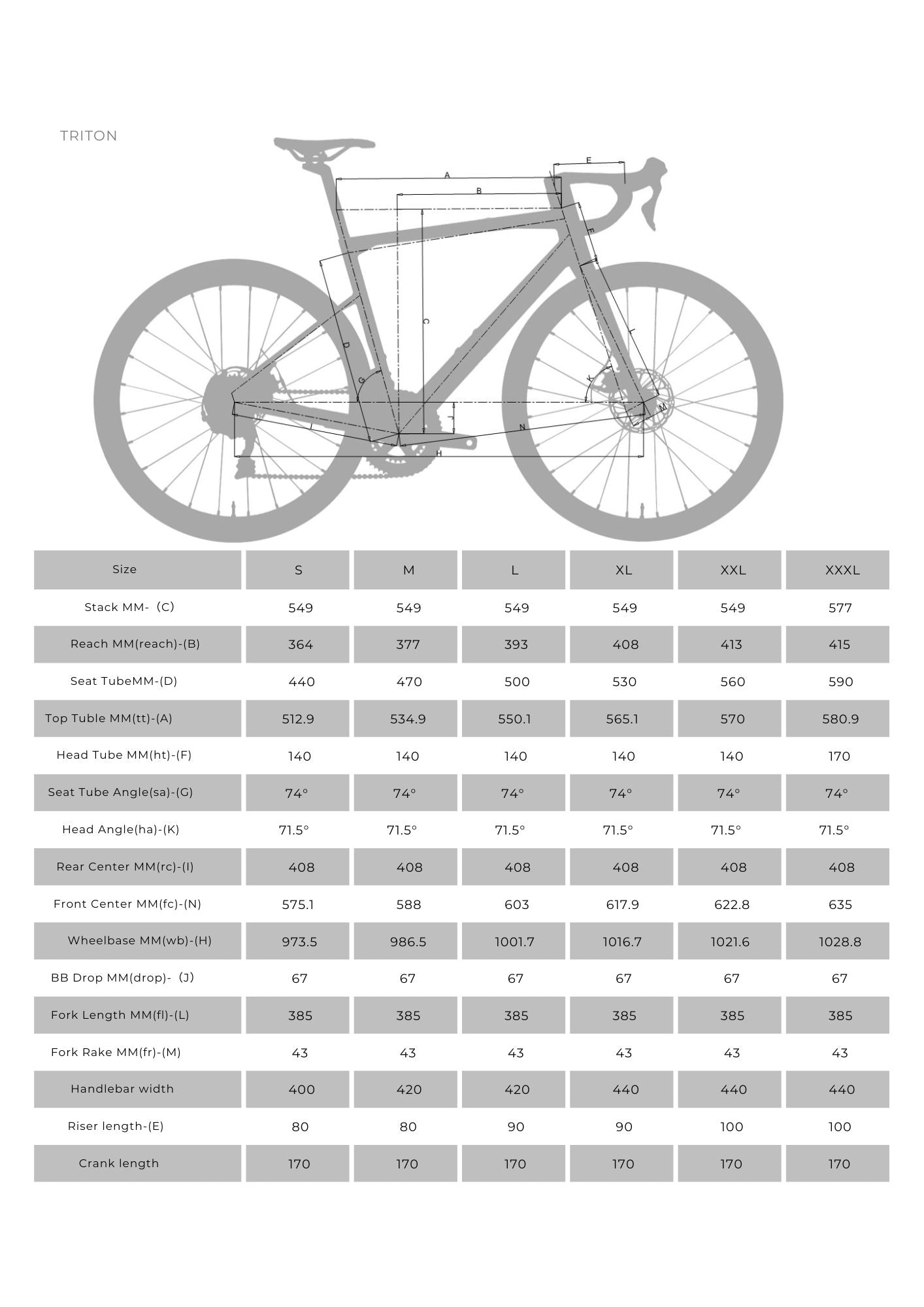

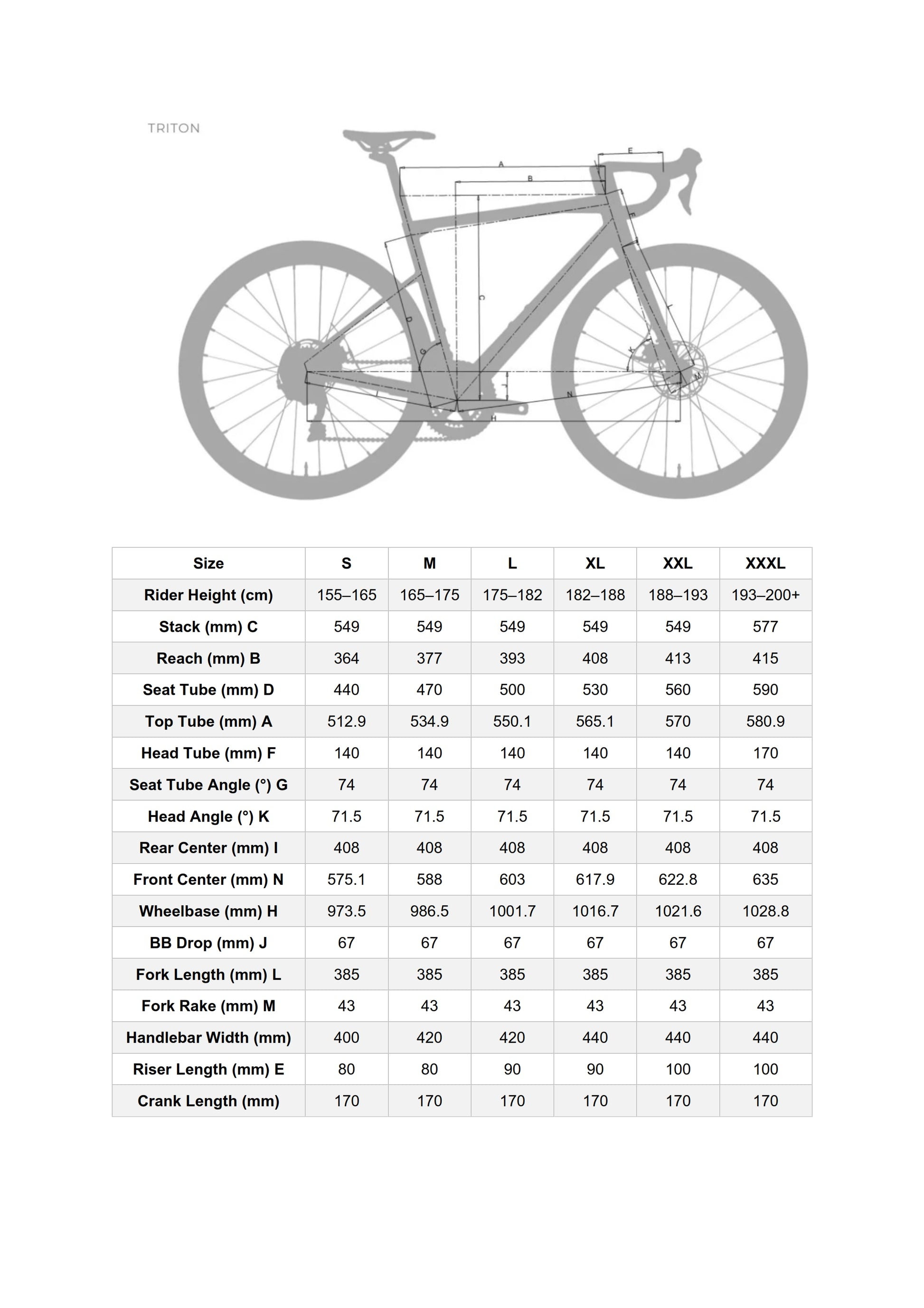

Geometry & sizing
All measurements are in mm unless stated otherwise. Angles are in degrees. Rider height is in cm.
| Spec | S | M | L | XL | XXL | XXXL |
|---|---|---|---|---|---|---|
| Recommended rider height (cm) | 155–165 | 165–175 | 175–182 | 182–188 | 188–193 | 193–200+ |
| Stack (C) | 549 | 549 | 549 | 549 | 549 | 577 |
| Reach (B) | 364 | 377 | 393 | 408 | 413 | 415 |
| Seat tube (D) | 440 | 470 | 500 | 530 | 560 | 590 |
| Top tube (A) | 512.9 | 534.9 | 550.1 | 565.1 | 570 | 580.9 |
| Head tube (F) | 140 | 140 | 140 | 140 | 140 | 170 |
| Seat tube angle (G) | 74° | 74° | 74° | 74° | 74° | 74° |
| Head angle (K) | 71.5° | 71.5° | 71.5° | 71.5° | 71.5° | 71.5° |
| Rear center (I) | 408 | 408 | 408 | 408 | 408 | 408 |
| Front center (N) | 575.1 | 588 | 603 | 617.9 | 622.8 | 635 |
| Wheelbase (H) | 973.5 | 986.5 | 1001.7 | 1016.7 | 1021.6 | 1028.8 |
| BB drop (J) | 67 | 67 | 67 | 67 | 67 | 67 |
| Fork length (L) | 385 | 385 | 385 | 385 | 385 | 385 |
| Fork rake (M) | 43 | 43 | 43 | 43 | 43 | 43 |
| Handlebar width | 400 | 420 | 420 | 440 | 440 | 440 |
| Riser length (E) | 80 | 80 | 90 | 90 | 100 | 100 |
| Crank length | 170 | 170 | 170 | 170 | 170 | 170 |
