Description
SUNPEED GALAXY SPORT
Speed, stability, and serious fun. Lightweight alloy frame, carbon fork, Tiagra 20-speed and hydraulic braking.
Ultralight alloy frame Carbon fork Shimano Tiagra 20-speed Hydraulic disc brakes ANV A35 wheelset 9.7kg
Meet the SUNPEED GALAXY SPORT - built for speed, stability, and serious fun. With a lightweight aluminium frame, carbon fork, Shimano Tiagra 20-speed drivetrain, and powerful hydraulic brakes, it is made to perform across fast training rides and weekend miles.
With an ANV A35 wheelset and 28C tyres, it delivers efficiency, reliability, and clean style in one sleek package.
Key highlights
-
Fast alloy platformEfficient, responsive ride feel with internal cable routing.
-
Carbon fork controlSmoother front-end feel and confident handling.
-
Tiagra 2x10 shiftingSmooth gear changes with a wide usable range.
-
Hydraulic brakingConsistent stopping power in wet or dry conditions.
Specifications
Frameset
- FrameSUNPEED Galaxy ultralight aluminium 700C, internal cable routing, axle Q12
- ForkSUNPEED Galaxy carbon 700C, internal cable routing, axle Q12
Wheelset
- Front hubANV Q12, 24H axle, 4 sealed bearings
- Rear hubANV Q12, 24H axle, 4 sealed bearings
- SpokesSLE Competition straight pull
- RimsANV A35 aluminium disc wheelset
- TyresCST CRD-02 700x28C, black wall
Drivetrain
- ShiftersShimano Tiagra R4720, 20-speed
- Front derailleurShimano Tiagra FD-R4700F, 2-speed
- Rear derailleurShimano Tiagra RD-4700R, 10-speed
- CassetteSunshine CS-HG 11-32T, 10-speed
- CranksetSenicx integrated alloy PR6-B1 50/34T, 10-speed
- Bottom bracketSenicx BB-BSA24R
- ChainKMC X10
Brakes & components
- BrakesShimano Tiagra R4770 hydraulic (front & rear)
- Brake leversShimano Tiagra R4720
- Brake discsZ8, 160mm, 6 screws
- SeatpostSUNPEED Galaxy aluminium, 350mm
- Seat clampSUNPEED Galaxy aluminium
- SaddleSelle Royal saddle
- HeadsetCompletely hidden sealed cartridge bearings
- StemANV alloy integrated
- HandlebarANV alloy integrated, hidden cable routing
- GripsODI ultralight lock on grip
- PedalsWellgo DU aluminium pedals
- Net weight9.7kg

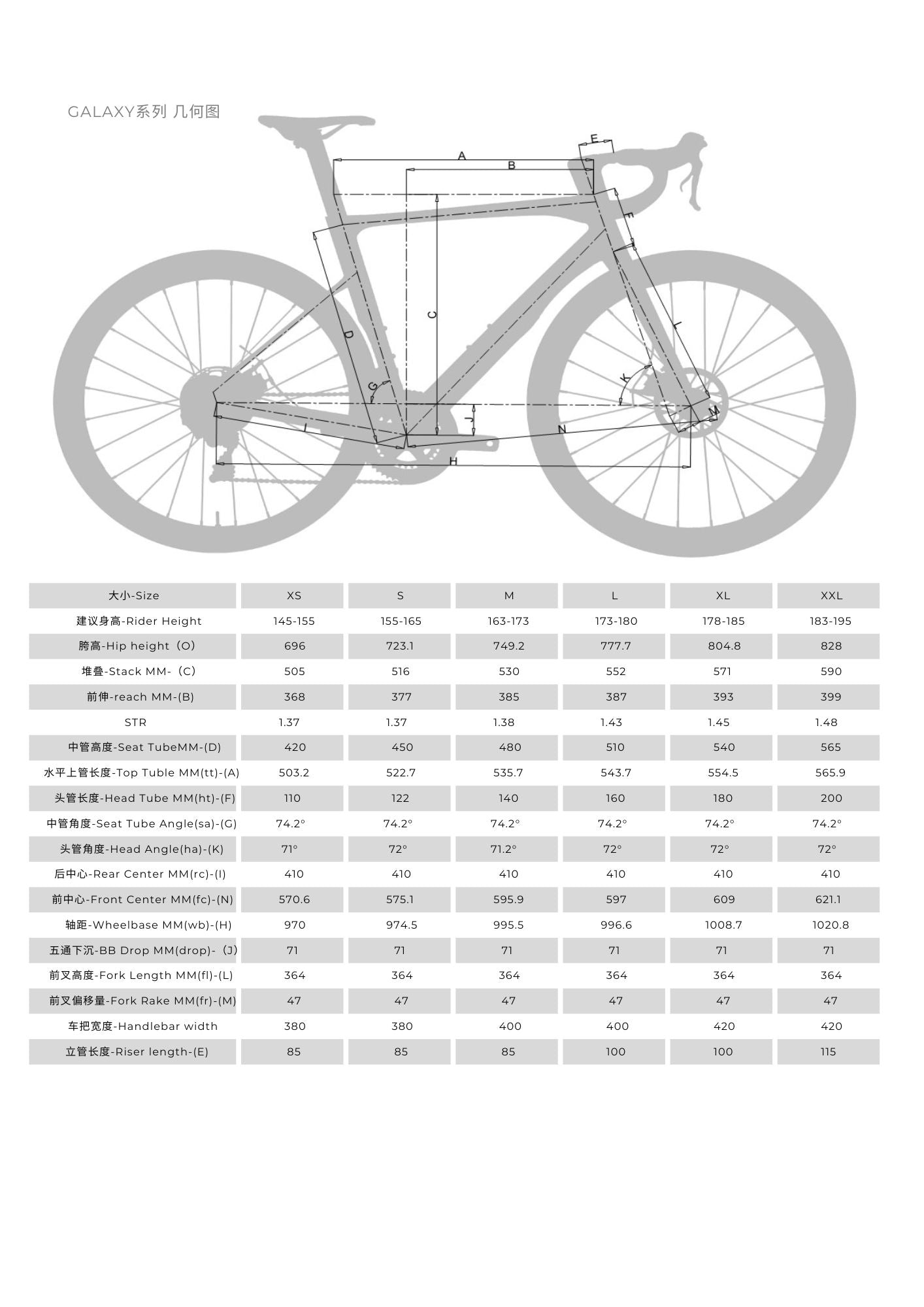

Geometry & sizing
All measurements in mm unless stated otherwise.
| Spec | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Recommended rider height (cm) | 145-155 | 155-165 | 163-173 | 173-180 | 178-185 | 183-195 |
| Hip height (O) | 696 | 723.1 | 749.2 | 777.7 | 804.8 | 828 |
| Stack (C) | 505 | 516 | 530 | 552 | 571 | 590 |
| Reach (B) | 368 | 377 | 385 | 387 | 393 | 399 |
| STR | 1.37 | 1.37 | 1.38 | 1.43 | 1.45 | 1.48 |
| Seat tube (D) | 420 | 450 | 480 | 510 | 540 | 565 |
| Top tube (A) | 503.2 | 522.7 | 535.7 | 543.7 | 554.5 | 565.9 |
| Head tube (F) | 110 | 122 | 140 | 160 | 180 | 200 |
| Seat tube angle (G) | 74.2° | 74.2° | 74.2° | 74.2° | 74.2° | 74.2° |
| Head angle (K) | 71° | 72° | 71.2° | 72° | 72° | 72° |
| Rear center (I) | 410 | 410 | 410 | 410 | 410 | 410 |
| Front center (N) | 570.6 | 575.1 | 595.9 | 597 | 609 | 621.1 |
| Wheelbase (H) | 970 | 974.5 | 995.5 | 996.6 | 1008.7 | 1020.8 |
| BB drop (J) | 71 | 71 | 71 | 71 | 71 | 71 |
| Fork length (L) | 364 | 364 | 364 | 364 | 364 | 364 |
| Fork rake (M) | 47 | 47 | 47 | 47 | 47 | 47 |
| Handlebar width | 380 | 380 | 400 | 400 | 420 | 420 |
| Riser length (E) | 85 | 85 | 85 | 100 | 100 | 115 |
Tip: If you are between sizes, we generally recommend sizing down for a sportier fit.
```
