Description

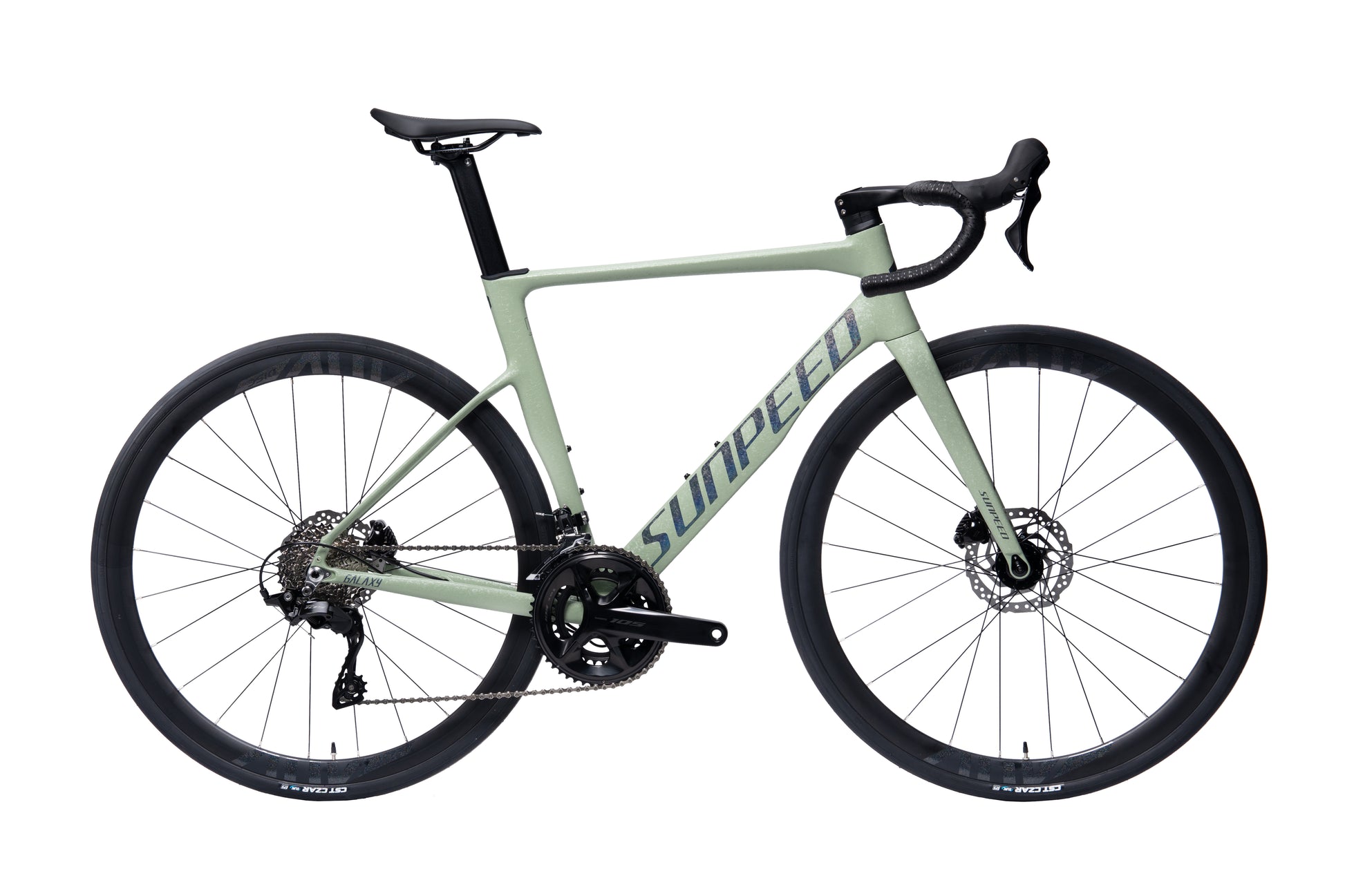

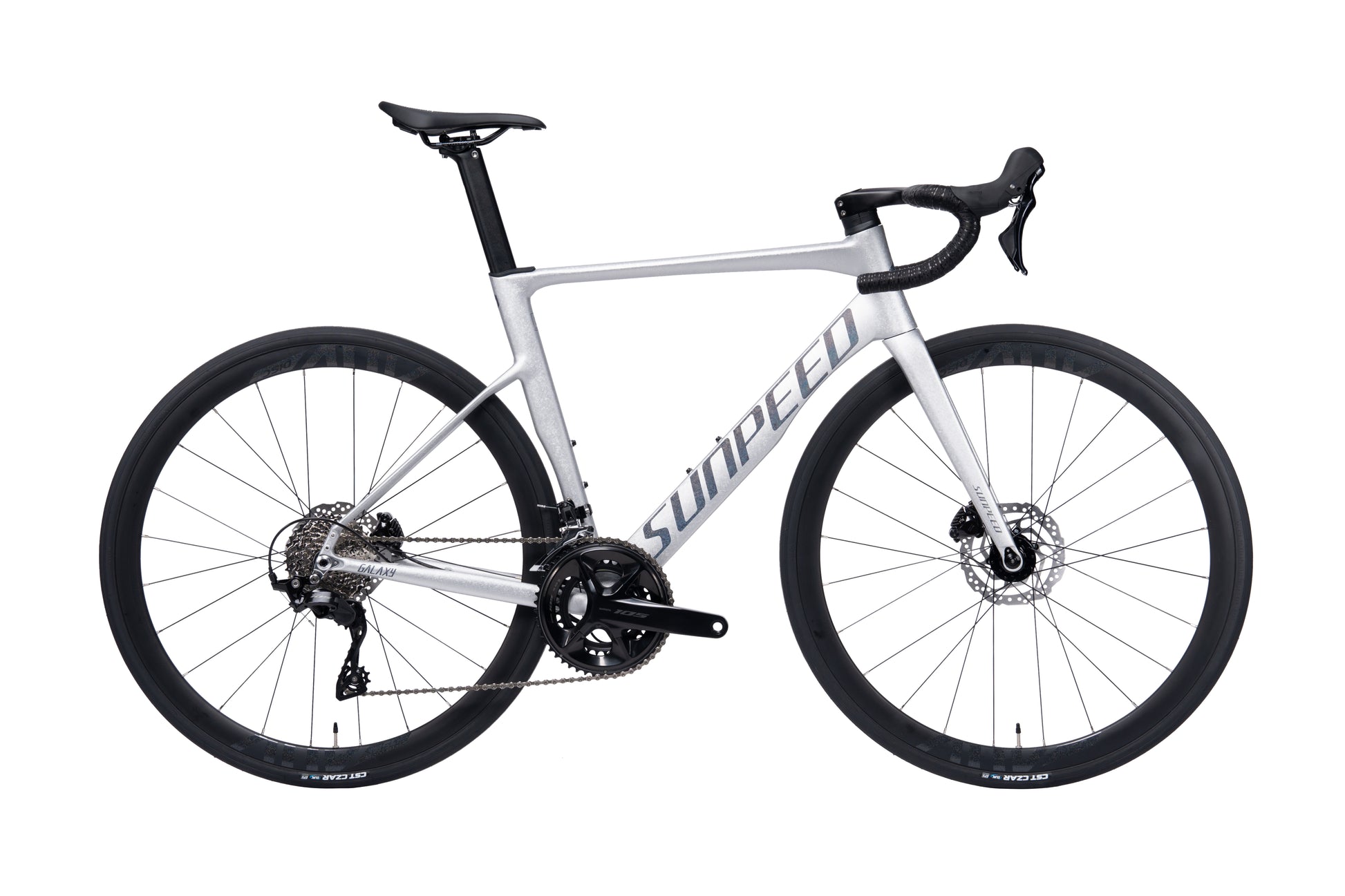

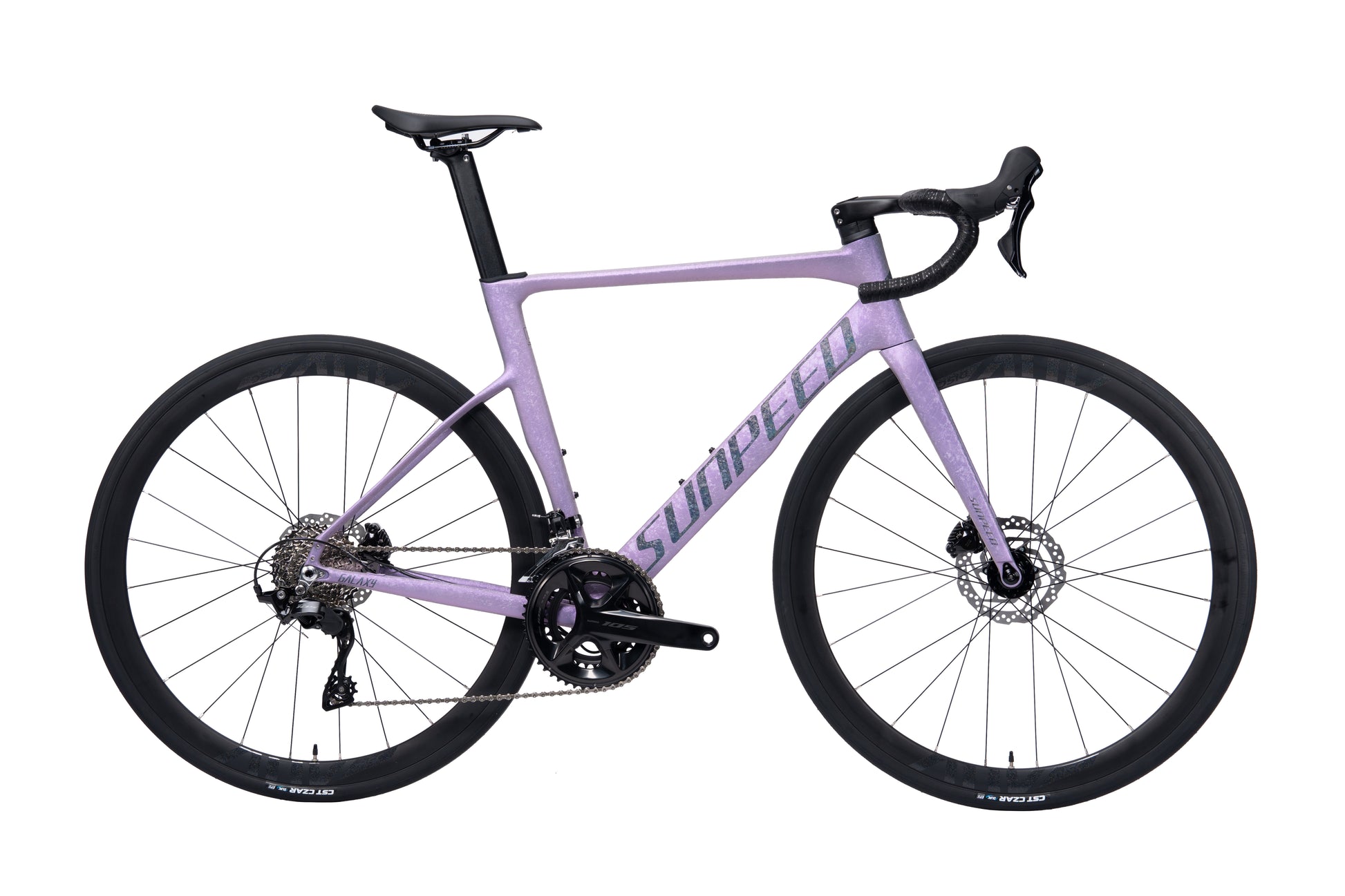

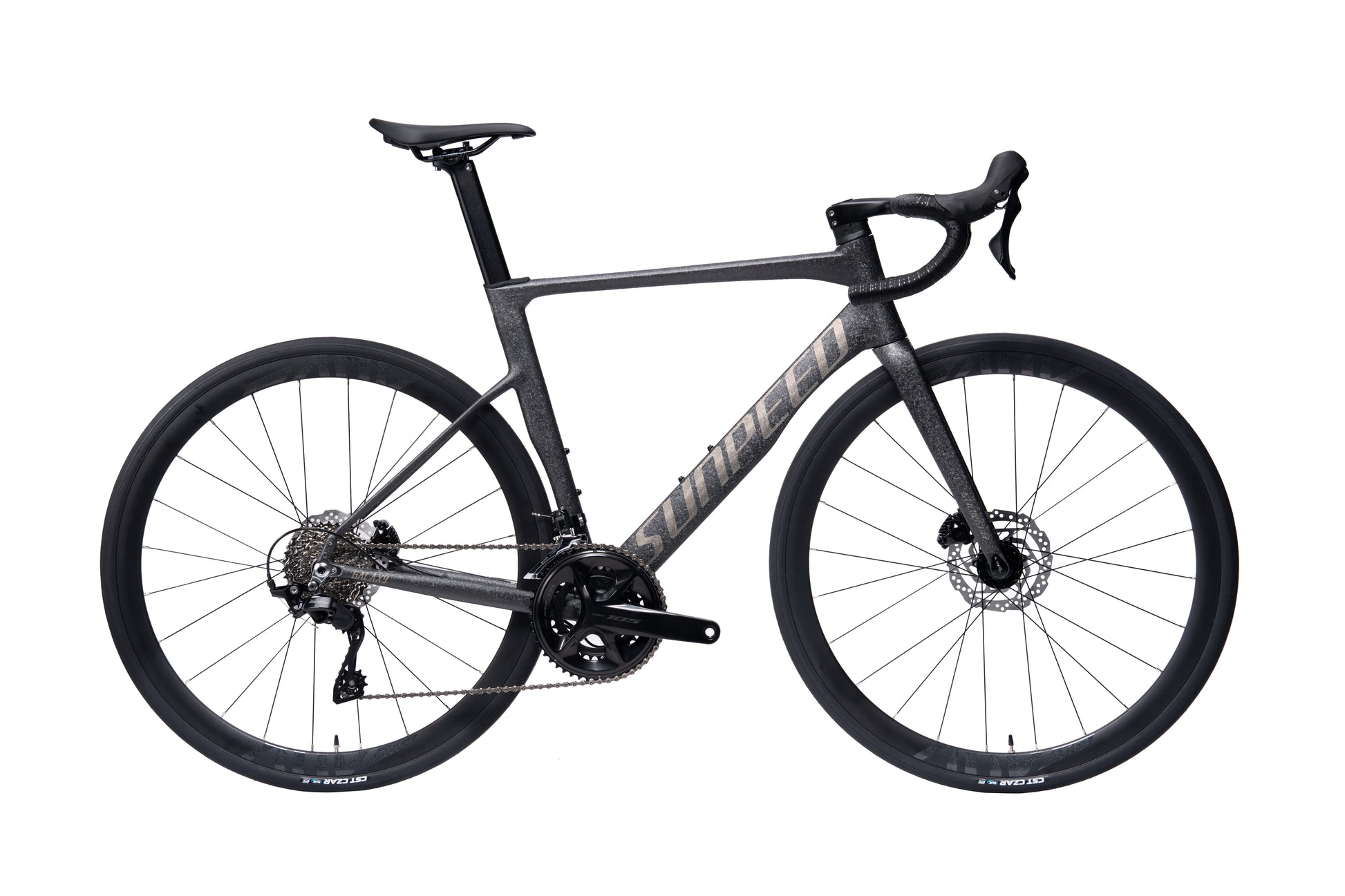

2026 GALAXY Aero Road Bike - Shimano 105
A fast, lightweight aluminium aero road bike with a carbon fork, Shimano 105 12-speed drivetrain, and clean internal cable integration.
The 2026 SUNPEED GALAXY Aero Road Bike is built for riders who want speed, style, and everyday performance without overcomplication. Its ultralight aluminium frame uses internal cable routing for a clean aero look, while the carbon fork improves front-end response and comfort.
Shimano 105 12-speed shifting gives smooth, reliable performance across climbs, flats, and fast group rides. Paired with ANV A35 alloy wheels, foldable 28C tyres, and hydraulic disc brakes, the Galaxy is a strong all-round road bike for training, commuting, and weekend miles.
- Aero alloy platformUltralight aluminium frame with internal cable routing and Q12 axle.
- Shimano 105 performance12-speed mechanical drivetrain for precise and dependable shifting.
- Carbon fork controlResponsive handling with improved comfort over rougher roads.

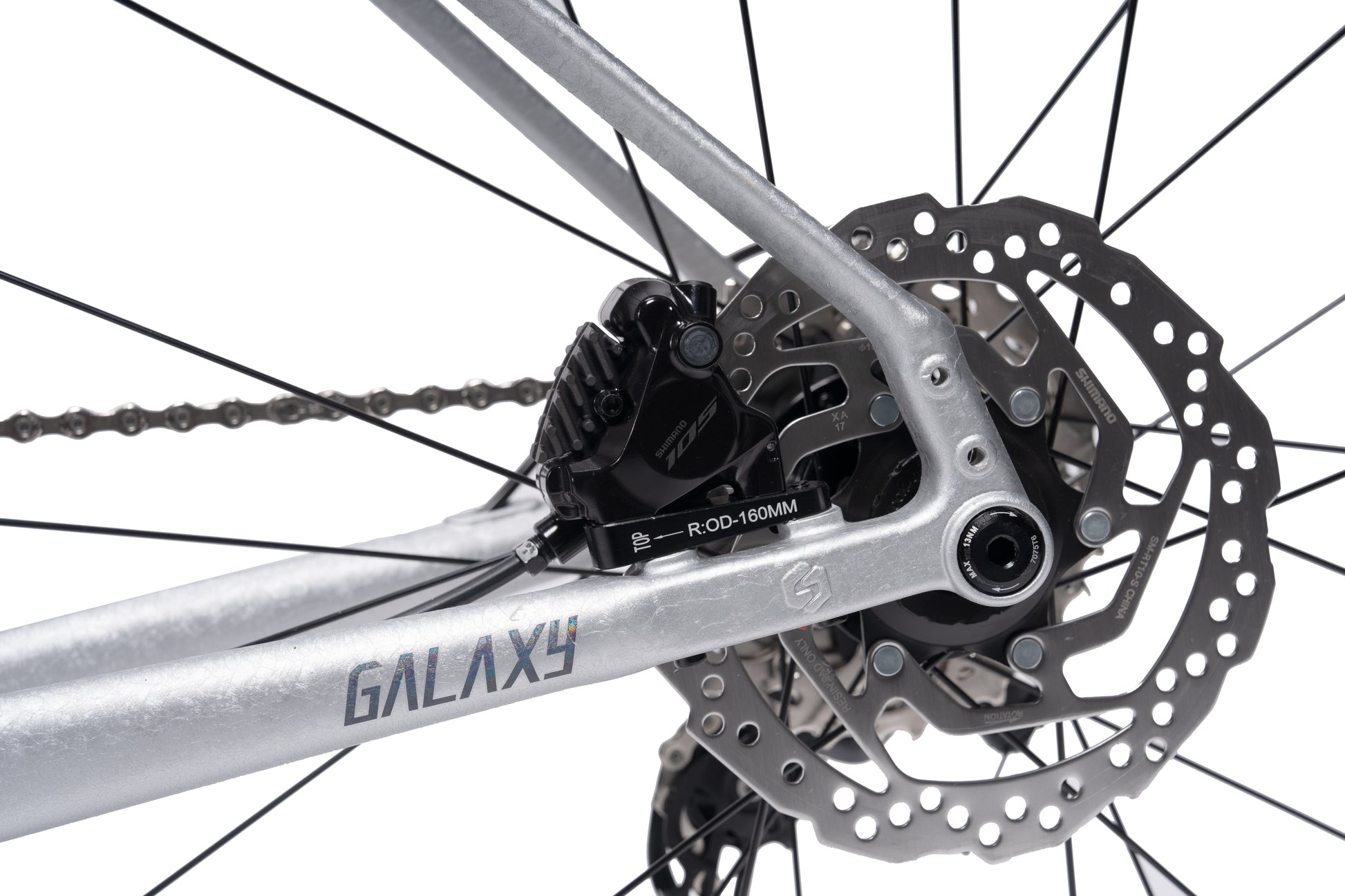

- Hydraulic brakingShimano 105 hydraulic brakes with 160mm Center Lock rotors.
Frameset
- FrameGalaxy ultralight aluminium, internal cable routing, axle Q12
- ForkSUNPEED Galaxy carbon 700C, internal cable routing, axle Q12
Wheelset
- HubANV Q12, 24H axle, 4 sealed bearings
- SpokesXinda spokes
- RimsANV A35 aluminium disc wheelset
- TyresCST C-1406 700×28C DK60 EPS foldable
Drivetrain
- ShiftersShimano 105 R7120, 24-speed

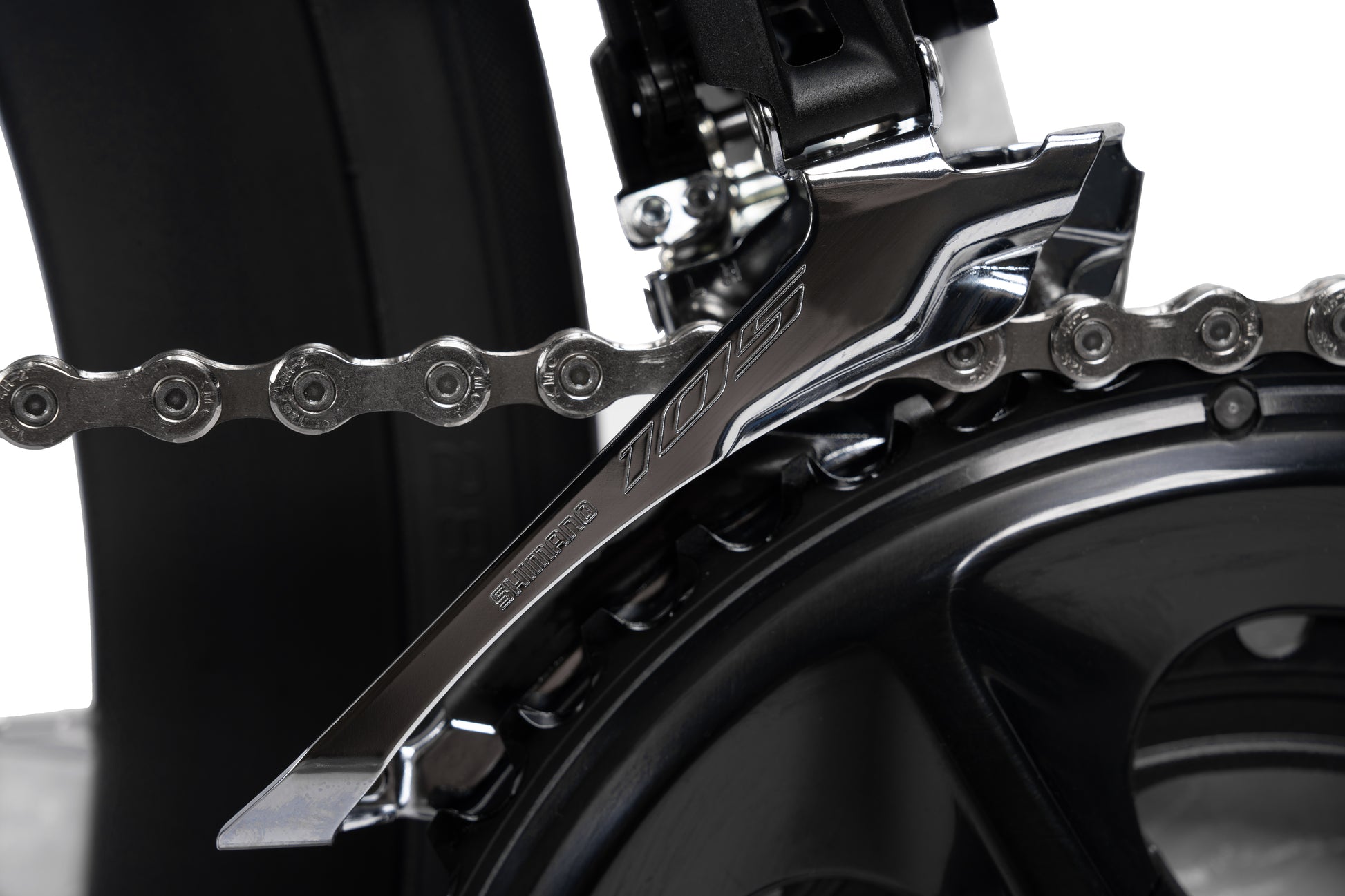

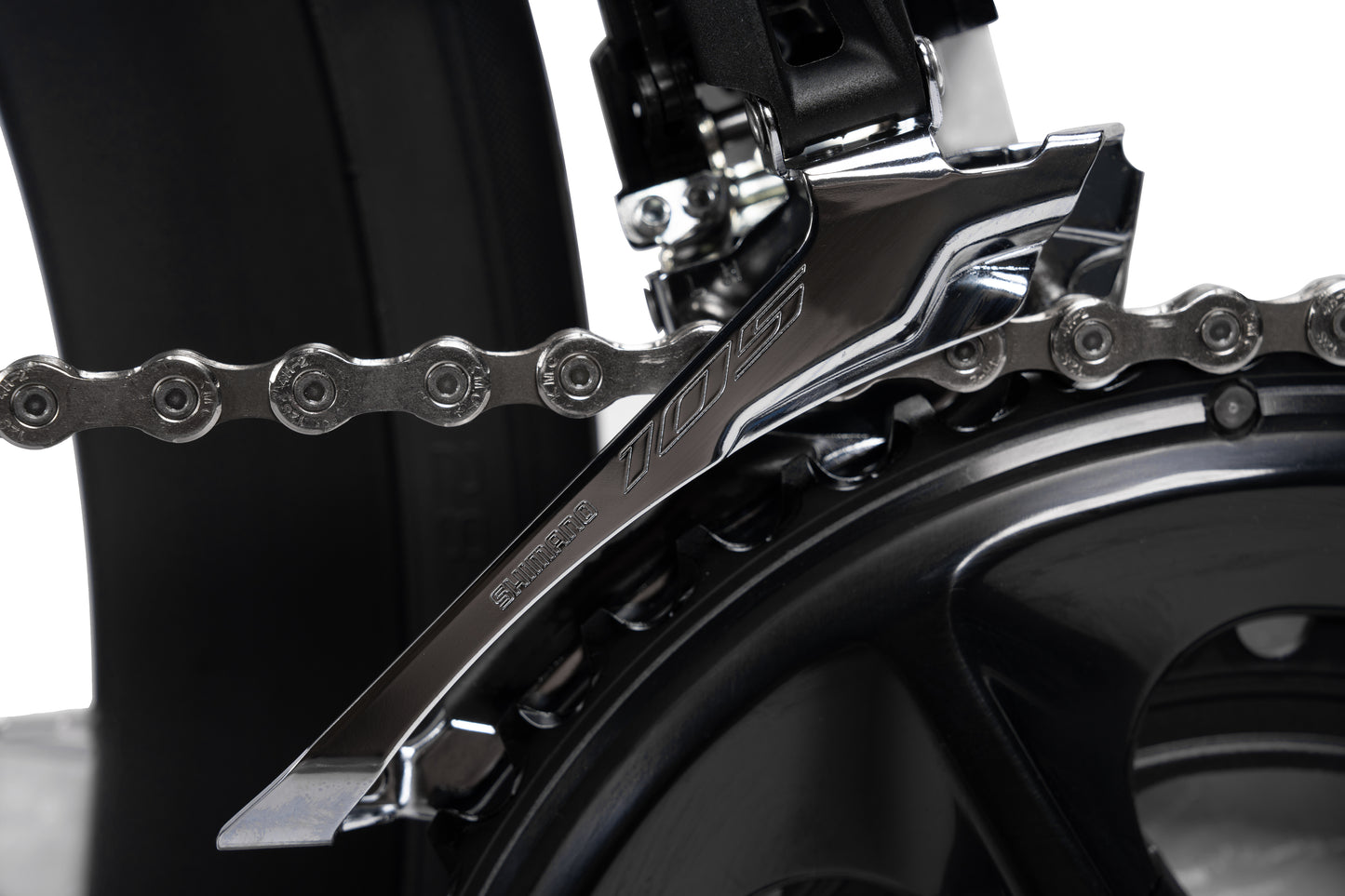

- Front derailleurShimano 105 R7100, 2-speed

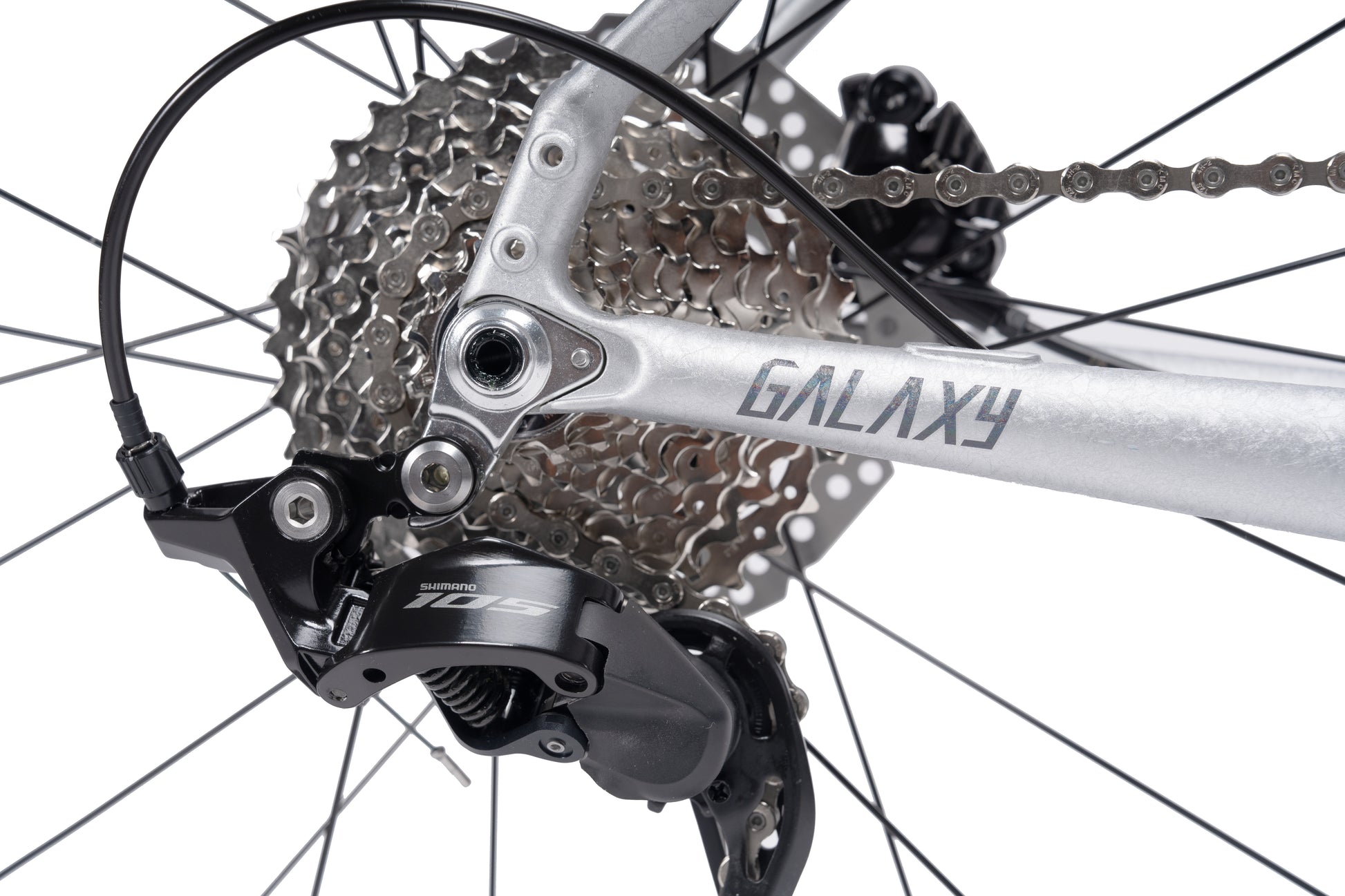

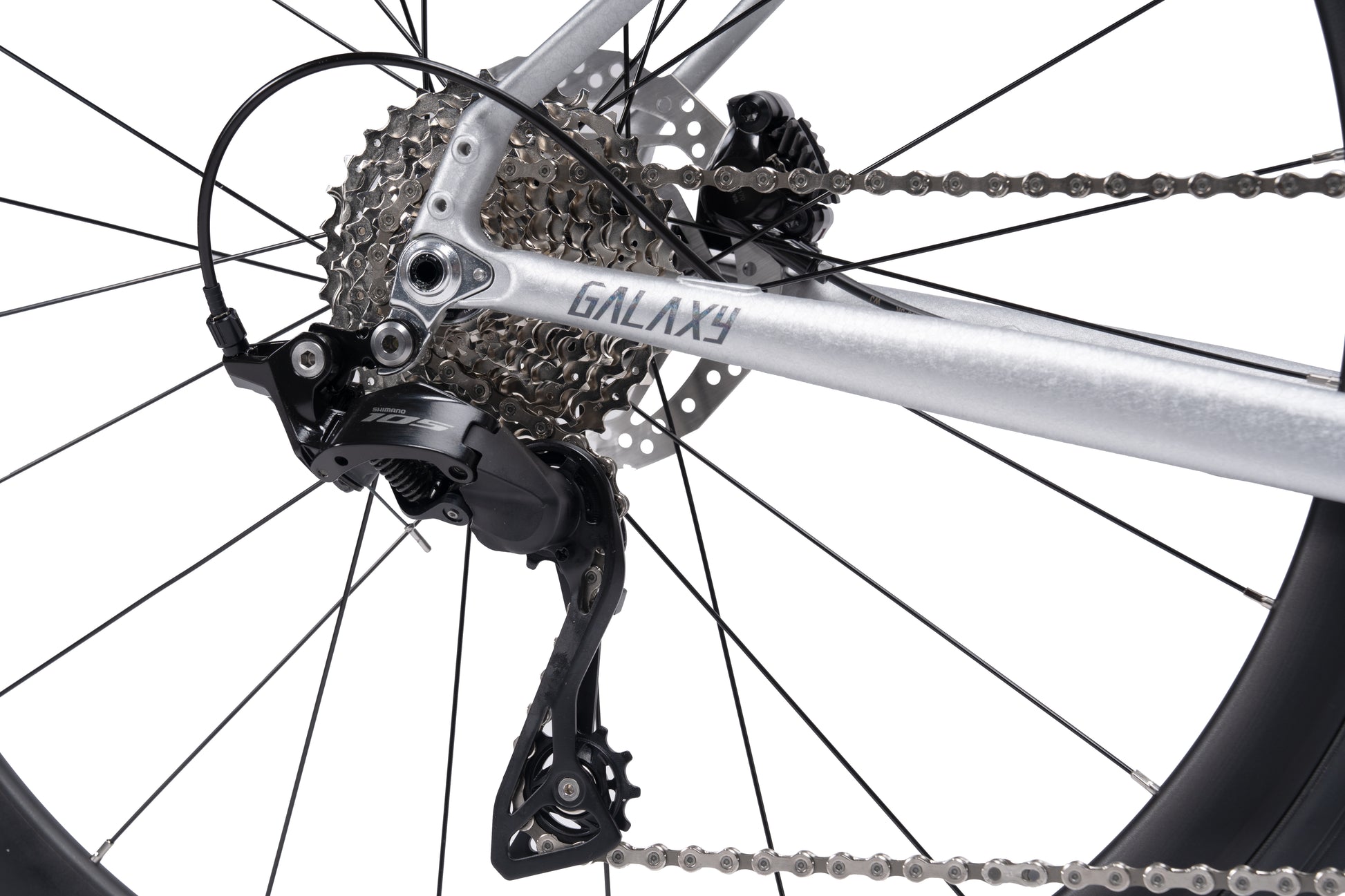

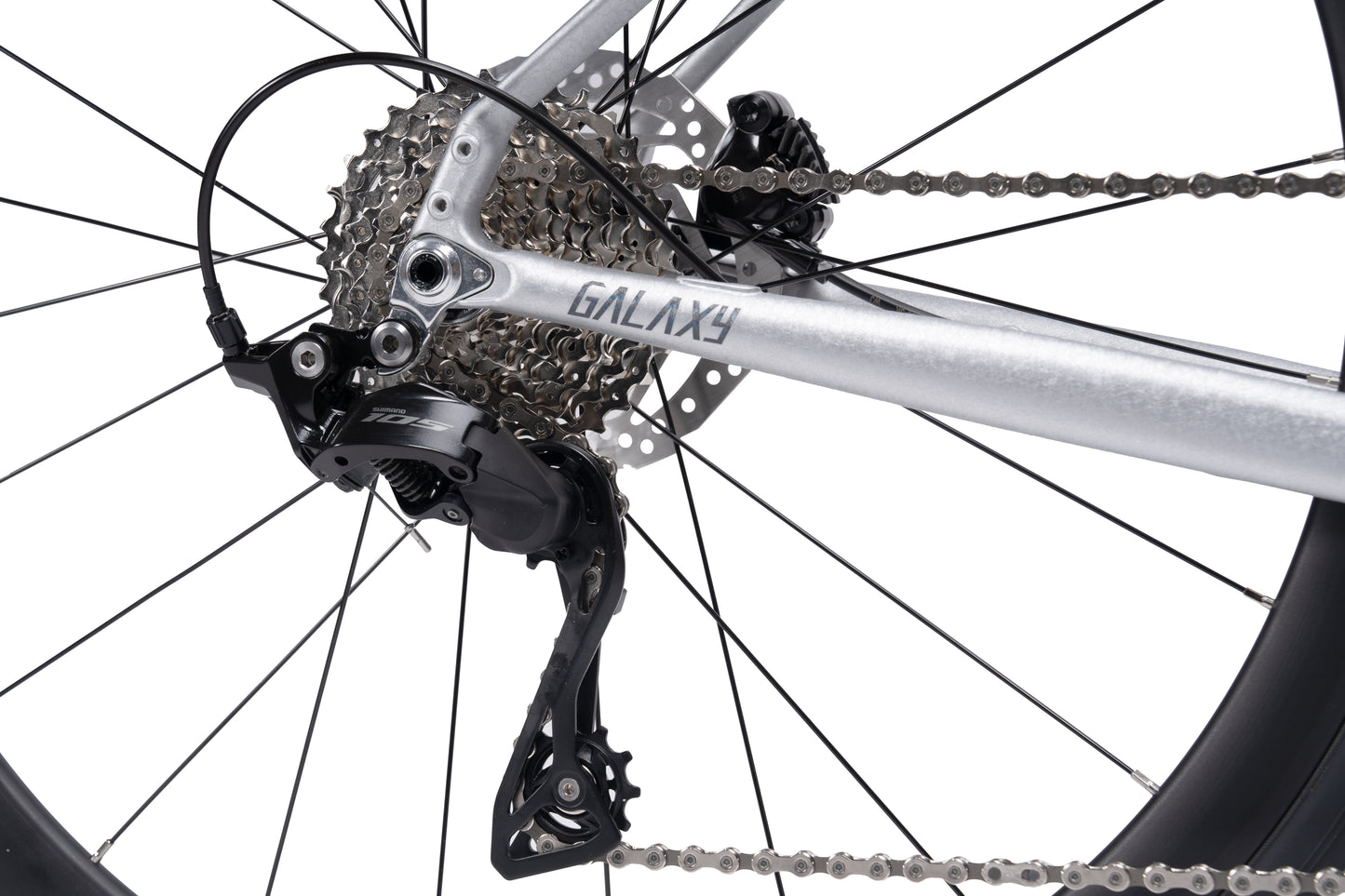

- Rear derailleurShimano 105 R7100, 12-speed
- CassetteShimano 105 R7101, 11/34T, 12-speed

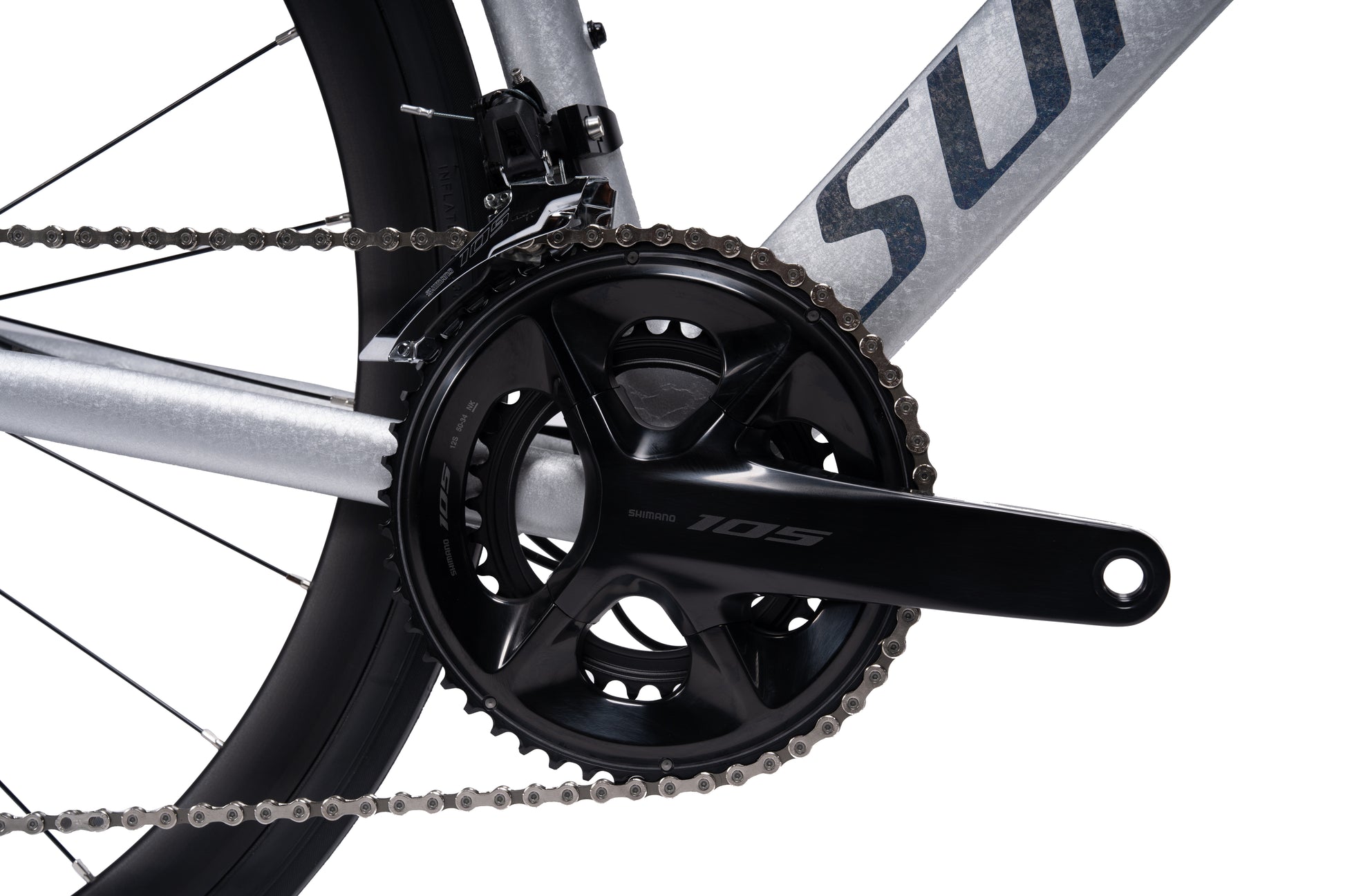

- CranksetShimano 105 R7100, 50/34T, 12-speed
- Bottom bracketSenicx BB-BSA24R
- ChainKMC CN12
Brakes & Components

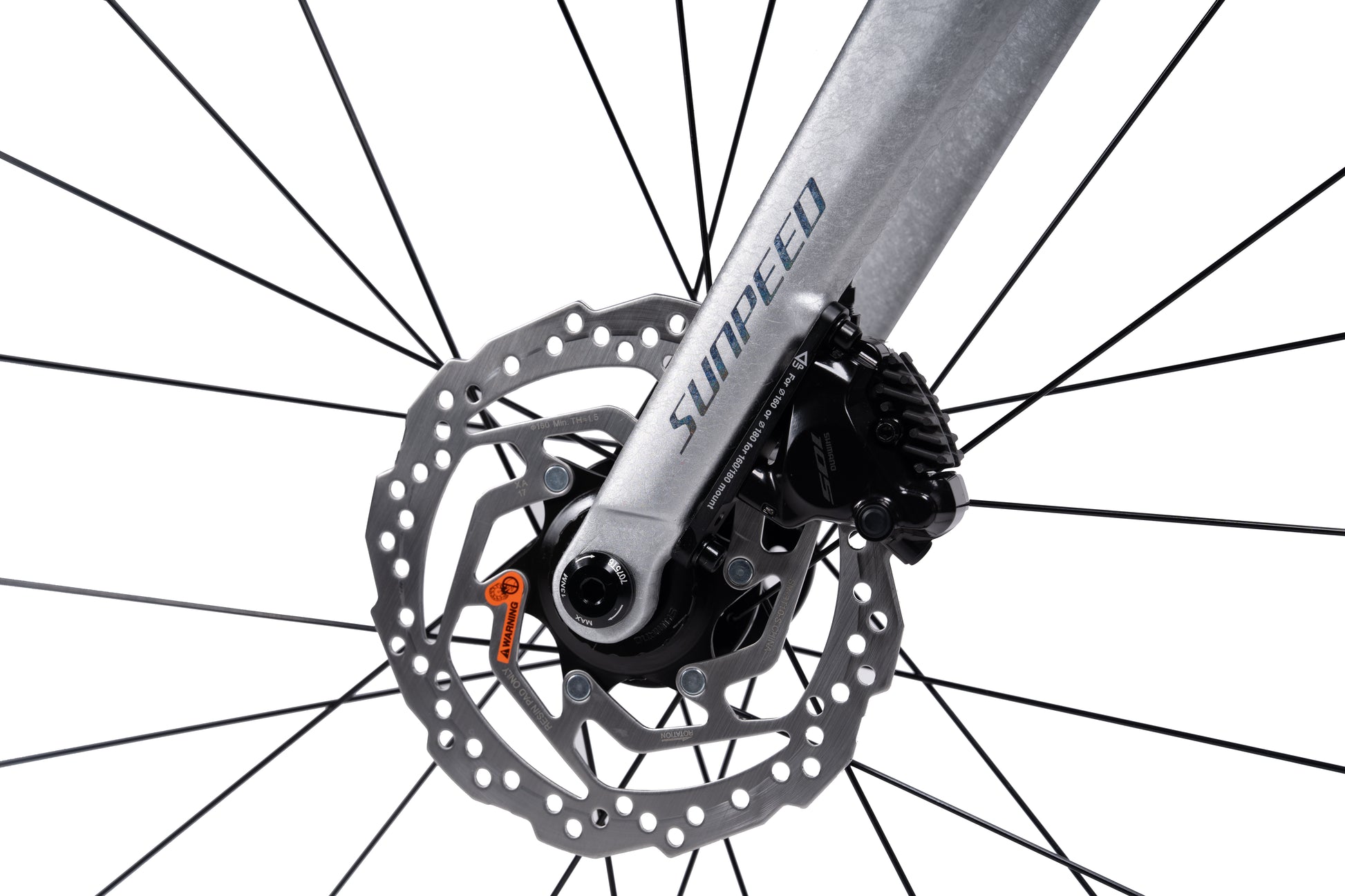

- BrakesShimano 105 R7120 hydraulic disc, front & rear

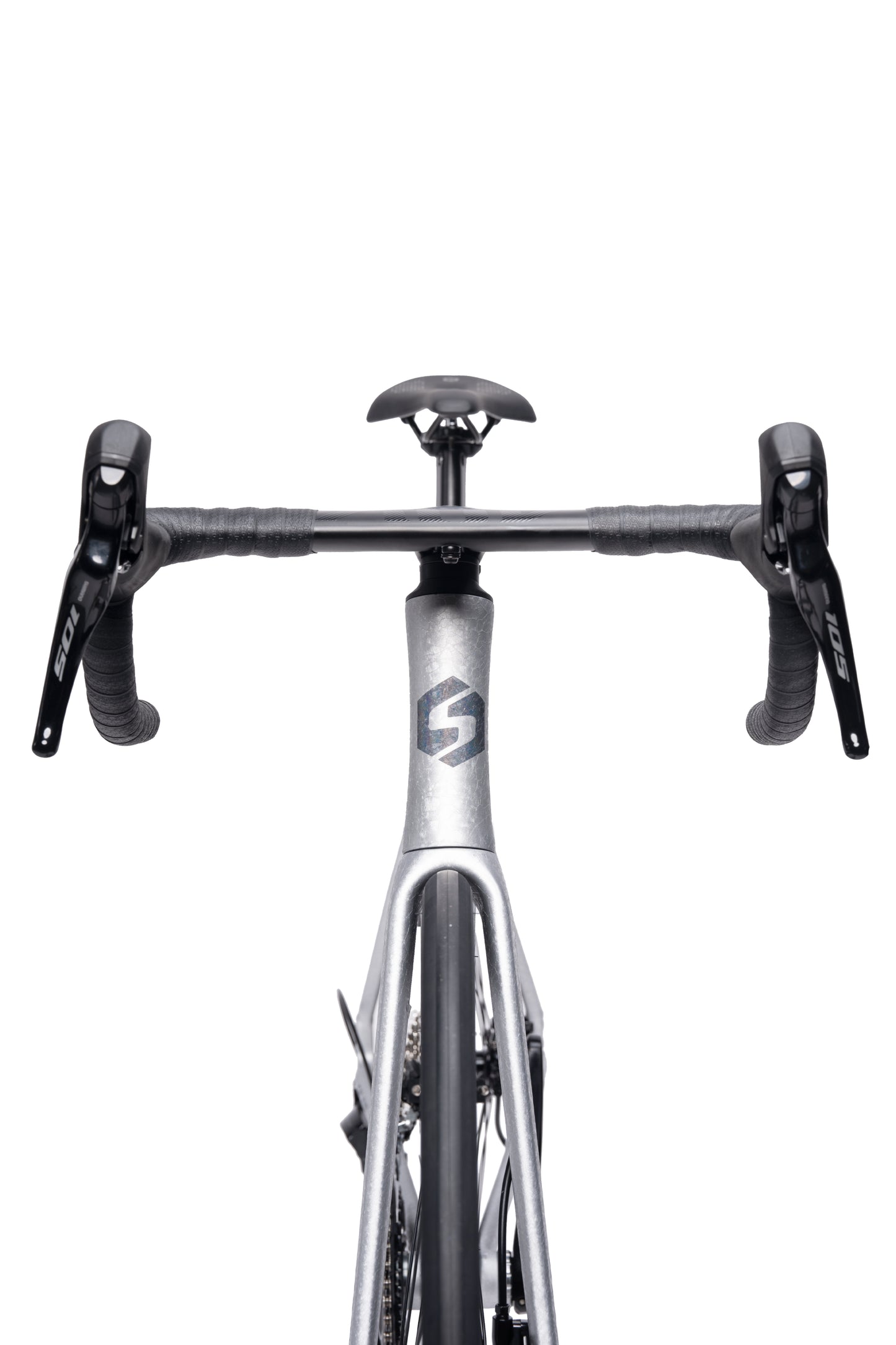

- Brake leversShimano 105 R7120
- Brake discShimano RT-10 Center Lock, 160mm
- SeatpostSUNPEED Galaxy aluminium aero
- Seat clampSUNPEED Galaxy aluminium hidden
- SaddleANV saddle
- HeadsetCompletely hidden sealed cartridge bearings

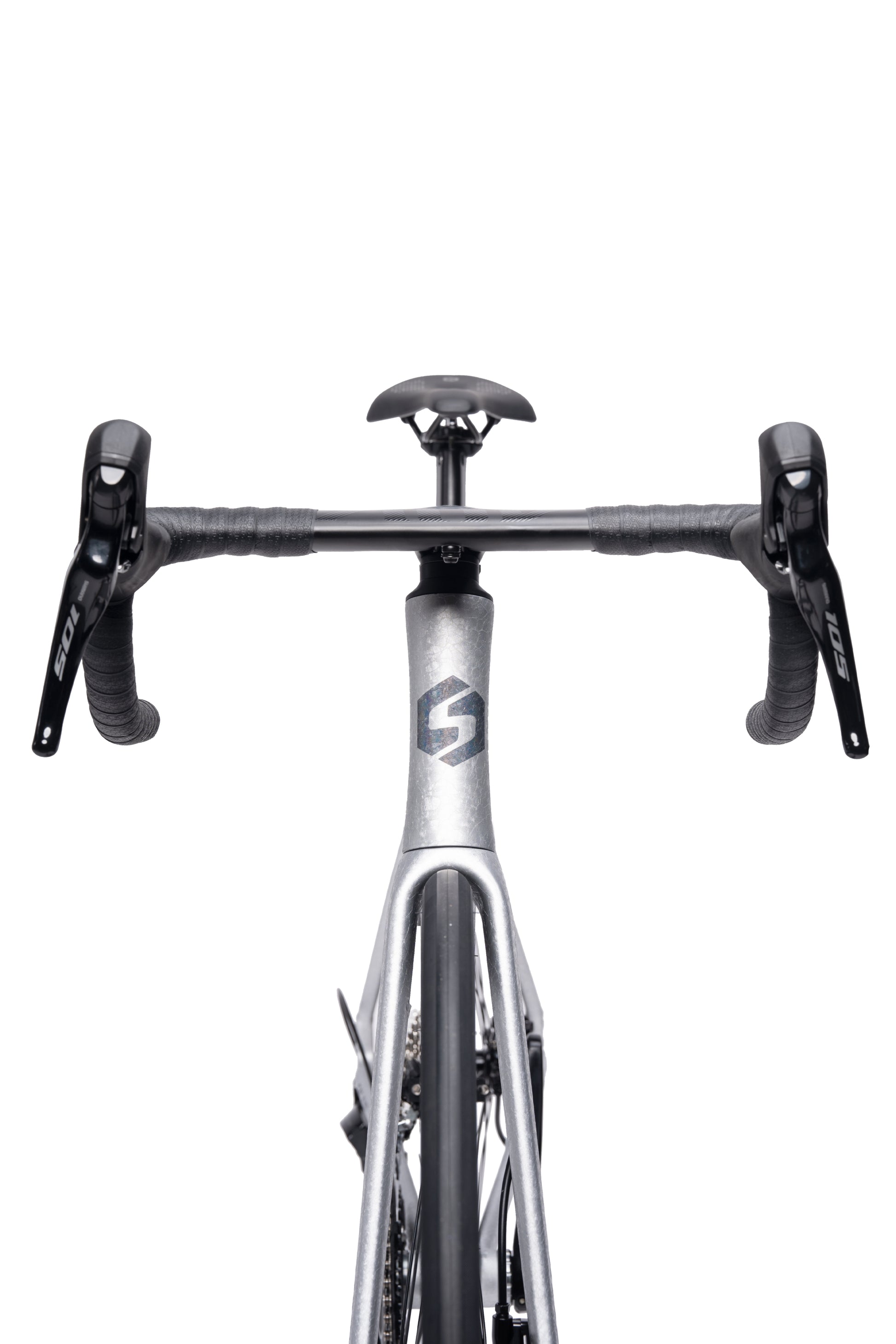

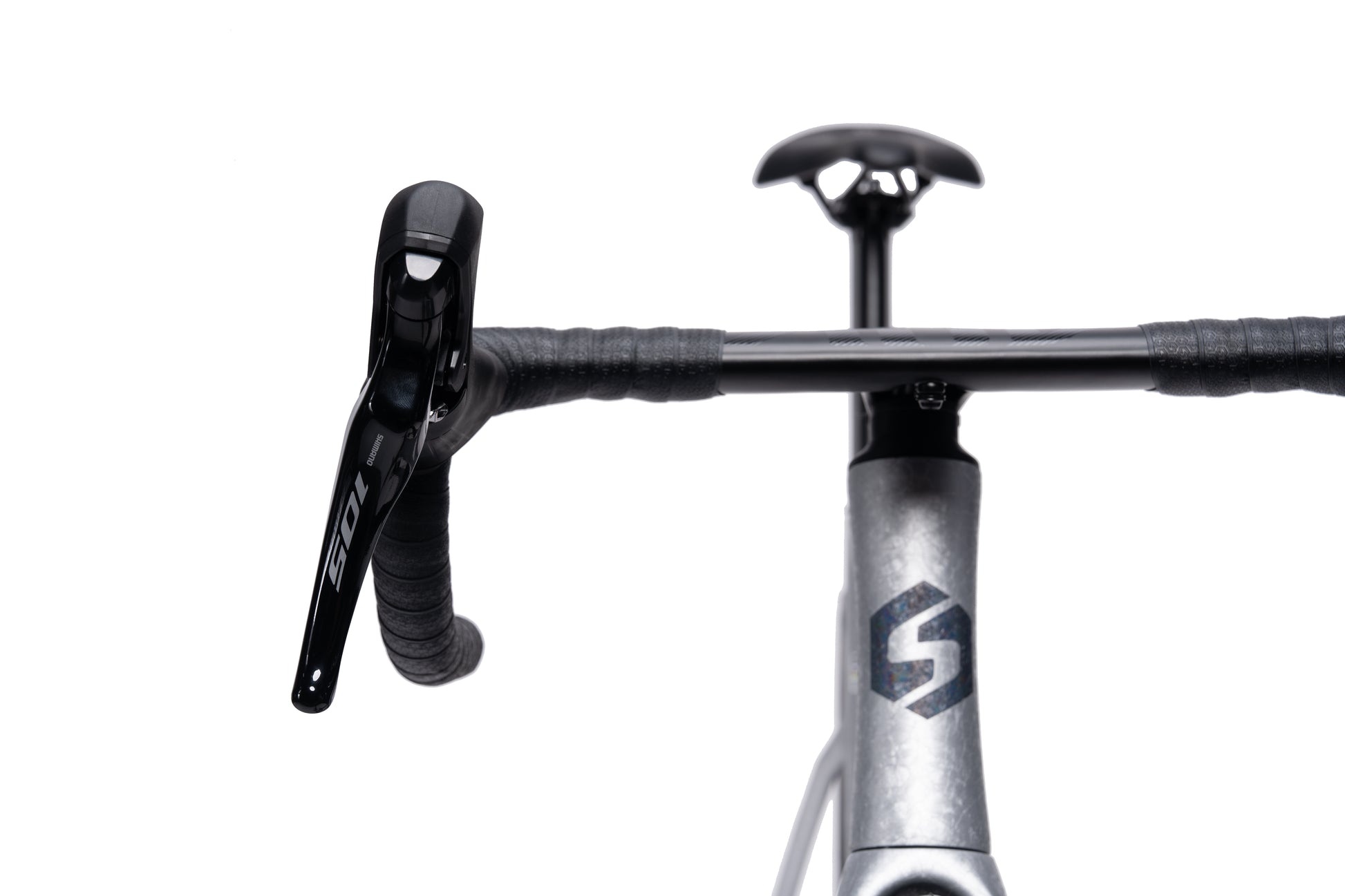

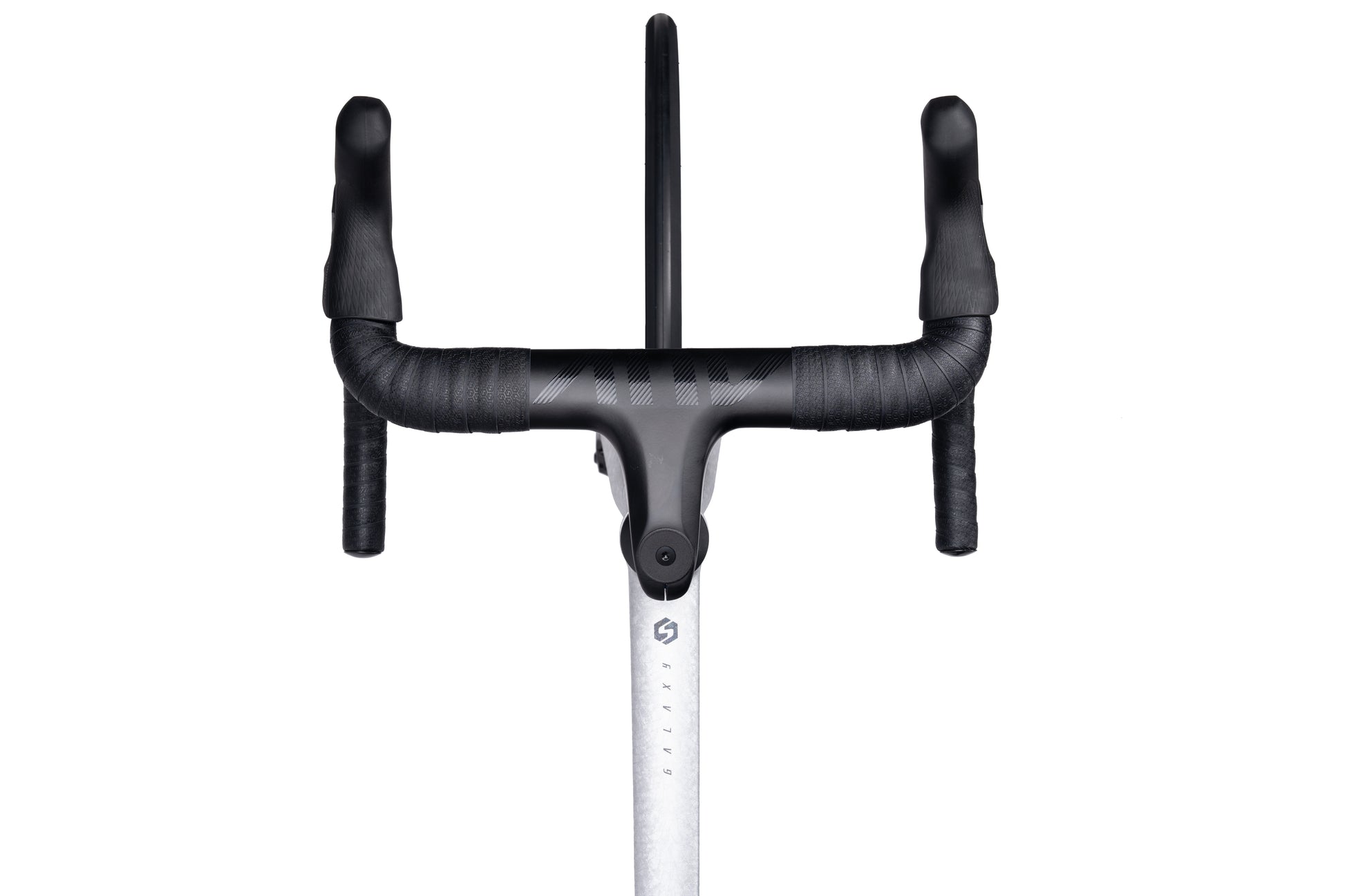

- HandlebarANV alloy aluminium integrated hidden-cable handlebar
- GripsSUNPEED ultralight lock-on grip

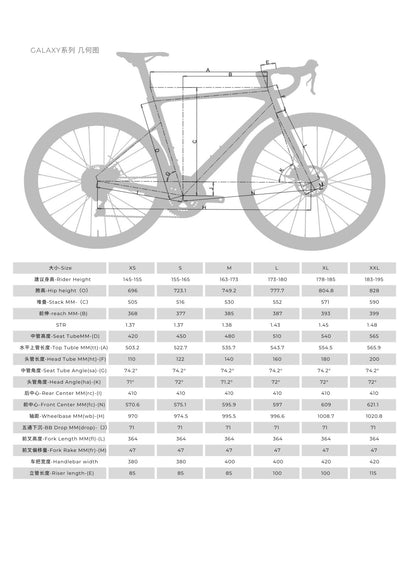

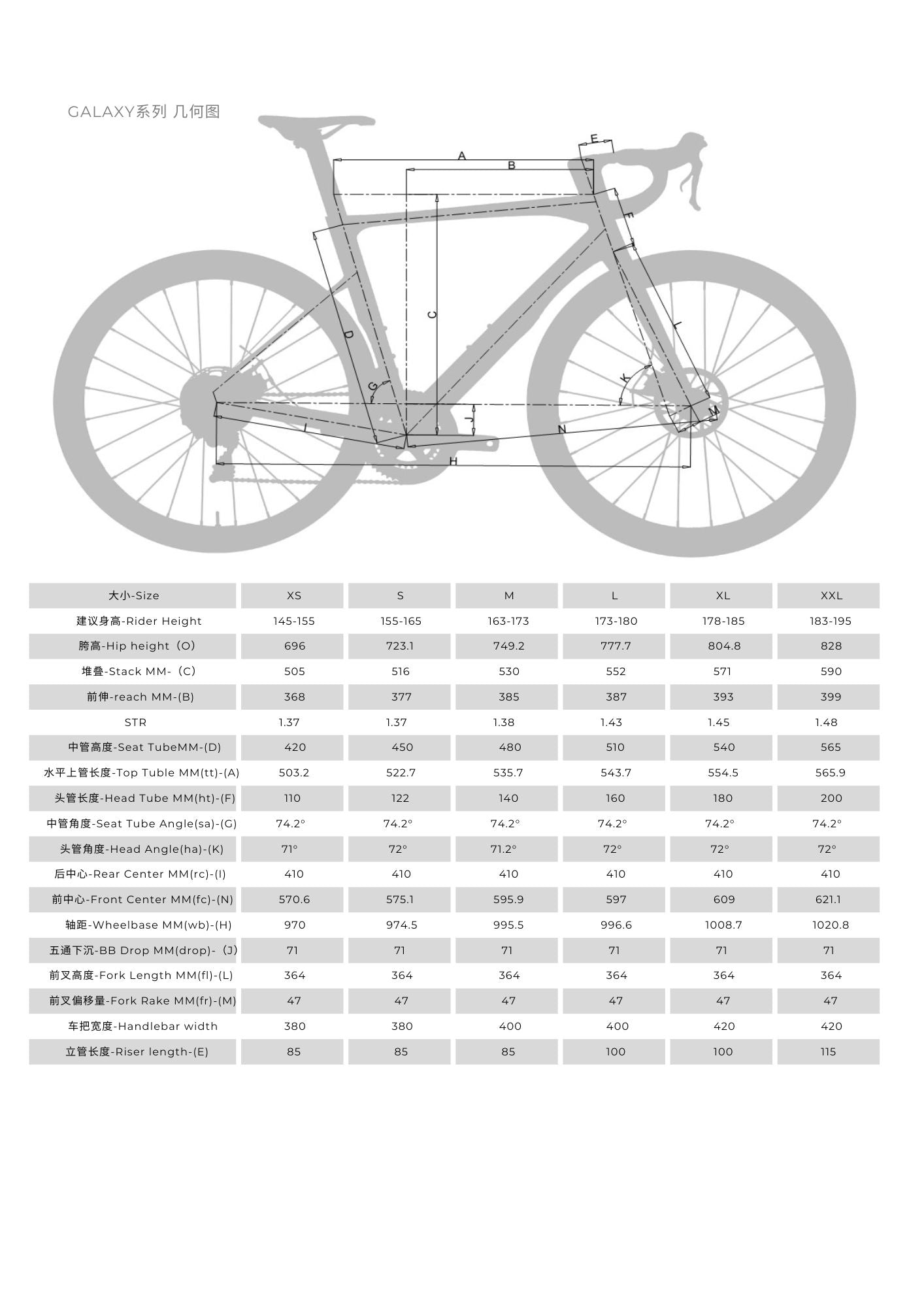

Geometry & sizing
All measurements are in mm unless stated otherwise. Angles are in degrees. Rider height is in cm.
| Spec | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Recommended rider height (cm) | 145-155 | 155-165 | 163-173 | 173-180 | 178-185 | 183-195 |
| Hip height (O) | 696 | 723.1 | 749.2 | 777.7 | 804.8 | 828 |
| Stack (C) | 505 | 516 | 530 | 552 | 571 | 590 |
| Reach (B) | 368 | 377 | 385 | 387 | 393 | 399 |
| STR | 1.37 | 1.37 | 1.38 | 1.43 | 1.45 | 1.48 |
| Seat tube (D) | 420 | 450 | 480 | 510 | 540 | 565 |
| Top tube (A) | 503.2 | 522.7 | 535.7 | 543.7 | 554.5 | 565.9 |
| Head tube (F) | 110 | 122 | 140 | 160 | 180 | 200 |
| Seat tube angle (G) | 74.2° | 74.2° | 74.2° | 74.2° | 74.2° | 74.2° |
| Head angle (K) | 71° | 72° | 71.2° | 72° | 72° | 72° |
| Rear center (I) | 410 | 410 | 410 | 410 | 410 | 410 |
| Front center (N) | 570.6 | 575.1 | 595.9 | 597 | 609 | 621.1 |
| Wheelbase (H) | 970 | 974.5 | 995.5 | 996.6 | 1008.7 | 1020.8 |
| BB drop (J) | 71 | 71 | 71 | 71 | 71 | 71 |
| Fork length (L) | 364 | 364 | 364 | 364 | 364 | 364 |
| Fork rake (M) | 47 | 47 | 47 | 47 | 47 | 47 |
| Handlebar width | 380 | 380 | 400 | 400 | 420 | 420 |
| Riser length (E) | 85 | 85 | 85 | 100 | 100 | 115 |
