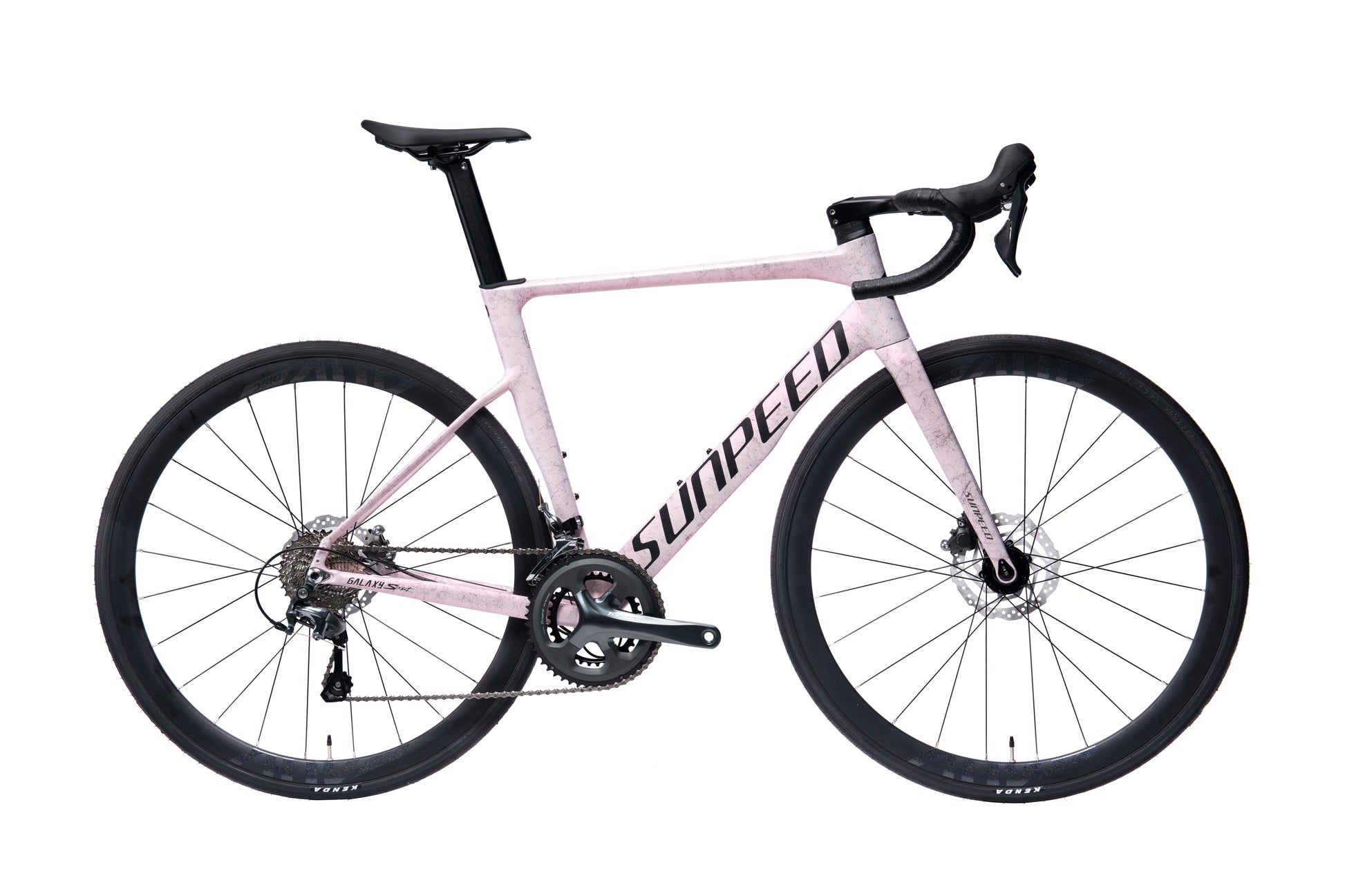

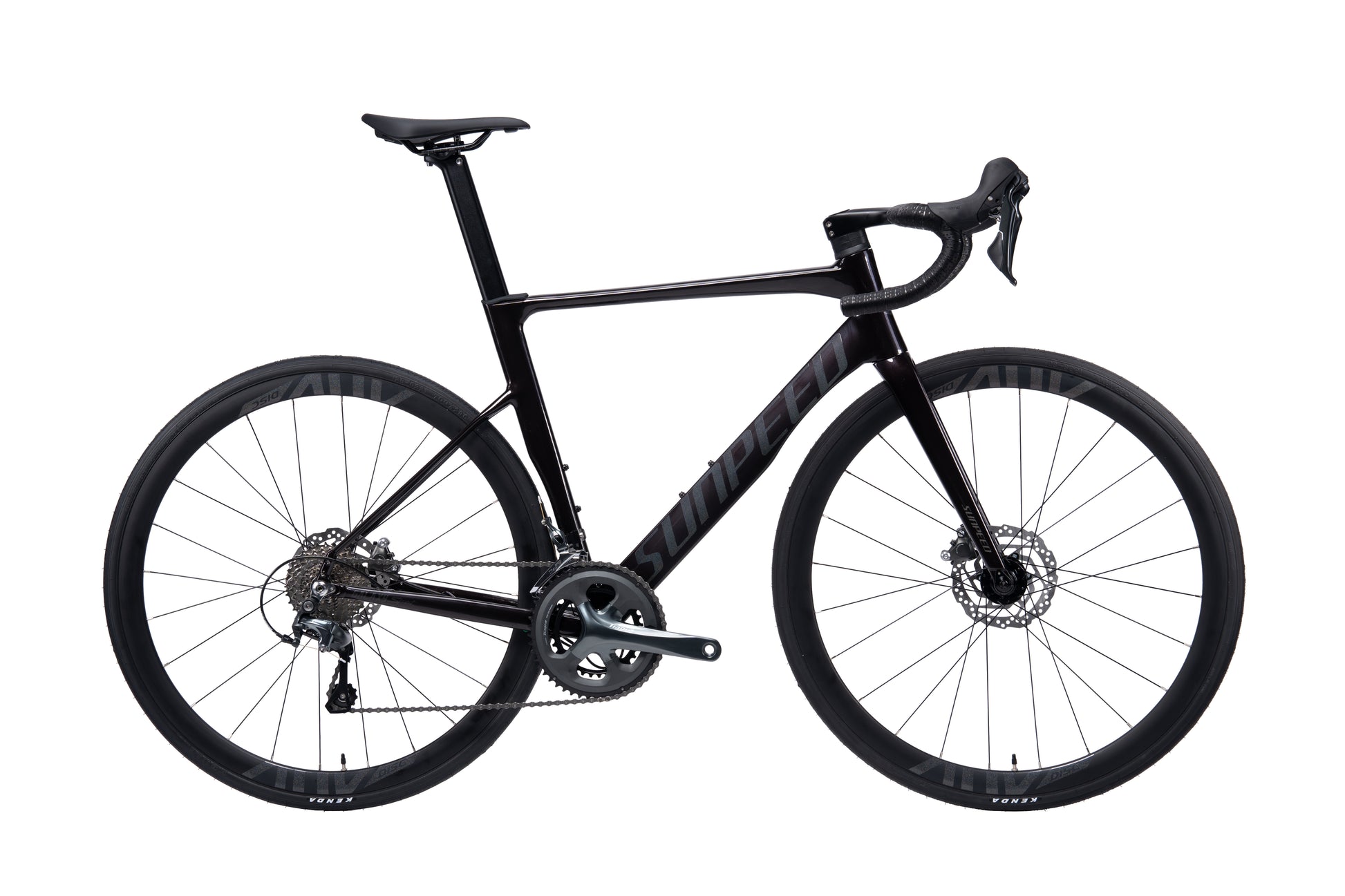

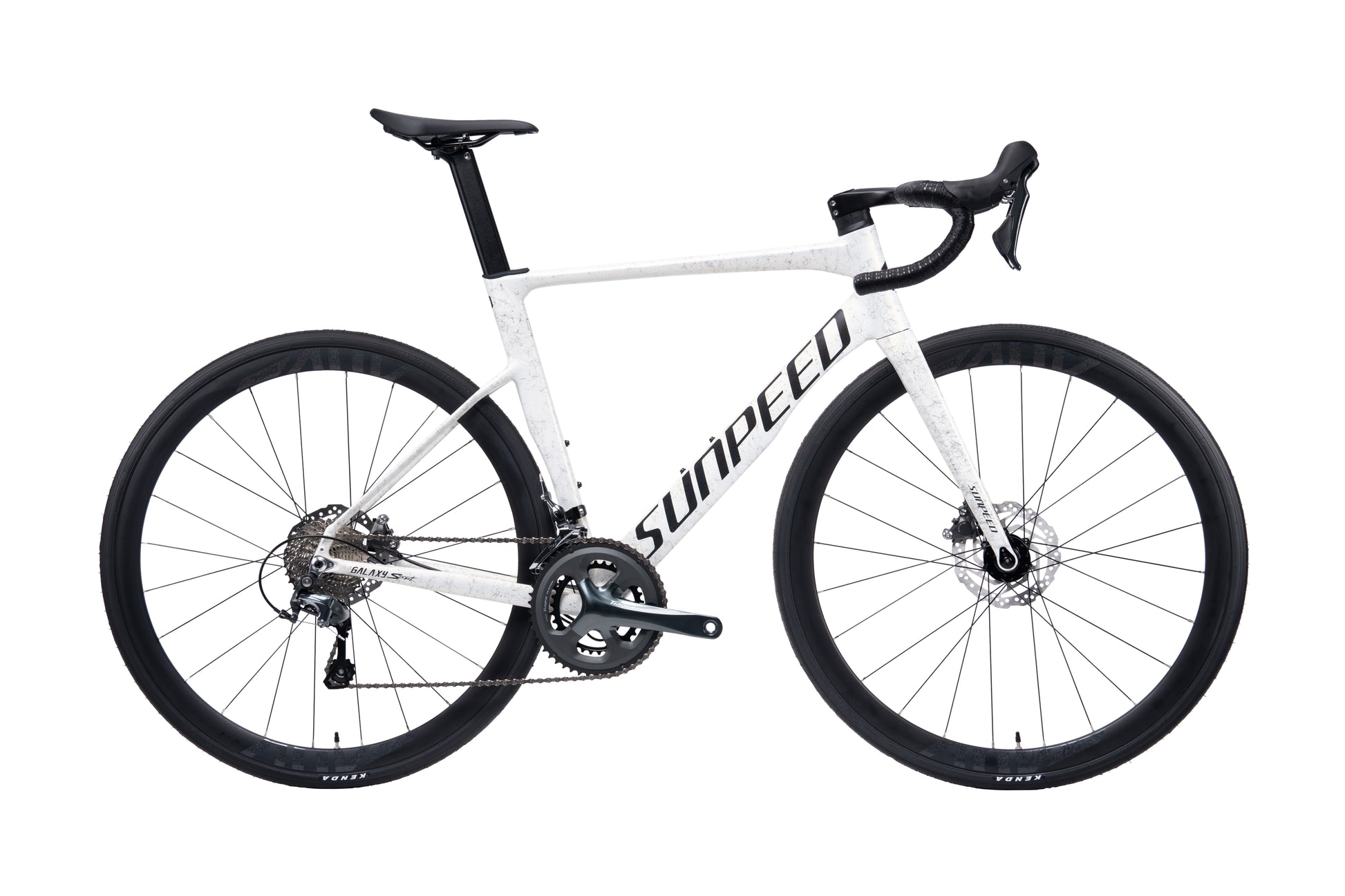

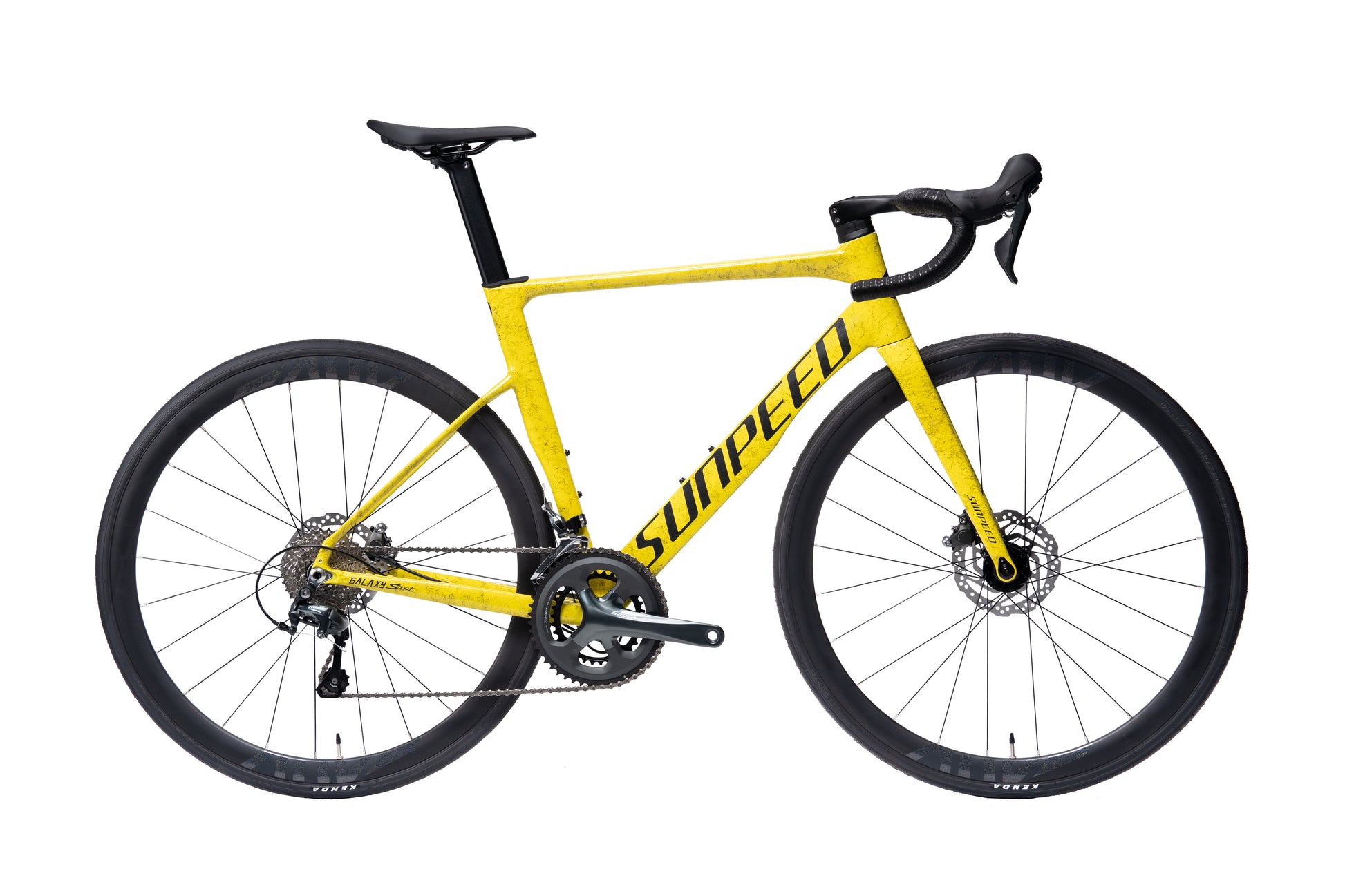

2026 GALAXY SPORT Road Bike - Shimano Tiagra
A fast, clean, and reliable alloy road bike with a carbon fork, Shimano Tiagra drivetrain, and hydraulic disc braking.
The 2026 SUNPEED GALAXY SPORT is built for riders who want a capable, stylish, and confidence-inspiring road bike. Its ultralight aluminium frame uses internal cable routing for a clean aero look, while the carbon fork improves handling and front-end comfort.
Shimano Tiagra 2x10 shifting gives dependable road performance, and Shimano hydraulic disc brakes provide consistent stopping power in all conditions. Paired with ANV A35 alloy wheels and foldable 28C tyres, it is a strong all-rounder for training, fitness rides, commuting, and weekend cycling.
- Clean alloy aero platformUltralight aluminium frame with internal cable routing and Q12 axle.
- Shimano Tiagra drivetrainReliable 2x10 shifting for everyday road performance.
- Carbon fork controlResponsive handling with improved comfort on real roads.

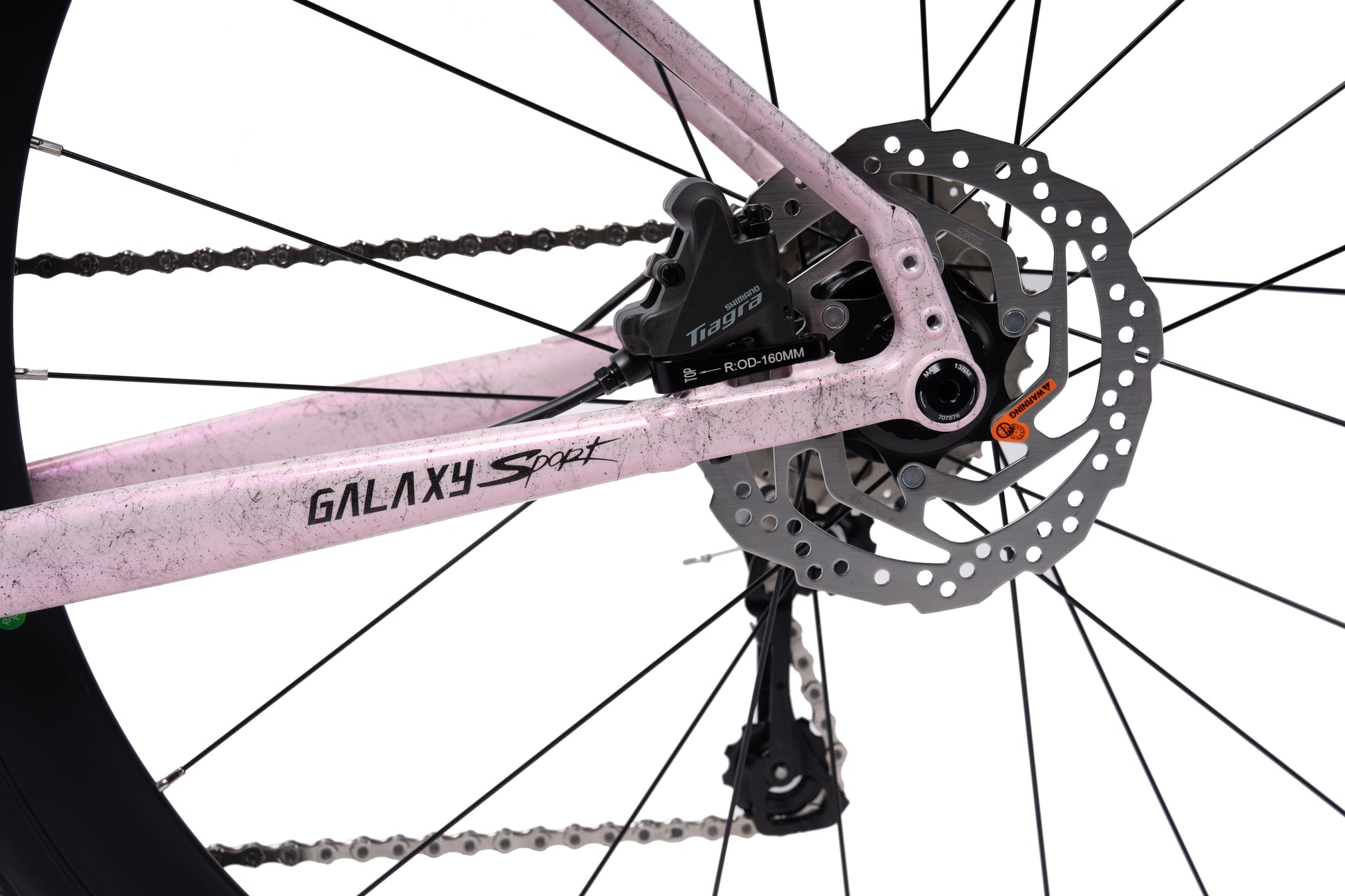

- Hydraulic disc brakingShimano Tiagra hydraulic brakes with 160mm Center Lock rotors.
Frameset
- FrameGalaxy ultralight aluminium 700C, internal cable routing, axle Q12
- ForkSUNPEED Galaxy carbon 700C, internal cable routing, axle Q12
Wheelset
- HubANV Q12, 24H axle, 4 sealed bearings
- SpokesXinda spokes
- RimsANV A35 aluminium disc wheelset
- TyresCST C-1406 700×28C DK60 EPS foldable

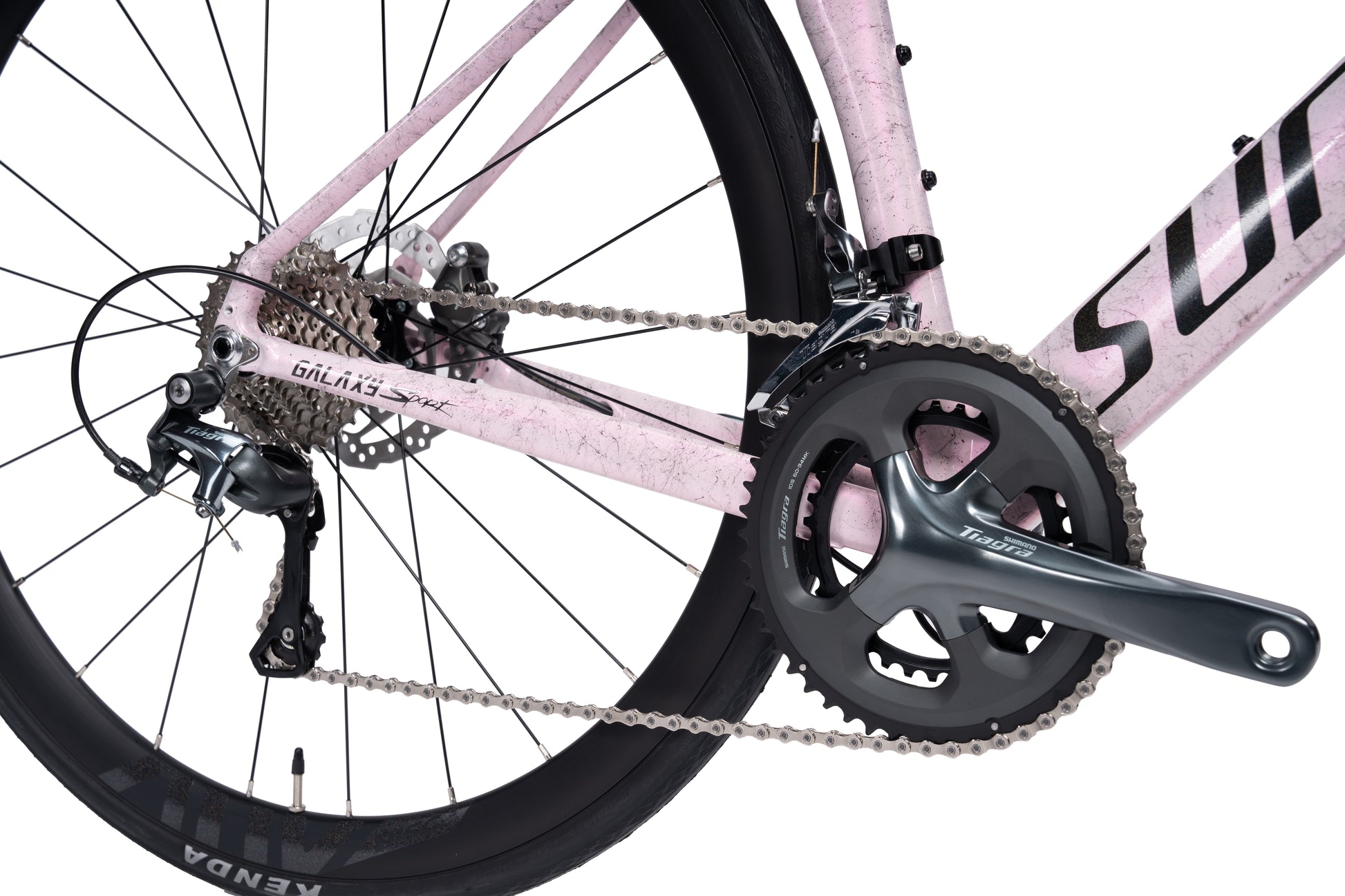

Drivetrain
- ShiftersShimano Tiagra R4720

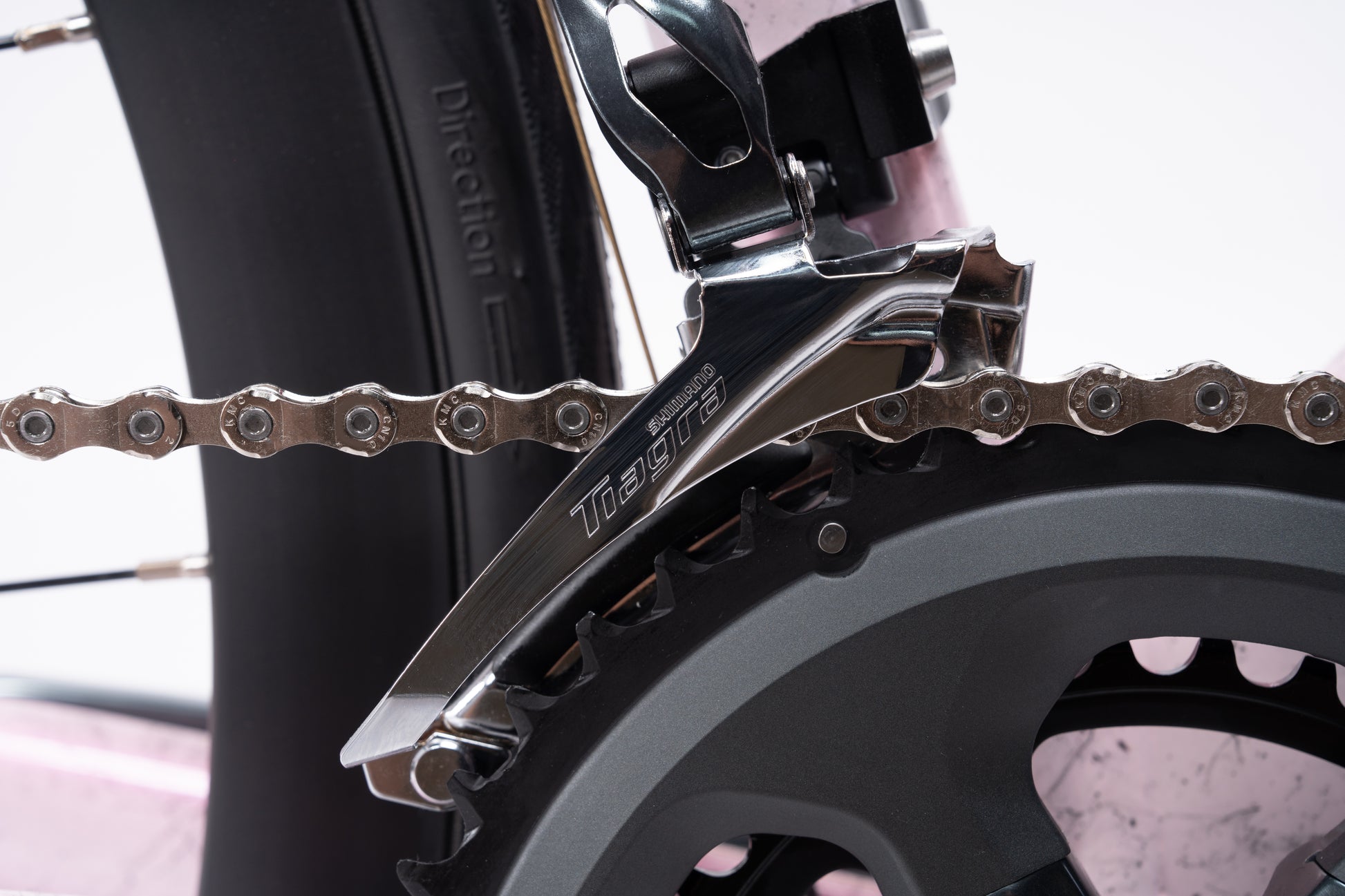

- Front derailleurShimano Tiagra FD-R4700F, 2-speed
- Rear derailleurShimano Tiagra RD-R4700R, 10-speed
- CassetteShimano CSHG500, 11/32T, 10-speed

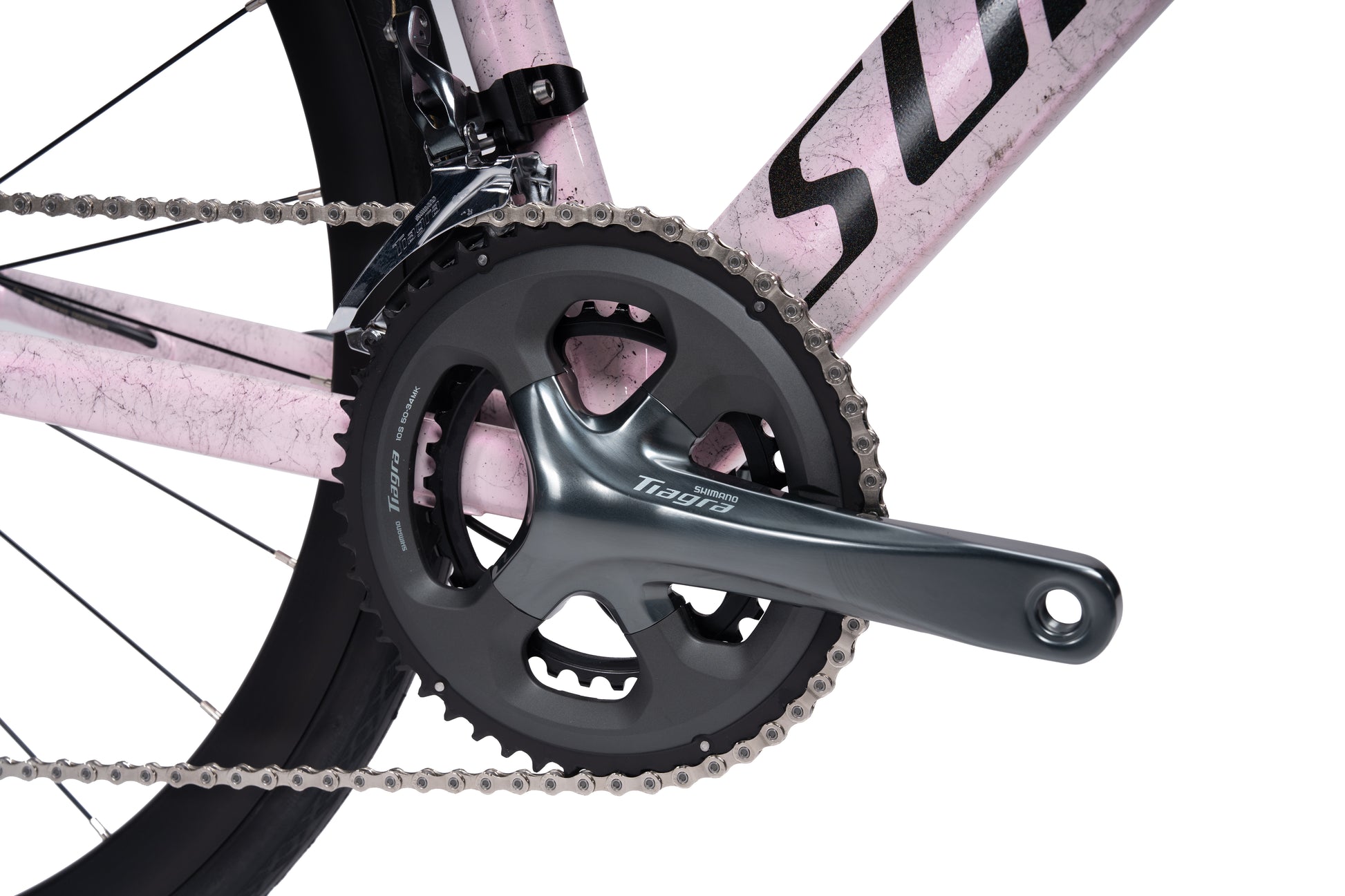

- CranksetShimano Tiagra AFC4700, 50/34T, 10-speed
- Bottom bracketSenicx BB-BSA24R
- ChainKMC CN10
Brakes & Components
- BrakesShimano Tiagra R4770 hydraulic disc, front & rear
- Brake leversShimano R4770
- Brake discShimano RT-10 Center Lock, 160mm
- SeatpostSUNPEED Galaxy aluminium aero
- Seat clampSUNPEED Galaxy aluminium hidden
- SaddleANV saddle
- HeadsetCompletely hidden sealed cartridge bearings

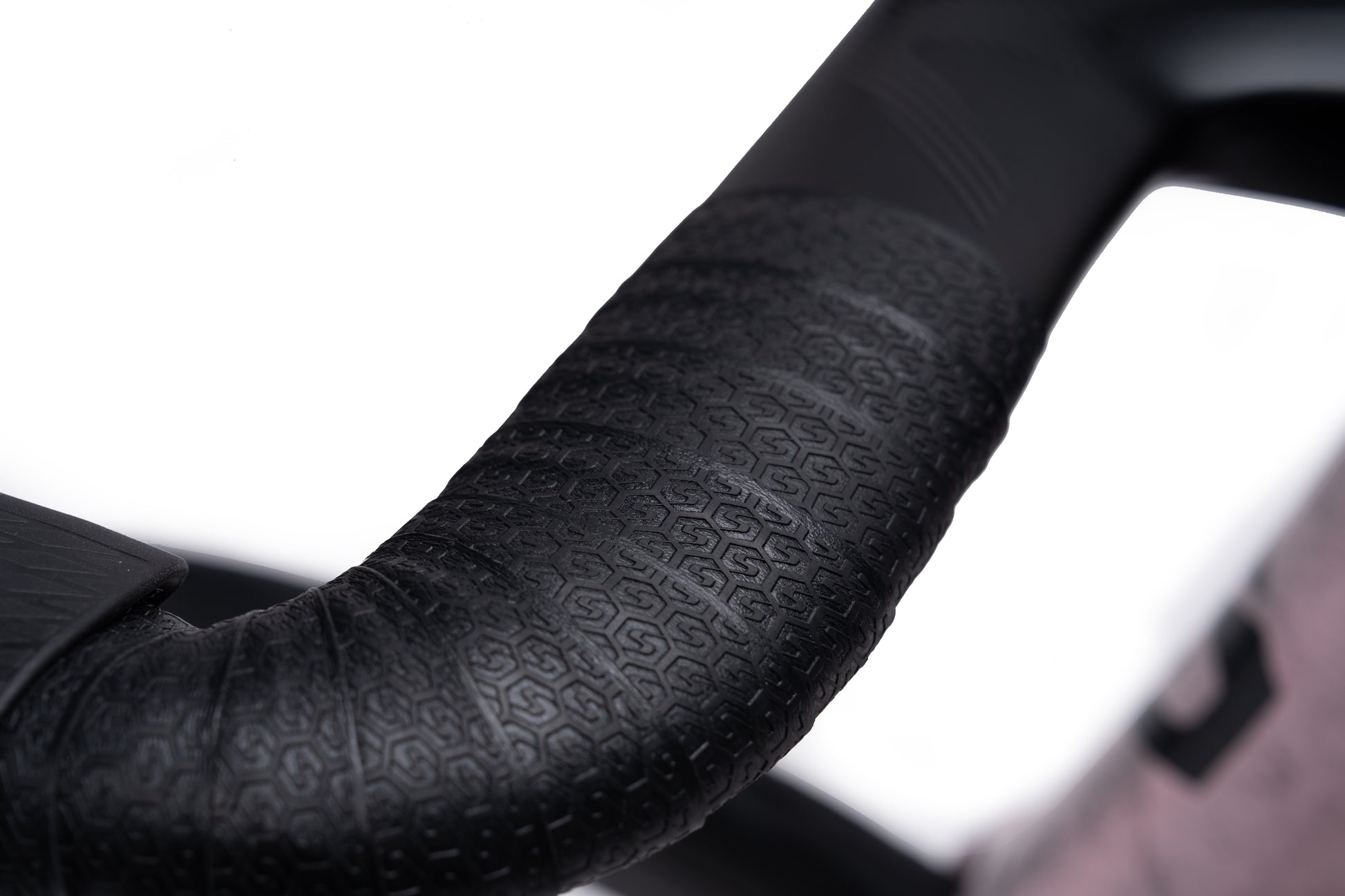

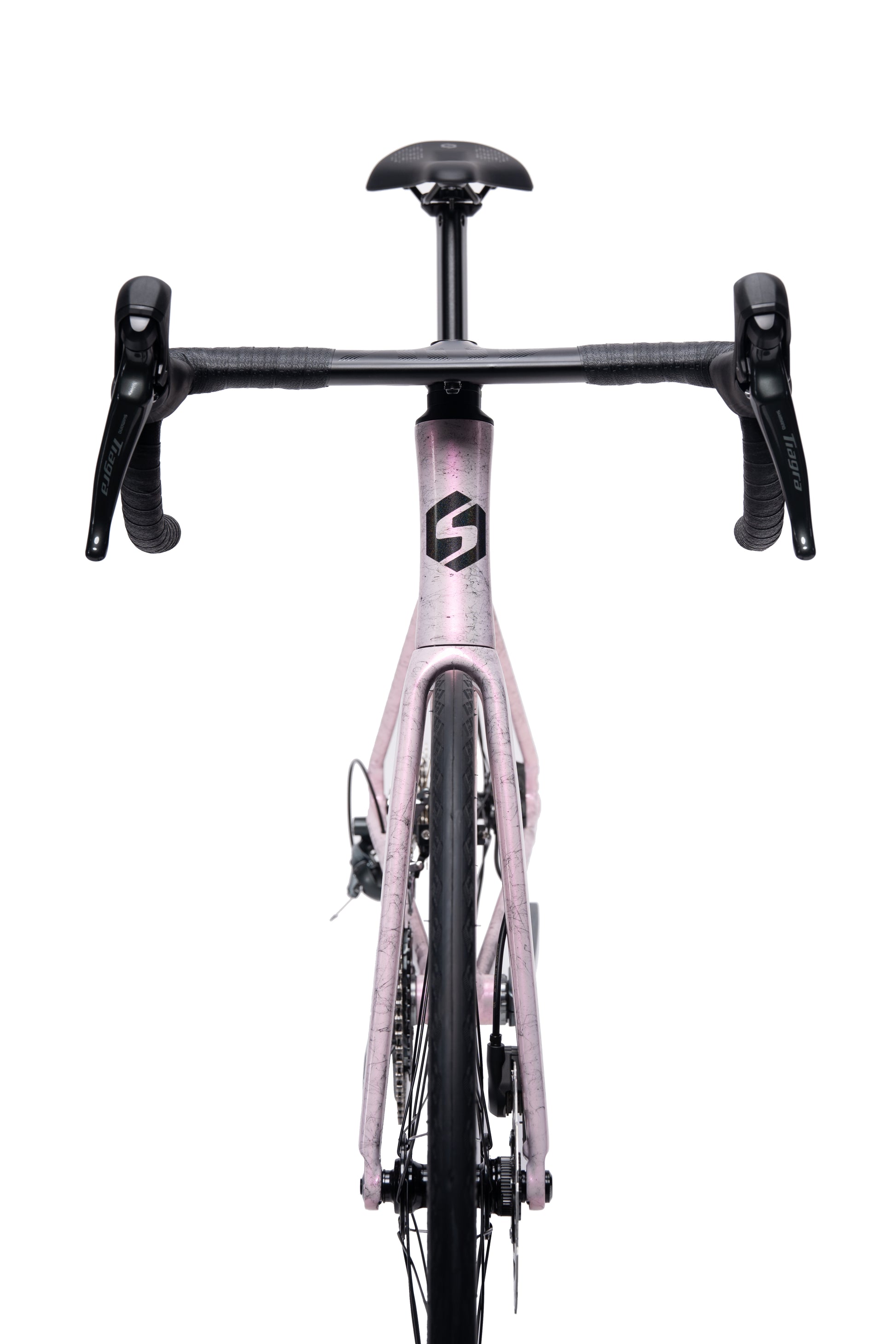

- HandlebarANV alloy aluminium integrated hidden-cable handlebar
- GripsSUNPEED ultralight lock-on grip
- PedalsWellgo DU aluminium pedals
- Net weight9.7kg

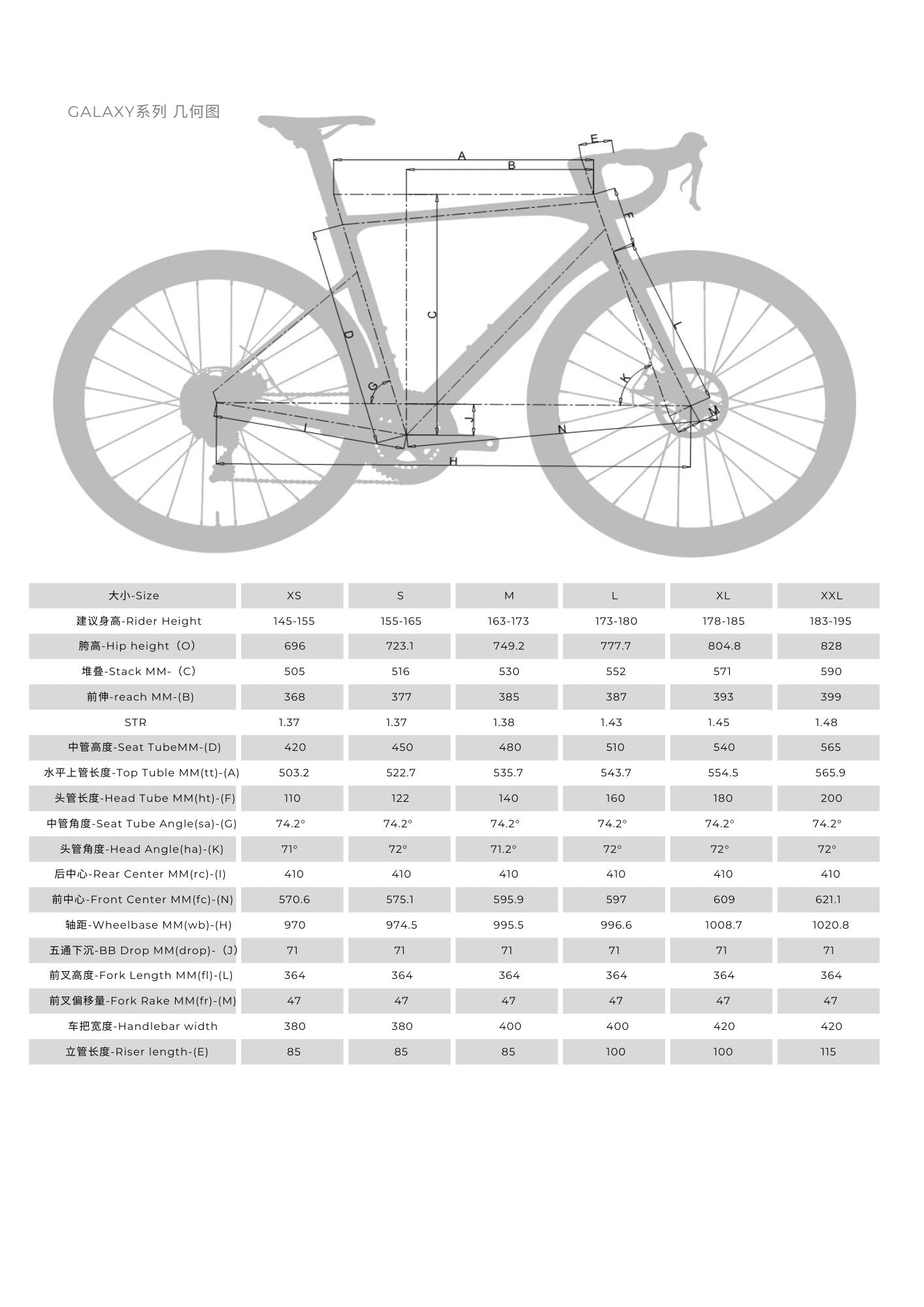

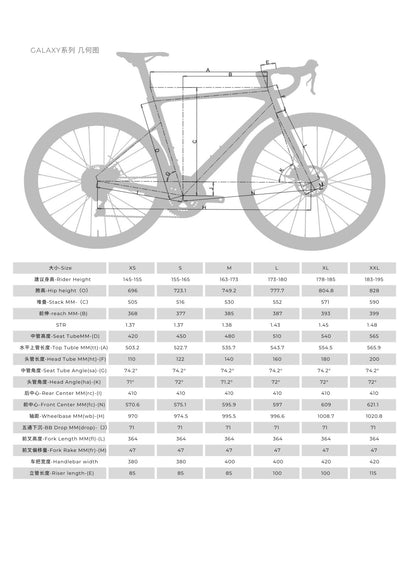

Geometry & sizing
All measurements are in mm unless stated otherwise. Angles are in degrees. Rider height is in cm.
| Spec | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Recommended rider height (cm) | 145-155 | 155-165 | 163-173 | 173-180 | 178-185 | 183-195 |
| Hip height (O) | 696 | 723.1 | 749.2 | 777.7 | 804.8 | 828 |
| Stack (C) | 505 | 516 | 530 | 552 | 571 | 590 |
| Reach (B) | 368 | 377 | 385 | 387 | 393 | 399 |
| STR | 1.37 | 1.37 | 1.38 | 1.43 | 1.45 | 1.48 |
| Seat tube (D) | 420 | 450 | 480 | 510 | 540 | 565 |
| Top tube (A) | 503.2 | 522.7 | 535.7 | 543.7 | 554.5 | 565.9 |
| Head tube (F) | 110 | 122 | 140 | 160 | 180 | 200 |
| Seat tube angle (G) | 74.2° | 74.2° | 74.2° | 74.2° | 74.2° | 74.2° |
| Head angle (K) | 71° | 72° | 71.2° | 72° | 72° | 72° |
| Rear center (I) | 410 | 410 | 410 | 410 | 410 | 410 |
| Front center (N) | 570.6 | 575.1 | 595.9 | 597 | 609 | 621.1 |
| Wheelbase (H) | 970 | 974.5 | 995.5 | 996.6 | 1008.7 | 1020.8 |
| BB drop (J) | 71 | 71 | 71 | 71 | 71 | 71 |
| Fork length (L) | 364 | 364 | 364 | 364 | 364 | 364 |
| Fork rake (M) | 47 | 47 | 47 | 47 | 47 | 47 |
| Handlebar width | 380 | 380 | 400 | 400 | 420 | 420 |
| Riser length (E) | 85 | 85 | 85 | 100 | 100 | 115 |
