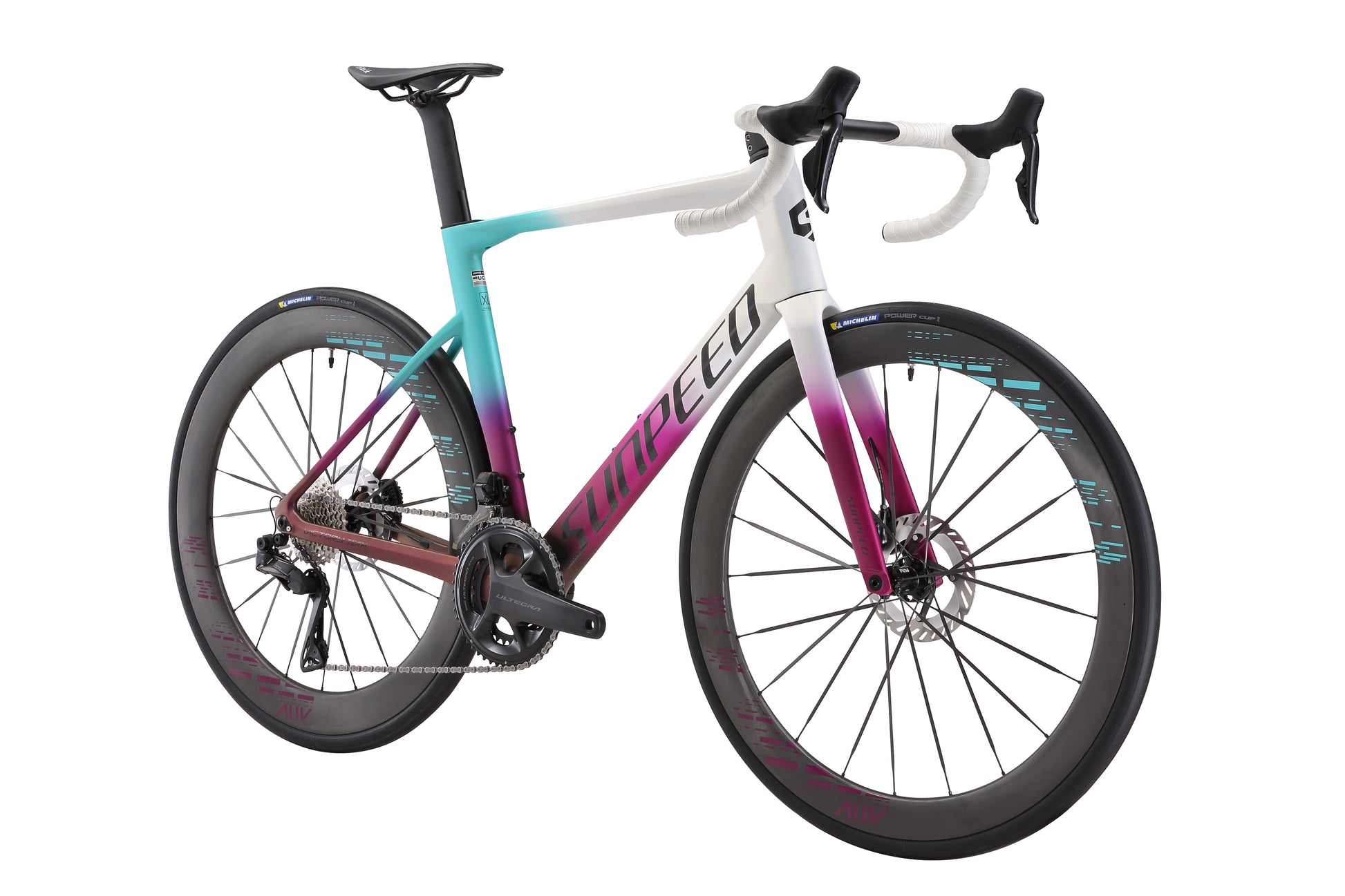

Victory Team Ultegra Di2
Pickup available at VRIDE Shop
Usually ready in 24 hours

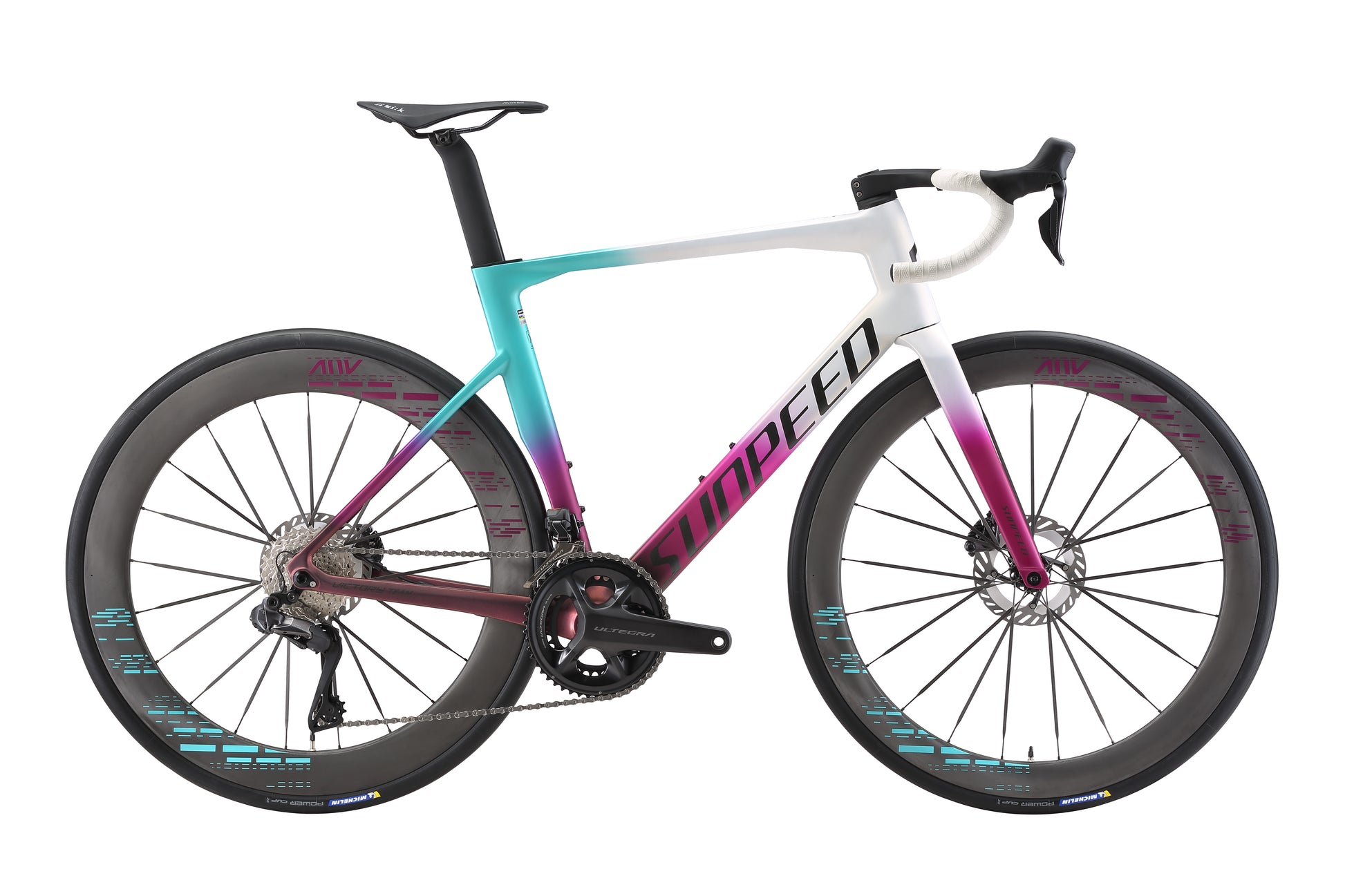

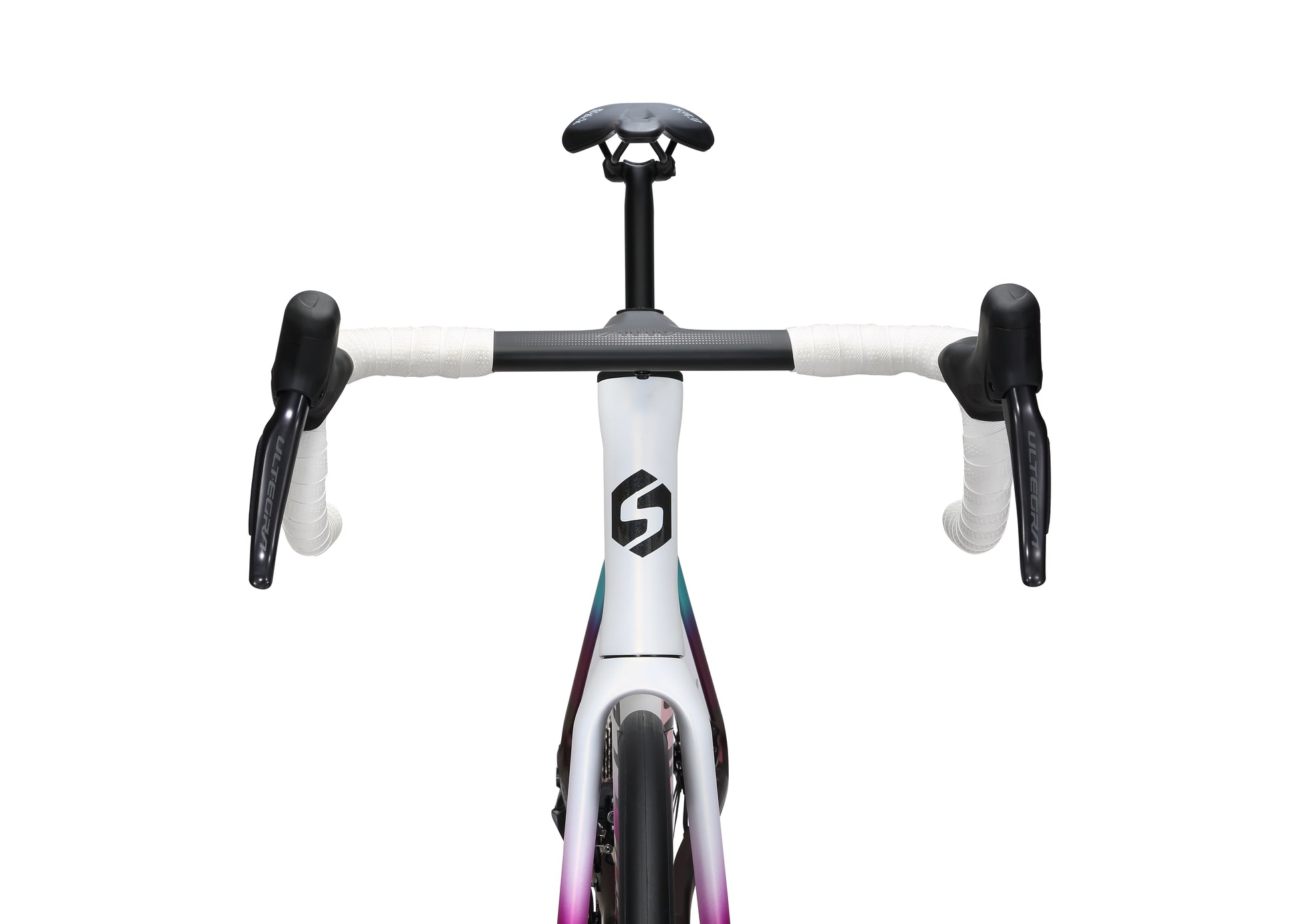

Victory Team Ultegra Di2
Frame Size: L
Power Boost™ Fast Charge
Ride further without waiting. Our high-performance eBike charges in record time, so you spend less time plugged in and more time on the road. A smart battery system with advanced protection keeps your ride smooth, safe, and ready for every journey.
Specifications
Frameset
Frame
SUNPEED Victory Team Toray T800 + T1000 Carbon Fibre Fork, Internal Cable Routing
Fork
SUNPEED Victory Team Toray T800 + T1000 Carbon Fibre Frame, Internal Cable Routing

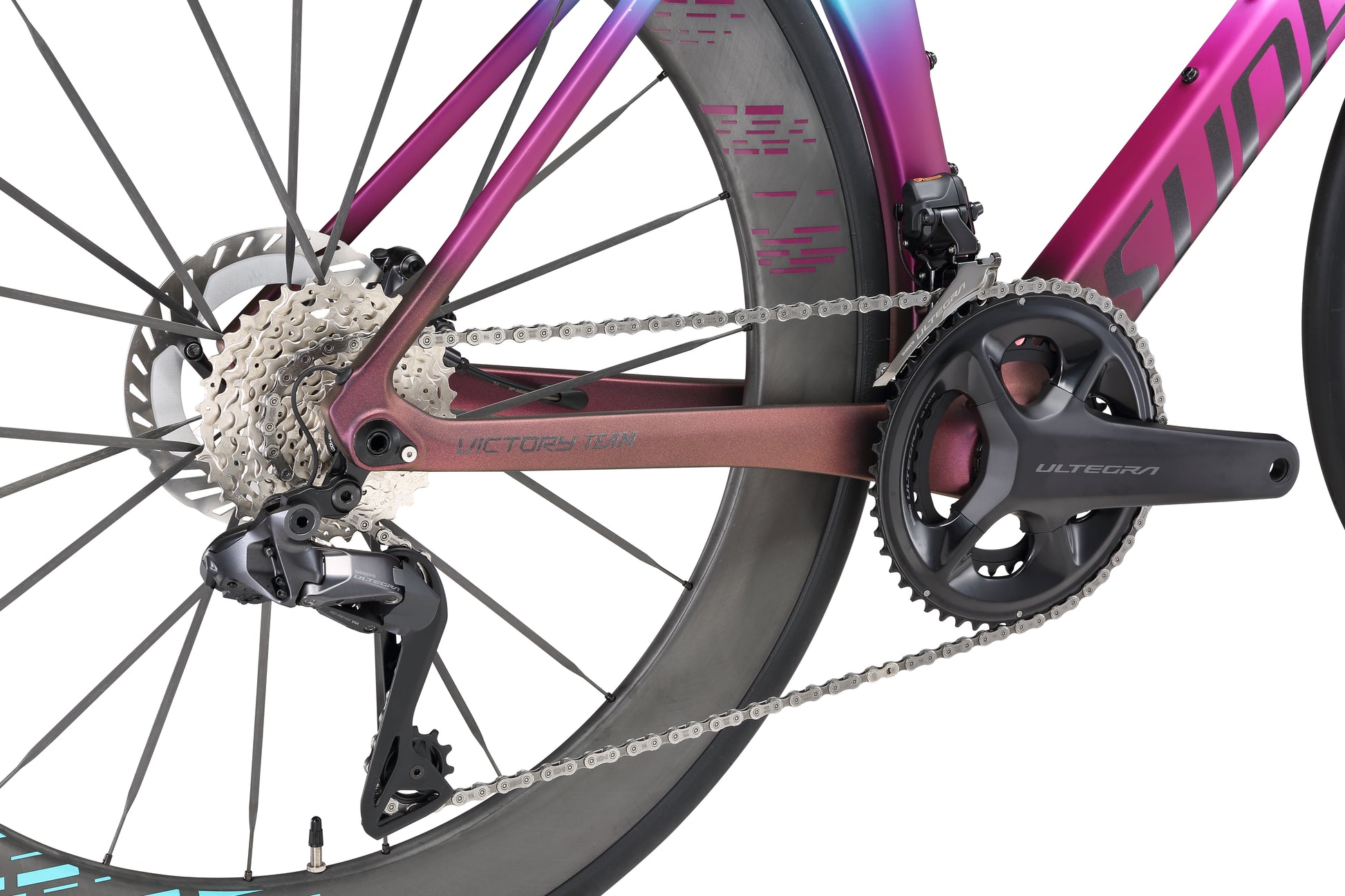

Drivetrain
Shifters
Shimano Ultegra Di2 R8170 24 Speed
Front Derailleur
Shimano Ultegra Di2 R8150 2 Speed
Rear Derailleur
Shimano Ultegra Di2 R8150 12 Speed
Cassette
Shimano Ultegra R8101 11/34 12 Speed
Crankset
Shimano Ultegra R8100 50/34T
Bottom Bracket
Senicx T47 Ceramic Bearings Bottom Bracket
Chain
Shimano CN-M8100
Brakes
Brakes
Shimano Ultegra R8170 Hydraulic Disc Brakes
Brake Levers
Shimano Ultegra R8170 Hydraulic Disc Brakes
Brake Rotors
Shimano CL800 Mid-Lock 160mm
Wheels & Tyres
Hubs
ANV M7-081 Q12 21H Axle 4 Sealed Bearings
Spokes
C-Shape Aero 5mm Carbon Spokes
Rims
ANV Rear: 60mm | Front: 50mm Carbon Race Level Disc Brake Rims
Tyres
Michelin Power Cup 700 x 28c Race Level Tyres
Cockpit & Finishing Kit
Seatpost
SUNPEED Victory Team Carbon Seat Post
Seat Clamp
ANV Carbon Hidden
Saddle
Fi'zi:k Antares Race Level Mid-Hollow Saddle
Headset
ANV Completely Hidden

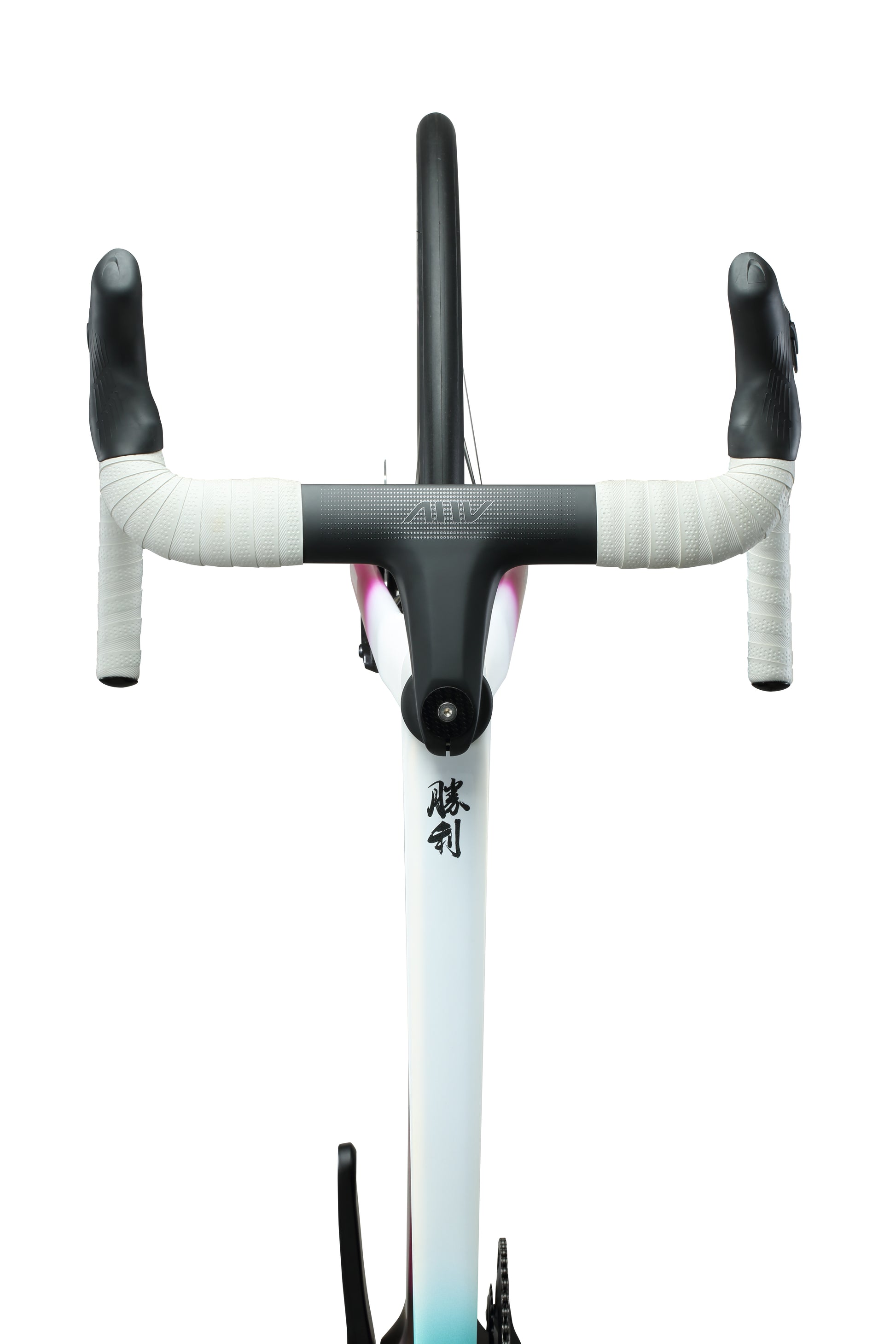

Handlebar
ANV Carbon Integrated Cable Routing Handlebar
Handlebar Tape / Grips
High Elastic Race Level PU+EVA
Pedals
R26 (Self Locking Bearing) + RD2-CD (Shifting)
Weight
Net Weight
7.5kg
Specifications may vary by size and configuration and are subject to change without notice.
Find Your Size
Use your height as a starting point when choosing your frame size.
XXL
Recommended Height
185-195
XL
Recommended Height
179-188
L
Recommended Height
172-180
M
Recommended Height
165-173
S
Recommended Height
158-166
Size recommendations are a guide only. Rider proportions, flexibility and preferred riding position can affect the ideal frame size.

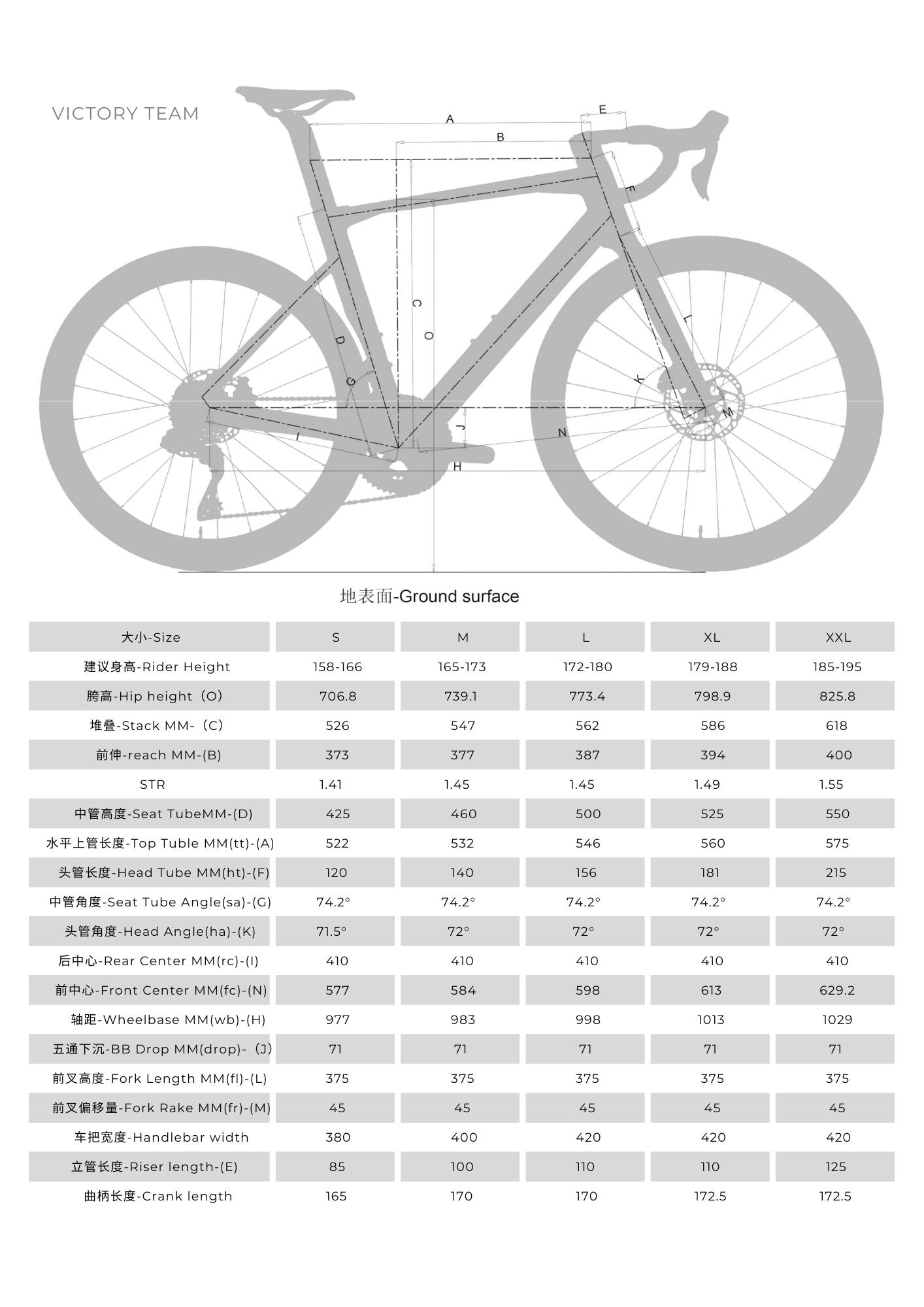

Geometry
| XXL | XL | L | M | S | |
|---|---|---|---|---|---|
| Recommended Rider Height (cm) | 185-195 | 179-188 | 172-180 | 165-173 | 158-166 |
| Stand Over Height (cm) (O) | 825.8 | 798.9 | 773.4 | 739.1 | 706.8 |
| Stack (mm)-(C) | 618 | 586 | 562 | 547 | 526 |
| Reach (mm)-(B) | 400 | 394 | 387 | 377 | 373 |
| Stack-to-Reach Ratio (STR) | 1.55 | 1.49 | 1.45 | 1.45 | 1.41 |
| Seat Tube (mm)-(D) | 550 | 525 | 500 | 460 | 425 |
| Top Tube (mm)-(A) | 575 | 560 | 546 | 532 | 522 |
| Head Tube (mm)-(F) | 215 | 181 | 156 | 140 | 120 |
| Seat Tube Angle-(G) | 74.2° | 74.2° | 74.2° | 74.2° | 74.2° |
| Head Tube Angle-(K) | 72° | 72° | 72° | 72° | 71.5° |
| Rear Centre (mm)-(I) | 410 | 410 | 410 | 410 | 410 |
| Front Centre (mm)-(N) | 629.2 | 613 | 598 | 584 | 577 |
| Wheelbase (mm)-(H) | 1029 | 1013 | 998 | 983 | 977 |
| BB Drop (mm)-(J) | 71 | 71 | 71 | 71 | 71 |
| Fork Length (mm)-(L) | 375 | 375 | 375 | 375 | 375 |
| Fork Rake (mm)-(M) | 45 | 45 | 45 | 45 | 45 |
| Handlebar Width (mm) | 420 | 420 | 420 | 400 | 380 |
| Riser Length (mm)-(E) | 125 | 110 | 110 | 100 | 85 |
Linear frame measurements are in millimetres unless otherwise stated.
