Description
Unlock speed and control. Carbon frameset, Shimano 105, and alloy or carbon wheel options.
Full carbon frame + fork Shimano 105 12-speed Hydraulic disc brakes A38 alloy wheels 8.5kg (alloy wheelset)
Unlock speed and control with the VICTORY SPORT — built for performance, precision, and durability. Featuring a lightweight carbon frame, fast-rolling ANV wheels, and a smooth-shifting Shimano 105 drivetrain, this bike is ready to push limits.
Hydraulic disc brakes give consistent stopping power in all conditions, while the option of A38 alloy or C50 carbon wheels lets you choose between durable everyday speed or maximum aero efficiency.
Key highlights
-
Race-ready carbon feelStiff, responsive frameset that rewards hard efforts.
-
Shimano 105 12-speedReliable shifting for training, climbs, and race days.
-
Two wheel optionsA38 alloy for durability or C50 carbon for aero speed.
-
Hydraulic braking controlConsistent stopping power for fast descents and wet roads.
Specifications
Frameset
- FrameSUNPEED Victory carbon frame 700C (axle)
- ForkSUNPEED Victory carbon fork 700C (axle)
Wheelset
- Front hubANV M203 Q12, 24H axle, aluminium, 2 sealed bearings
- Rear hubANV M203 Q12, 24H axle, aluminium, 4 sealed bearings
- SpokesPillar Competition straight pull
- RimsANV A38 aluminium disc wheels (38mm, 25mm wide)
- TyresContinental Ultra Sport III 700×25C, TPU tube
Drivetrain
- ShiftersShimano 105 R7120, 24-speed
- Front derailleurShimano 105 R7100, 2-speed
- Rear derailleurShimano 105 R7100, 12-speed
- CassetteShimano 105 R7101, 11–34 (12-speed)
- CranksetShimano 105 R7100, 50/34T
- Bottom bracketSenicx T47
- ChainShimano CN-M6100
Brakes & components
- BrakesShimano 105 R7120 hydraulic disc (front & rear)
- Brake leversShimano 105 R7120
- Brake discsIII Pro, 6 screws, 160mm
- SeatpostSUNPEED Victory carbon
- Seat clampANV carbon hidden
- SaddleSelle Royal Group mid-hollow saddle
- HeadsetANV completely hidden
- CockpitANV carbon integrated stem + handlebar
- GripsHigh elastic PU + EVA
- PedalsB610 aluminium sealed bearing pedals
- Net weight8.5kg (alloy) / 7.9kg (carbon)

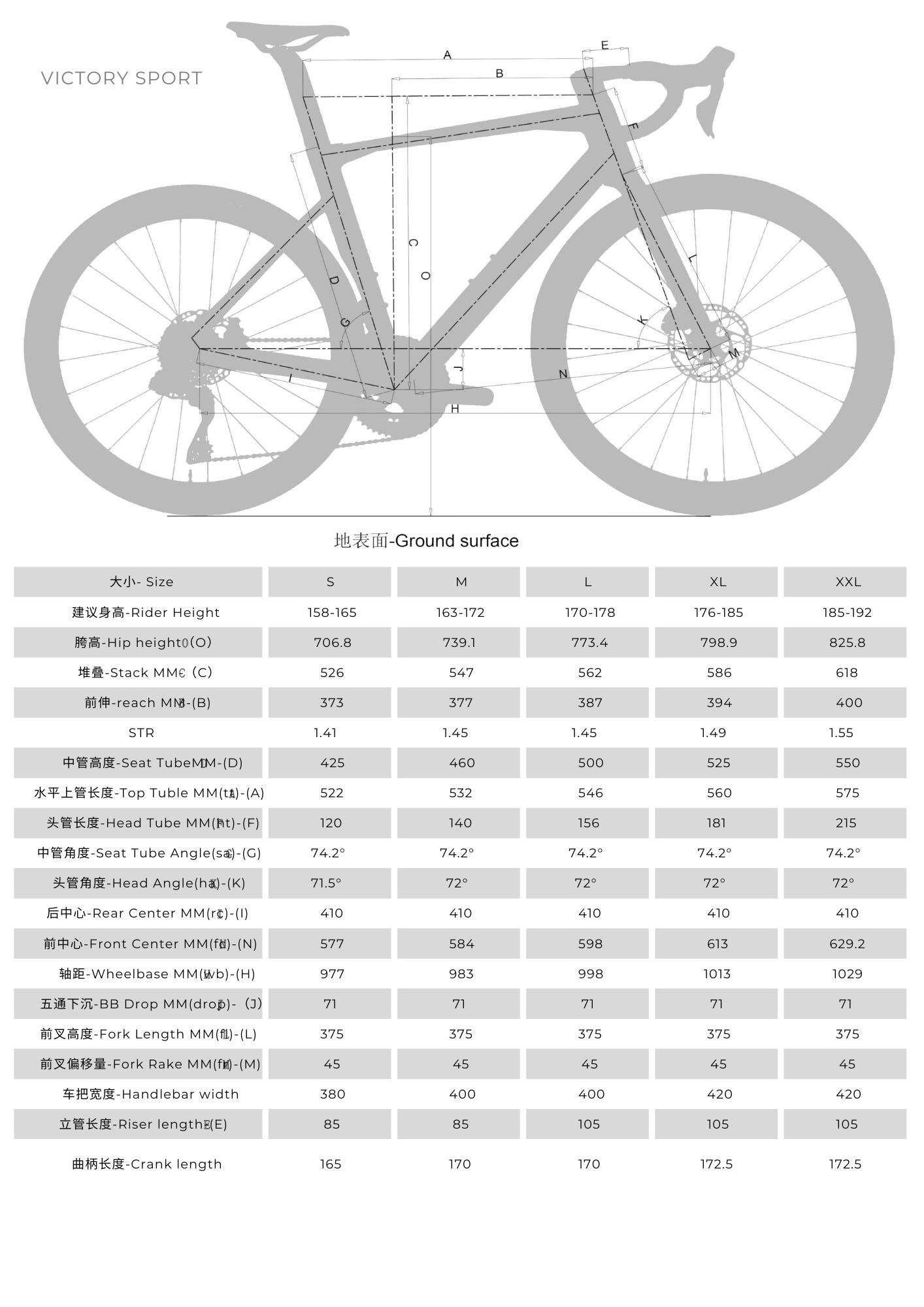

Geometry reference diagram. Letters correspond to measurements below.
Geometry & sizing
All measurements in mm unless stated otherwise.
| Spec | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| Recommended rider height (cm) | 158–165 | 163–172 | 170–178 | 176–185 | 185–192 |
| Hip height (O) | 706.8 | 739.1 | 773.4 | 798.9 | 825.8 |
| Stack (C) | 526 | 547 | 562 | 586 | 618 |
| Reach (B) | 373 | 377 | 387 | 394 | 400 |
| STR | 1.41 | 1.45 | 1.45 | 1.49 | 1.55 |
| Seat tube (D) | 425 | 460 | 500 | 525 | 550 |
| Top tube (A) | 522 | 532 | 546 | 560 | 575 |
| Head tube (F) | 120 | 140 | 156 | 181 | 215 |
| Seat tube angle (G) | 74.2° | 74.2° | 74.2° | 74.2° | 74.2° |
| Head angle (K) | 71.5° | 72° | 72° | 72° | 72° |
| Rear center (I) | 410 | 410 | 410 | 410 | 410 |
| Front center (N) | 577 | 584 | 598 | 613 | 629.2 |
| Wheelbase (H) | 977 | 983 | 998 | 1013 | 1029 |
| BB drop (J) | 71 | 71 | 71 | 71 | 71 |
| Fork length (L) | 375 | 375 | 375 | 375 | 375 |
| Fork rake (M) | 45 | 45 | 45 | 45 | 45 |
| Handlebar width | 380 | 400 | 400 | 420 | 420 |
| Riser length (E) | 85 | 85 | 105 | 105 | 105 |
| Crank length | 165 | 170 | 170 | 172.5 | 172.5 |
Tip: If you are between sizes, we generally recommend sizing down for a sportier fit.
