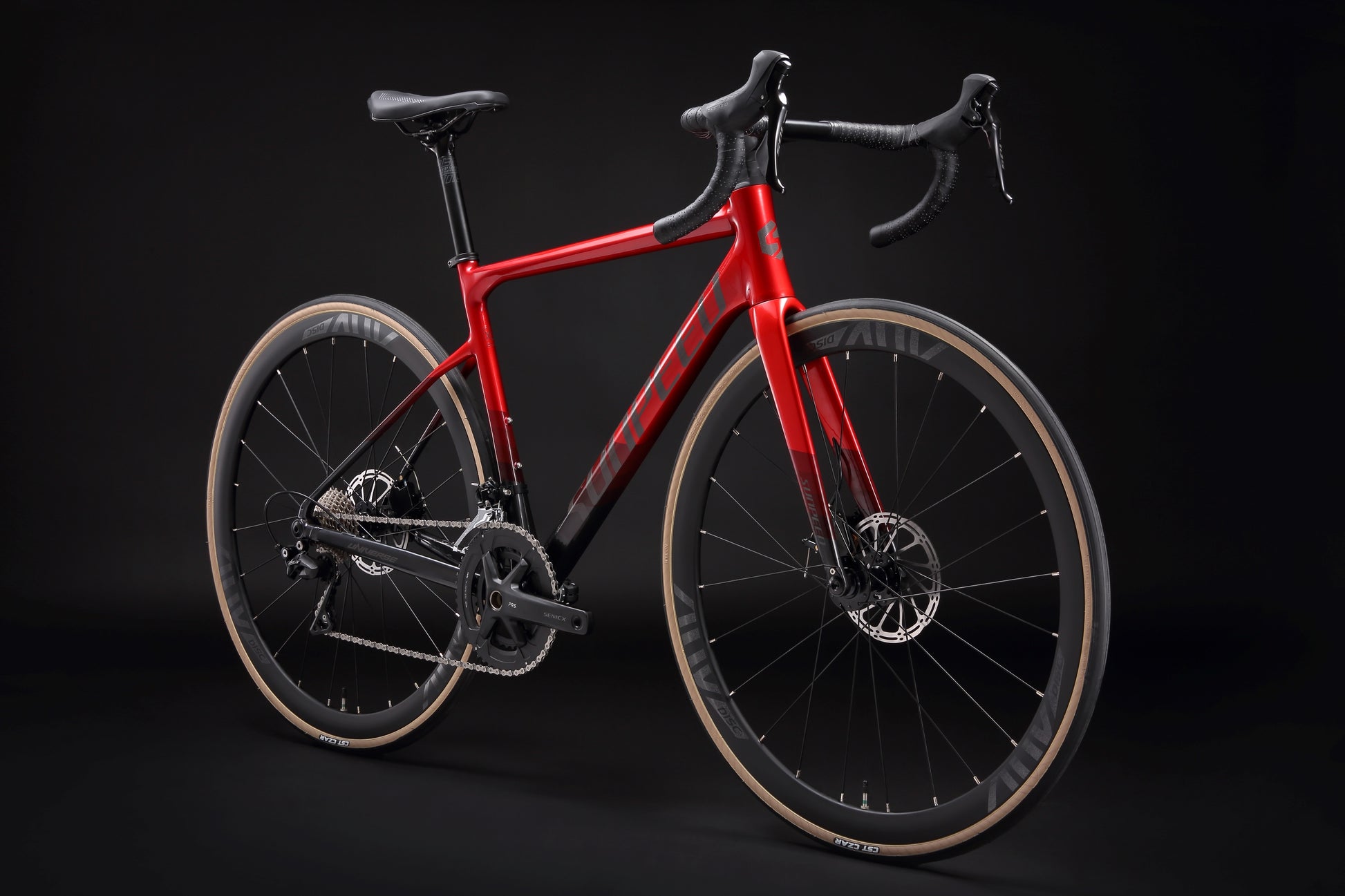

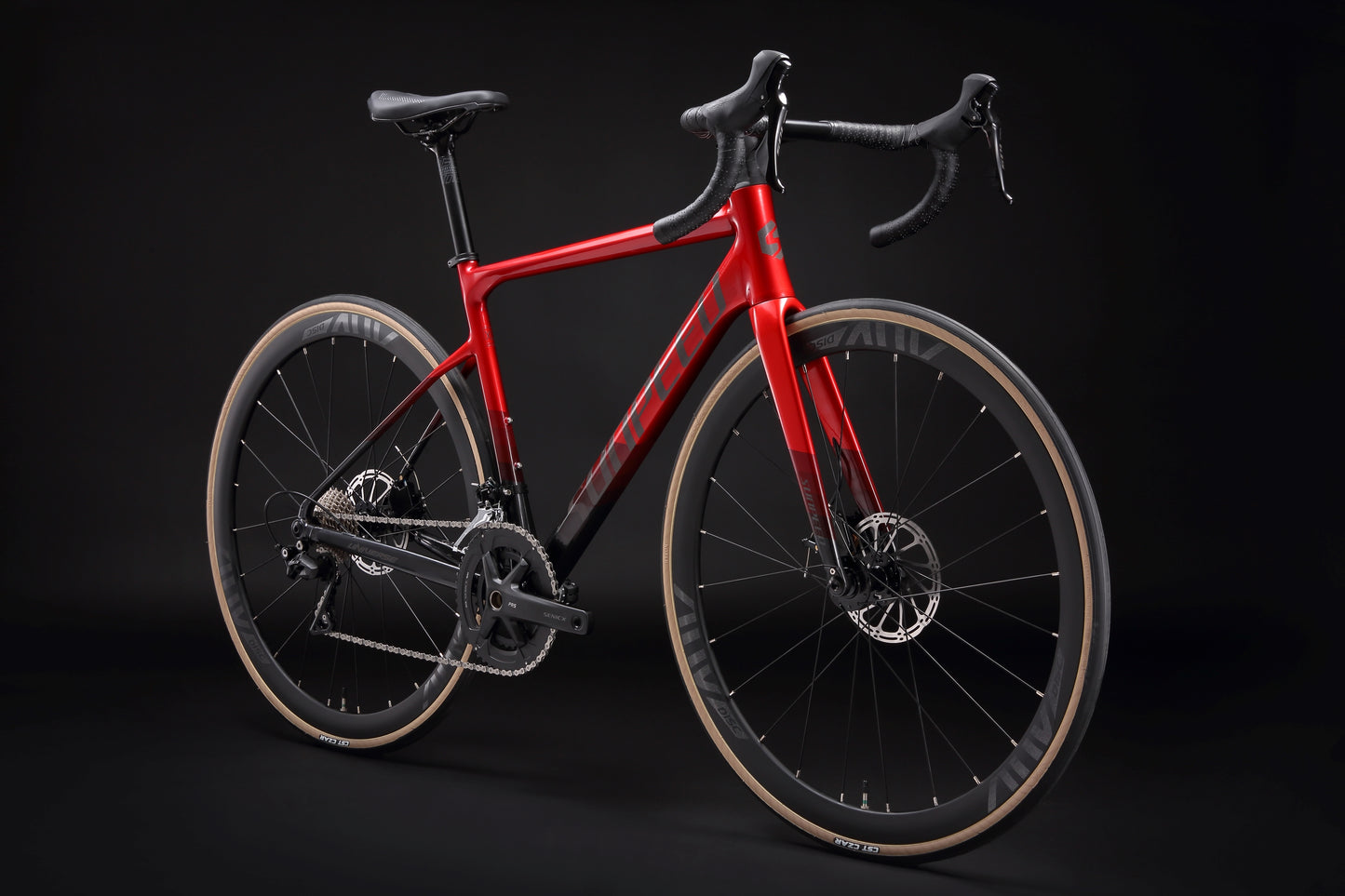

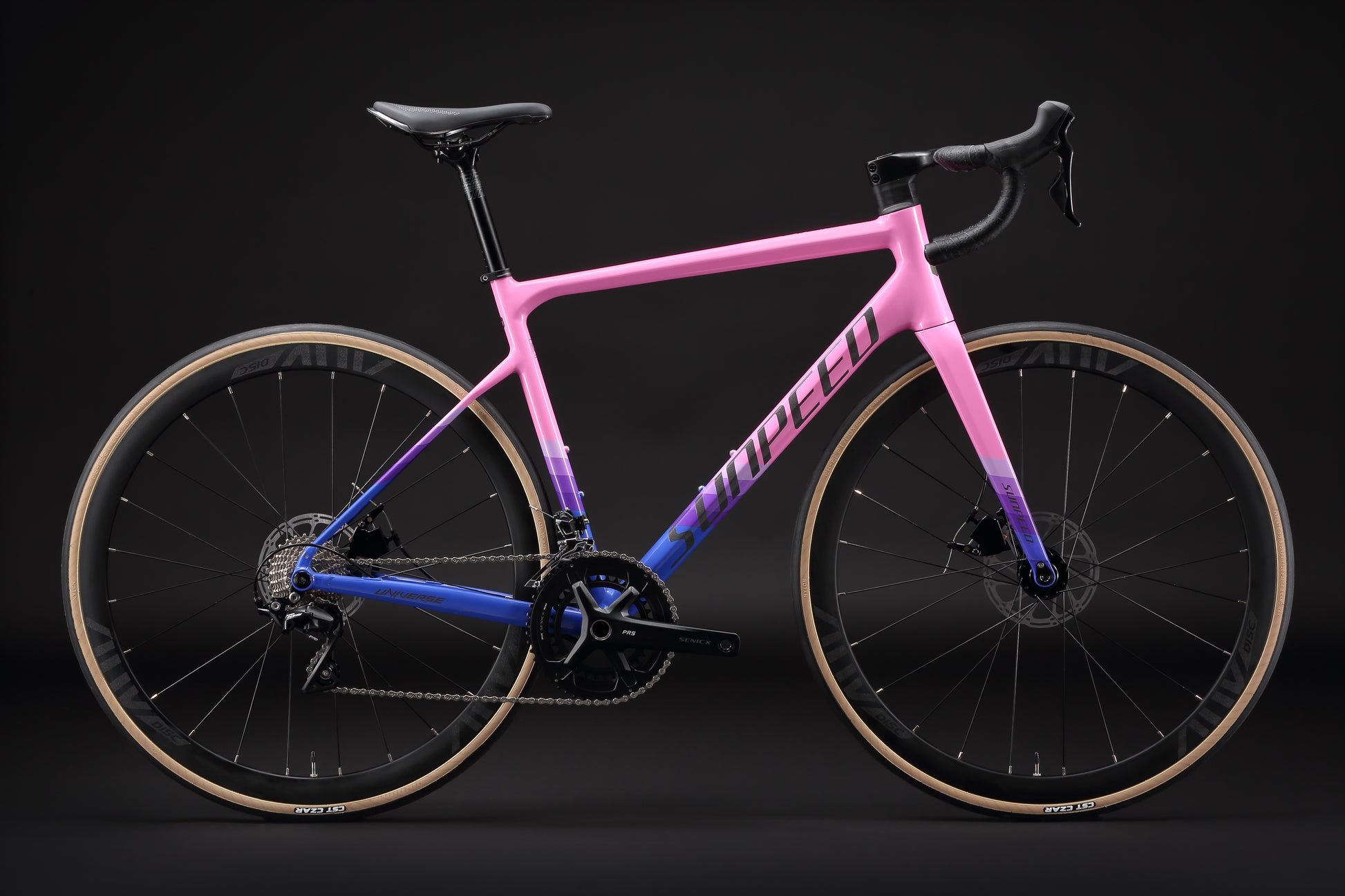

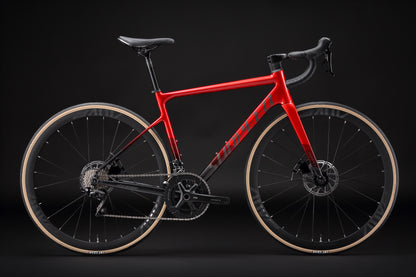

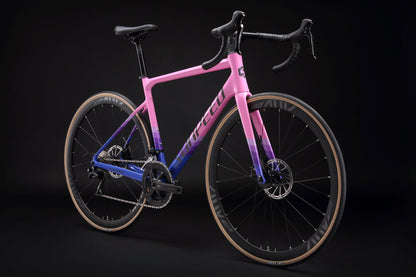

Universe 105 Mechanical (11 Speed)
Pickup available at VRIDE Shop
Usually ready in 24 hours
From 9.6kg
Shimano 105 mechanical (11 speed)
30mm deep alloy rims

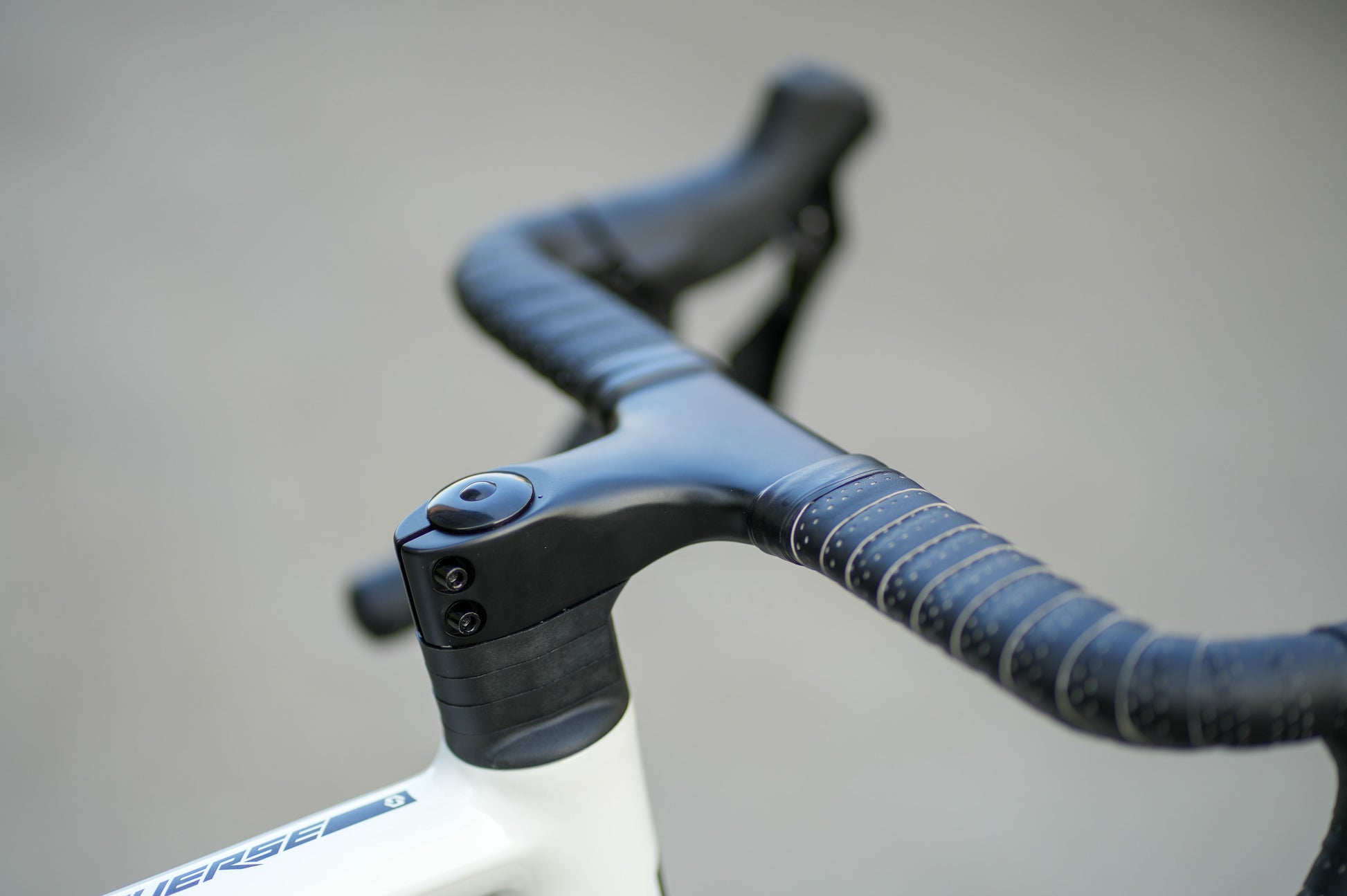

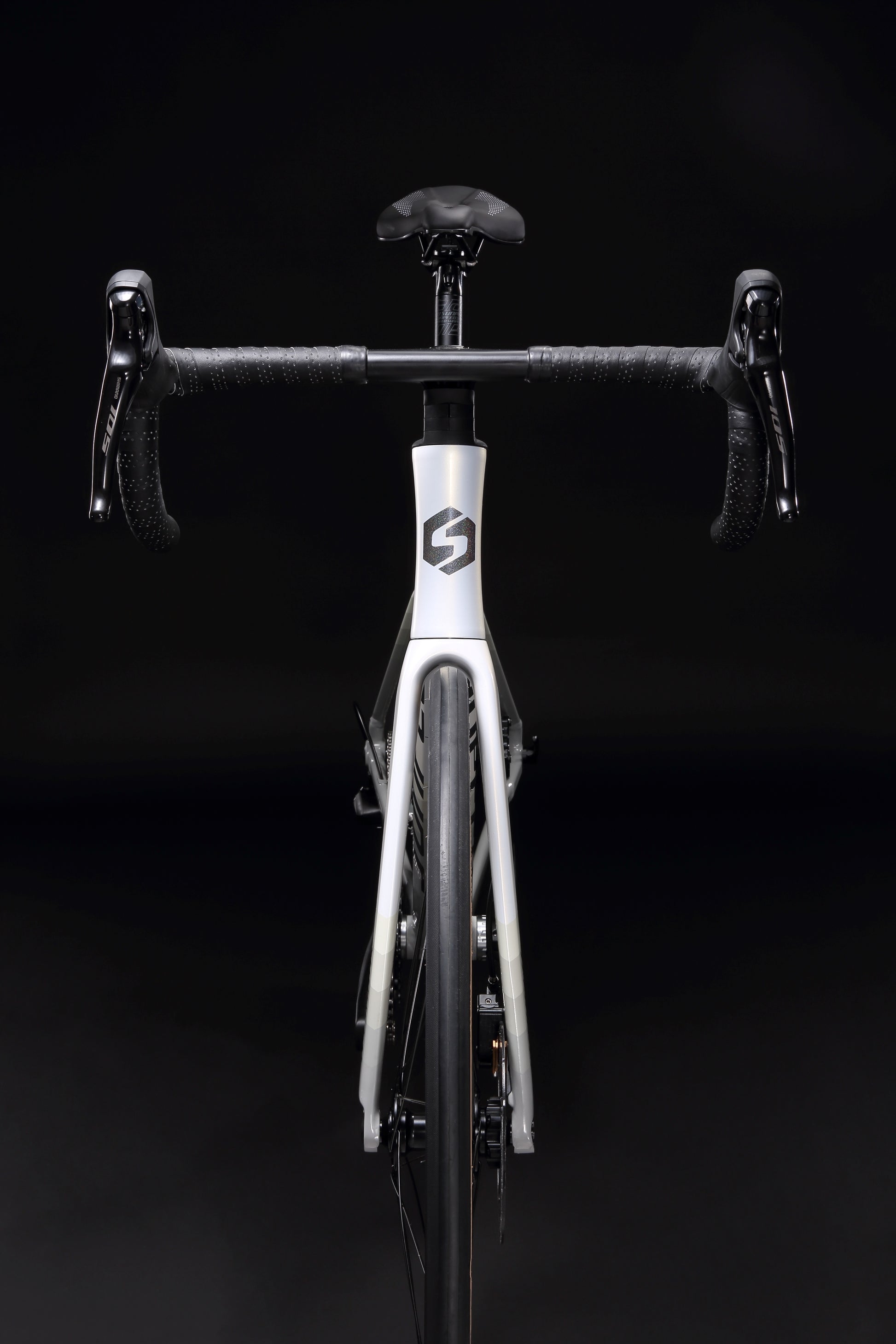

One piece integrated carbon cockpit
Up to 30mm max. recommended tyre clearance
Semi-hydraulic disc brakes
Ultralight Aluminium Frame

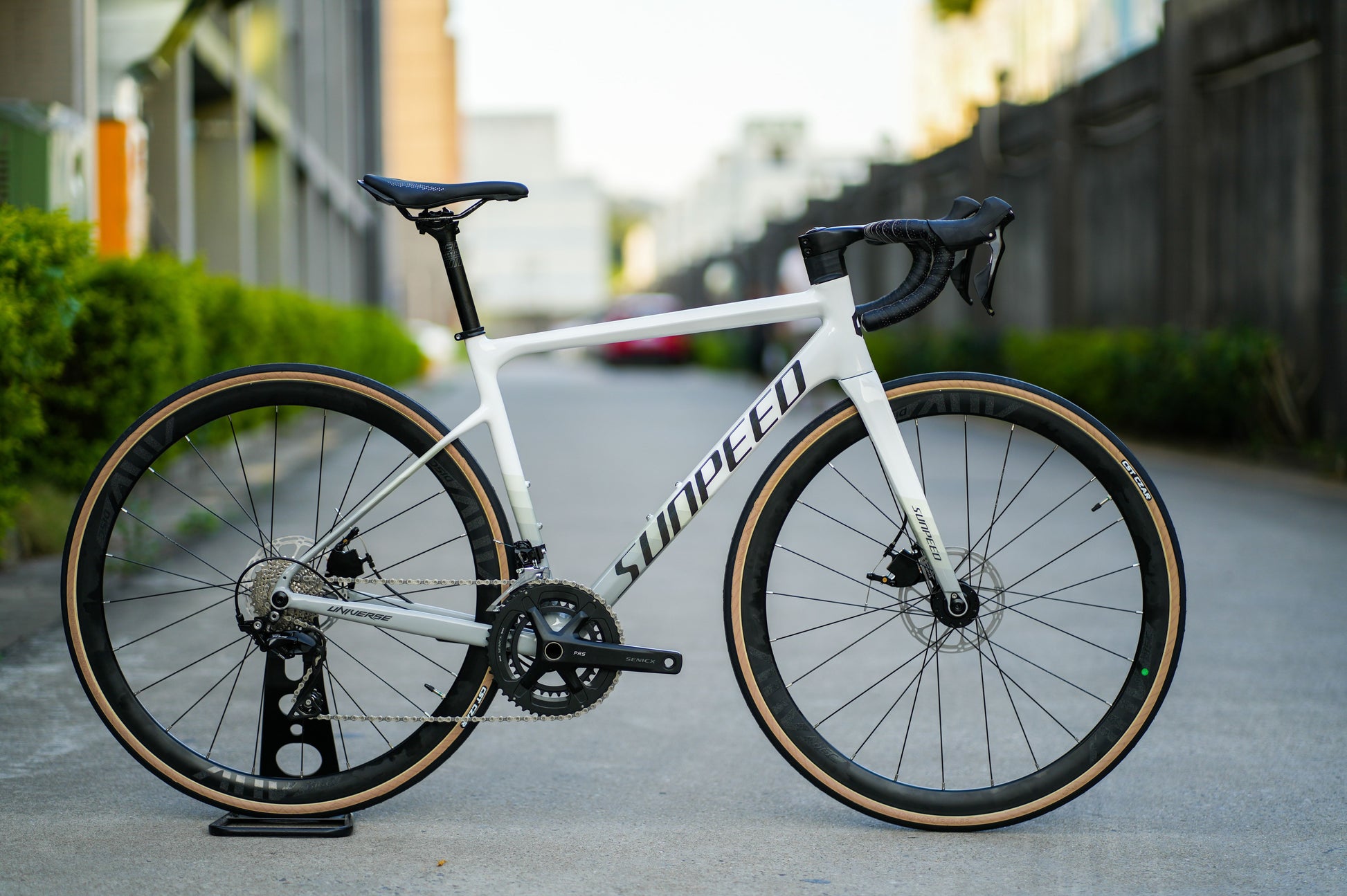

Universe 105 Mechanical (11 Speed)

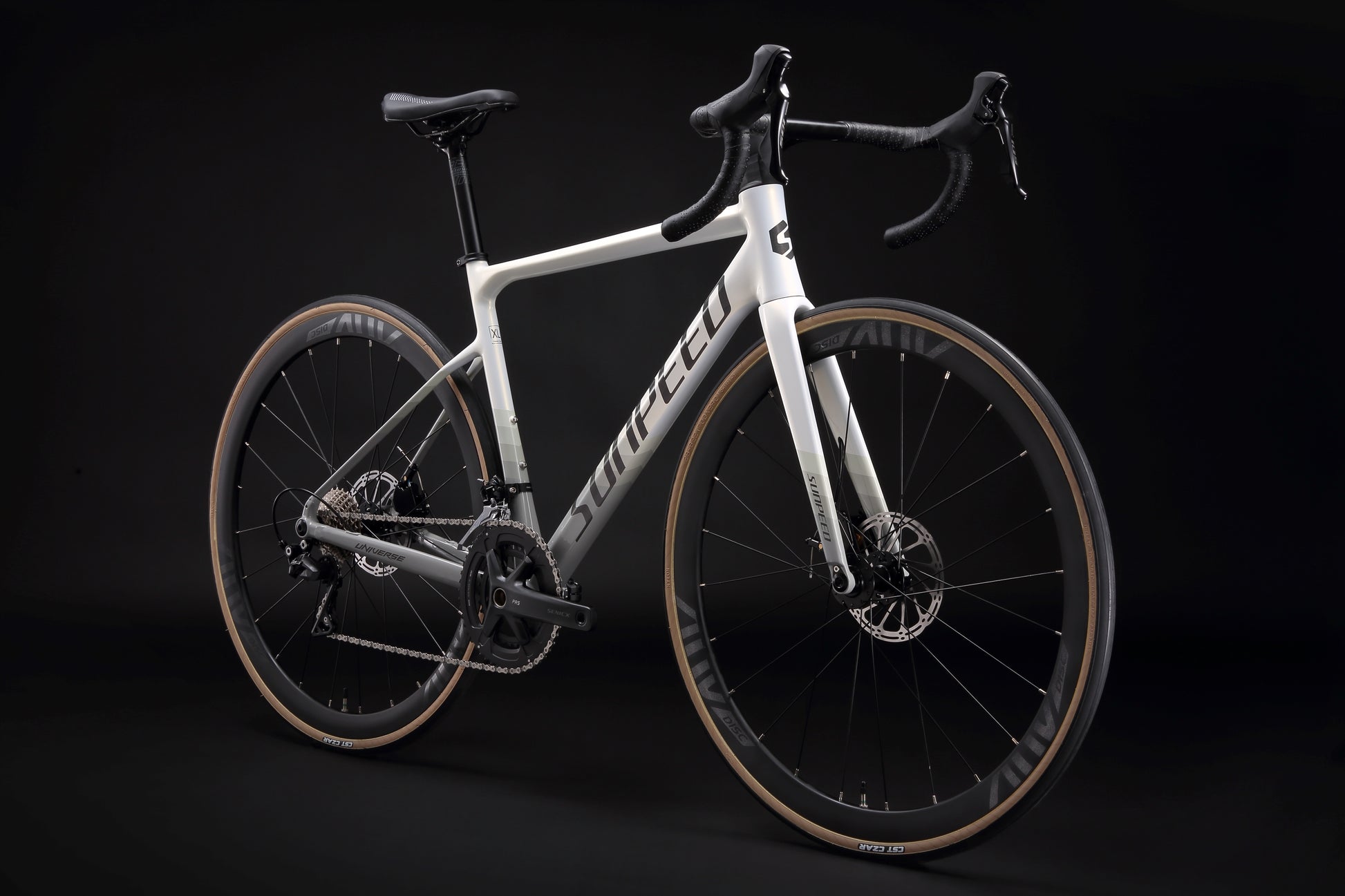

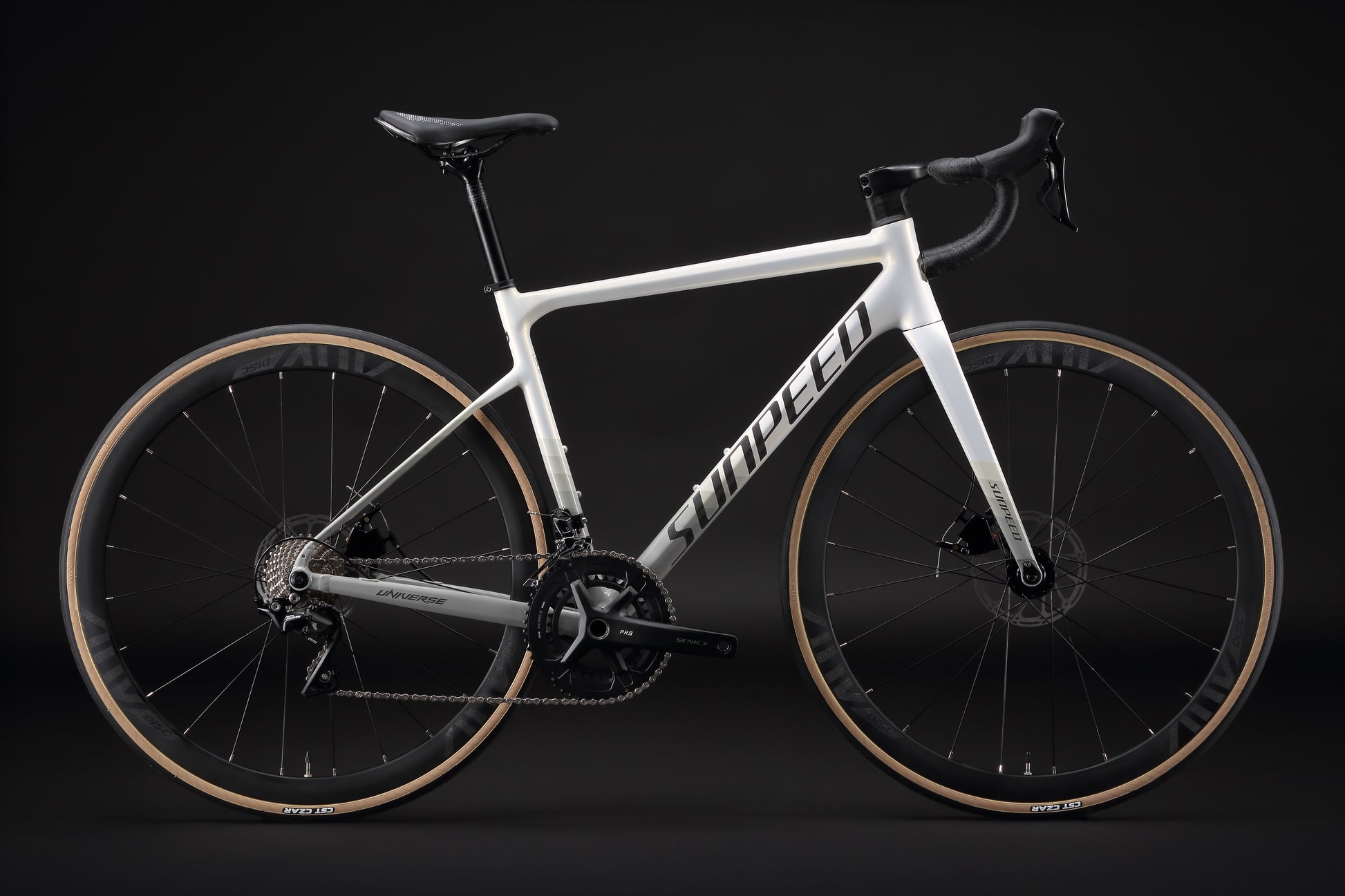

Frame Size: LColour: White/Grey
Power Boost™ Fast Charge
Ride further without waiting. Our high-performance eBike charges in record time, so you spend less time plugged in and more time on the road. A smart battery system with advanced protection keeps your ride smooth, safe, and ready for every journey.
Specifications
Frameset
Frame

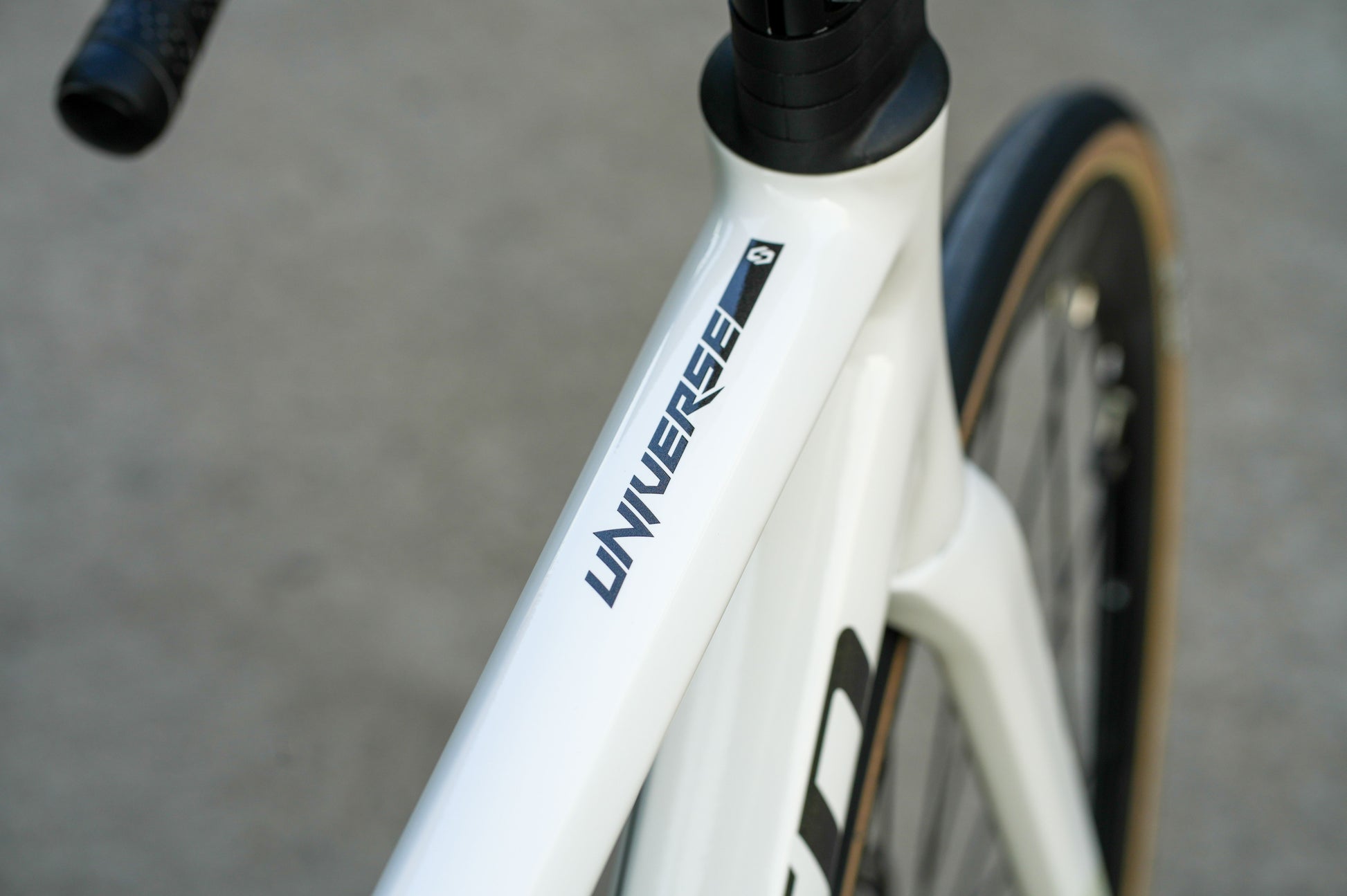

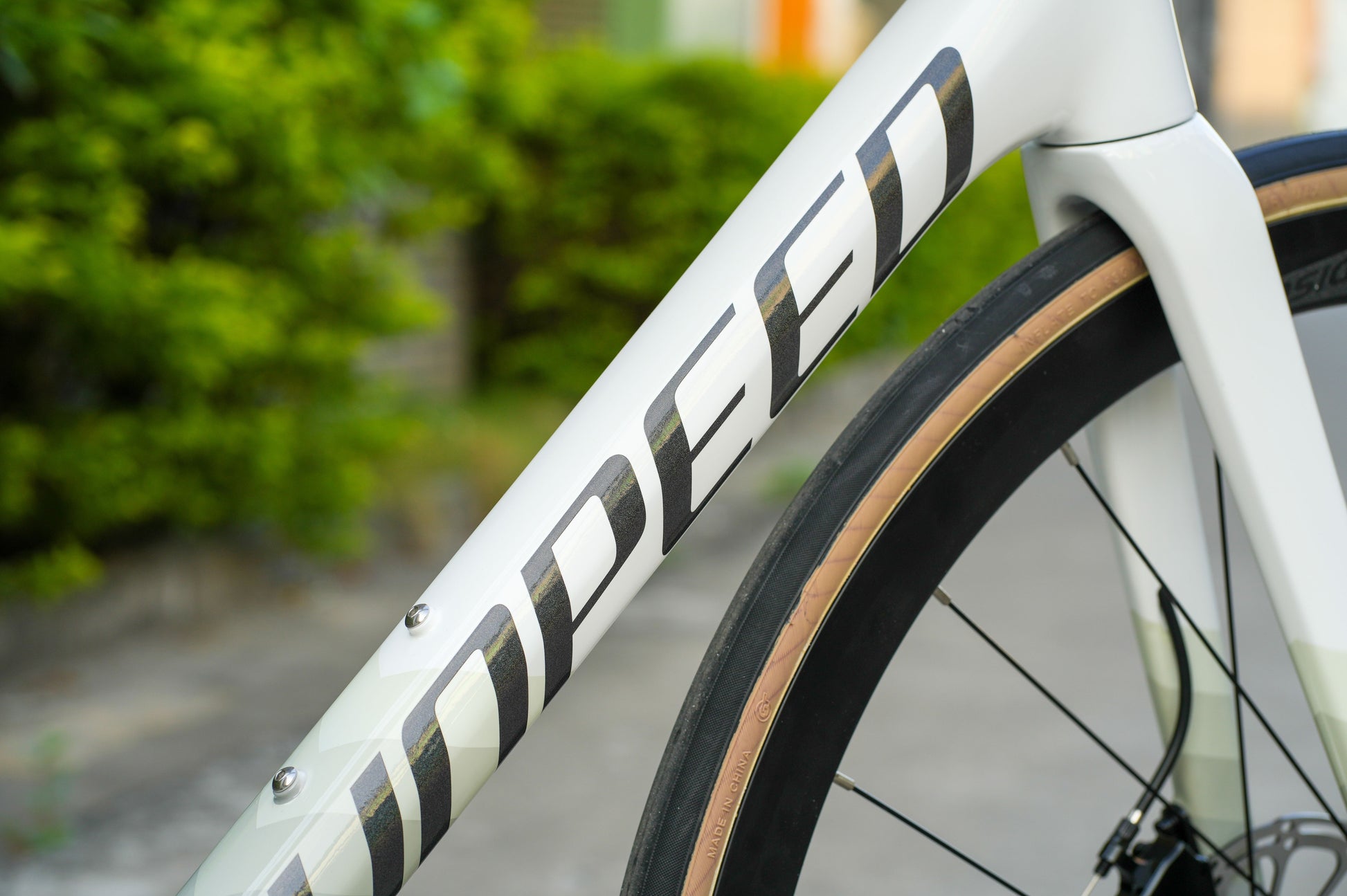

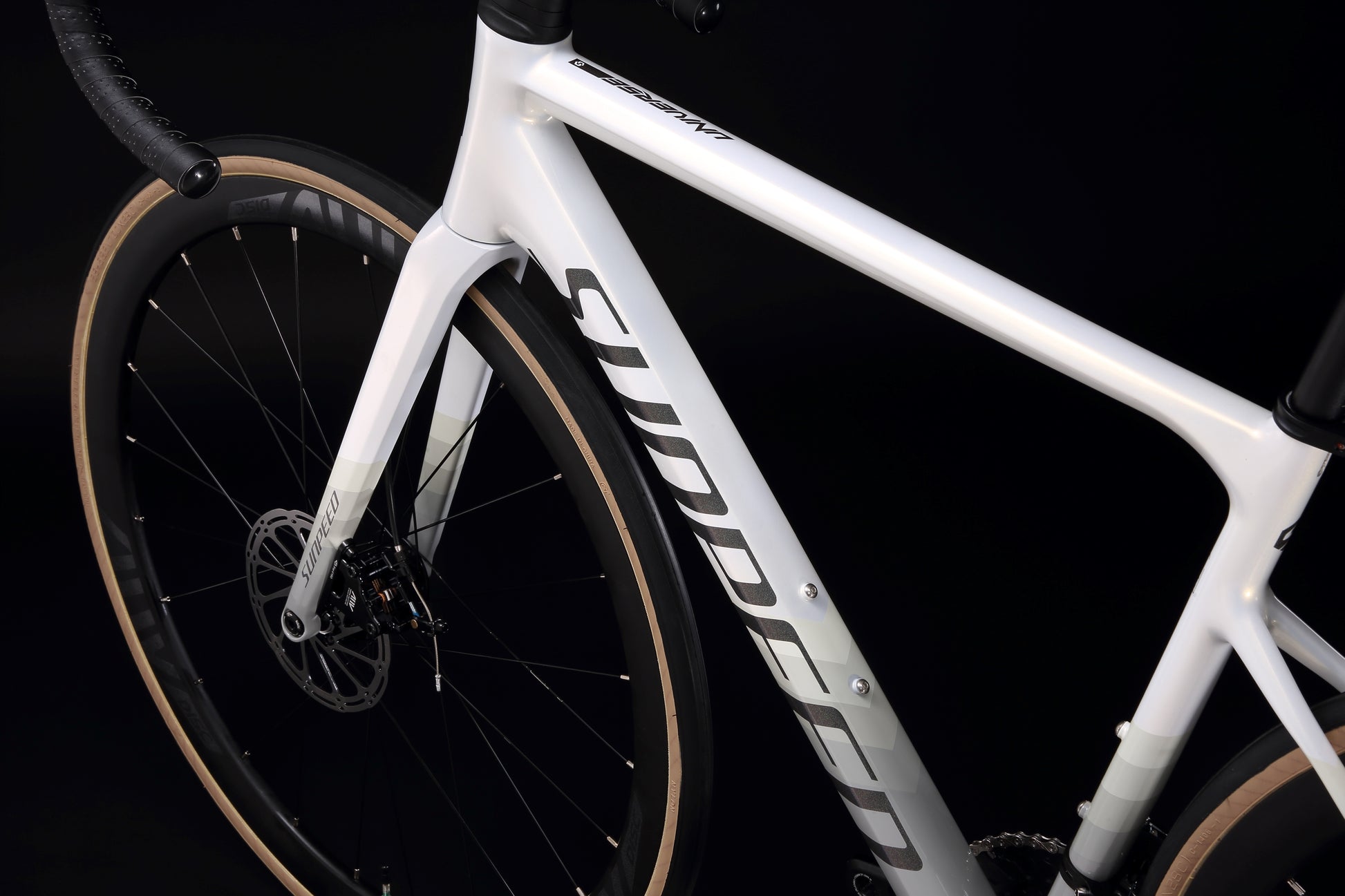

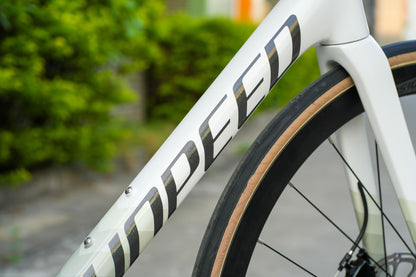

SUNPEED Universe Ultralight Aluminium Frame, Internal Cable Routing
Fork
SUNPEED Universe Carbon Fork, Internal Cable Routing

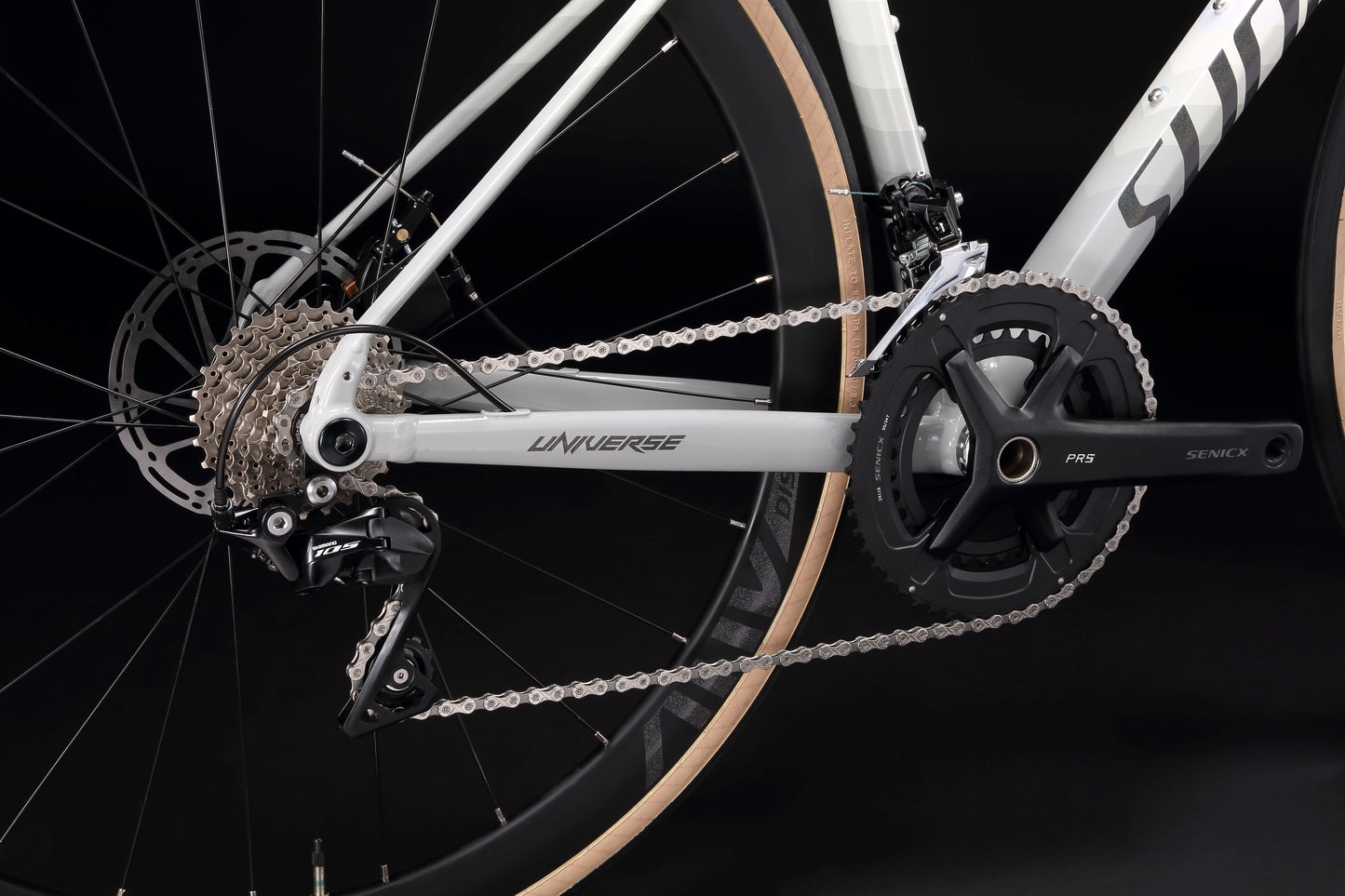

Drivetrain
Shifters
Shimano 105 R7000 22 Speed
Front Derailleur
Shimano 105 R7000 2 Speed
Rear Derailleur

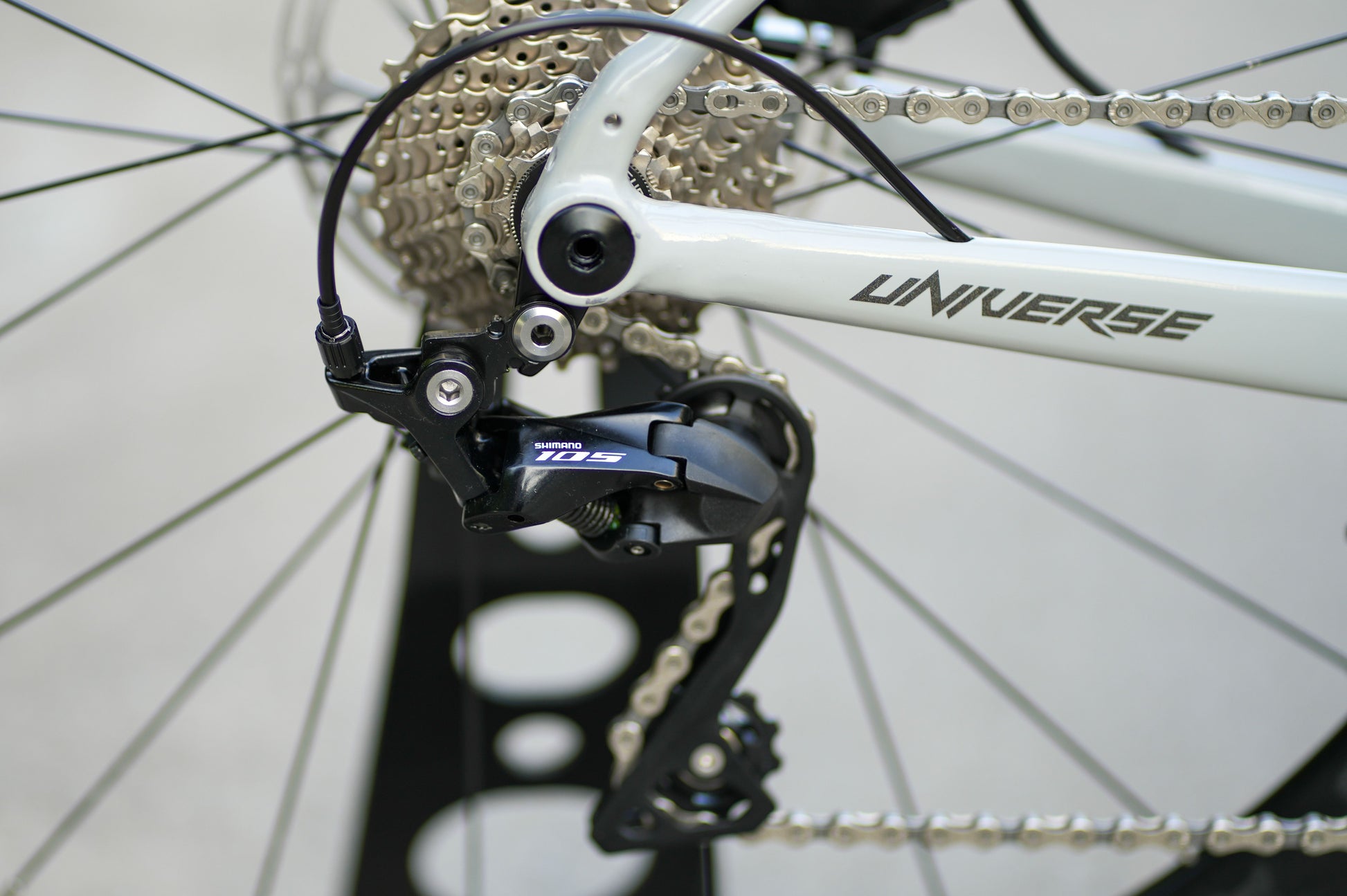

Shimano 105 R7000 11 Speed
Cassette
Sunshine CS-HG11R 11-28T 22 Speed
Crankset

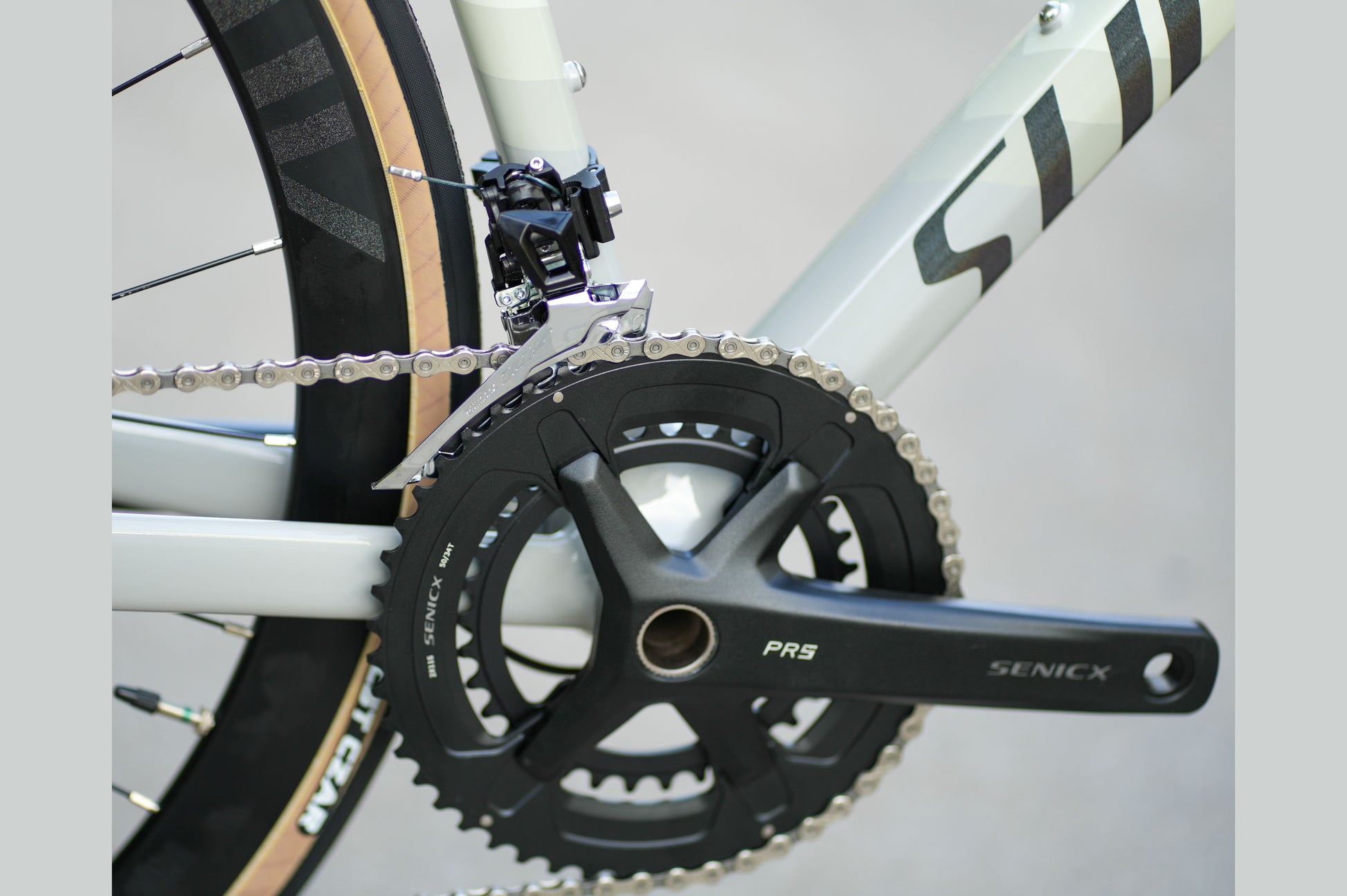

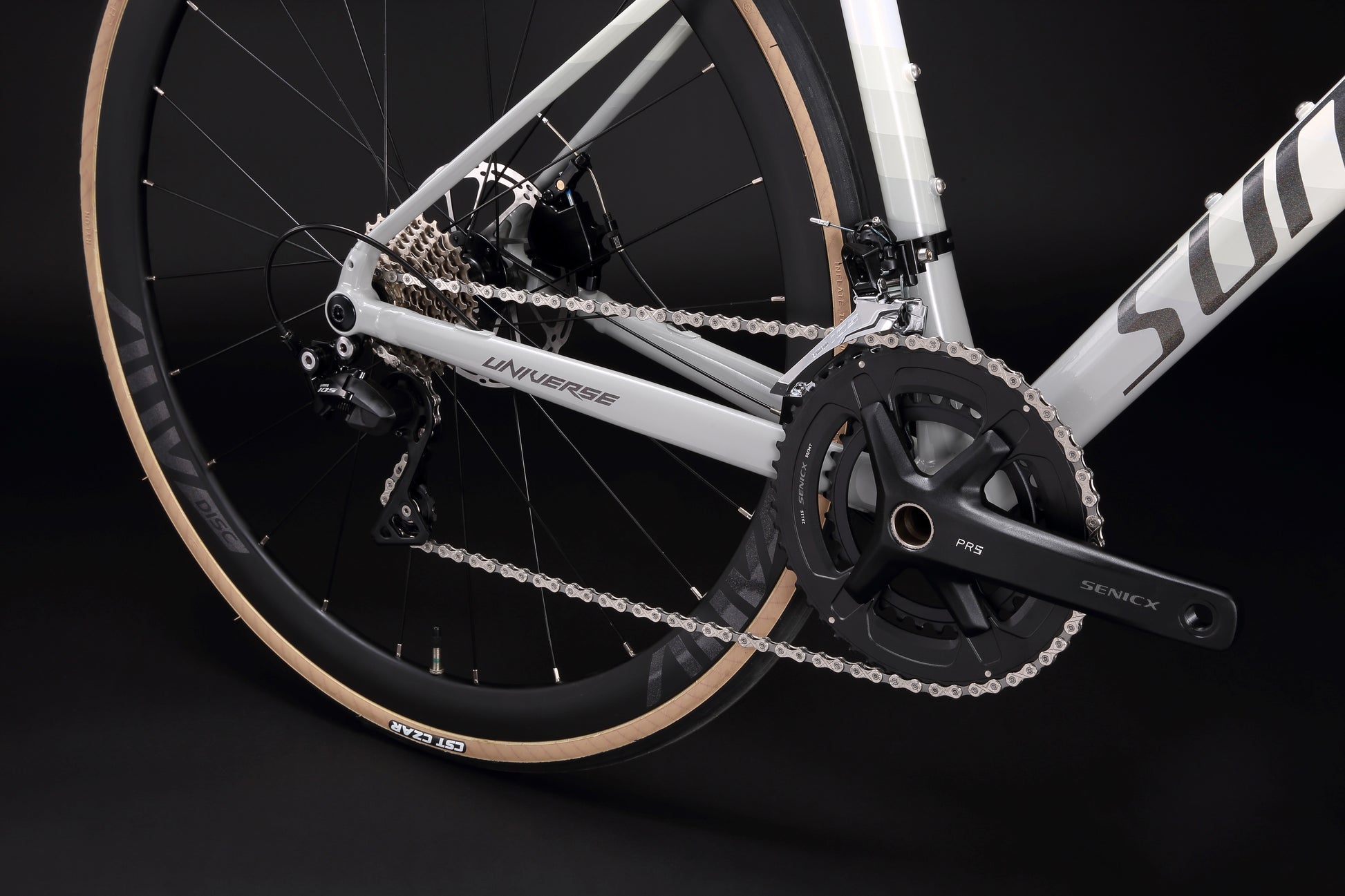

Senicx PR5 Integrated Alloy TT 50/34
Bottom Bracket
Senicx BB-BSA24R
Chain
KMC X11
Brakes
Brakes

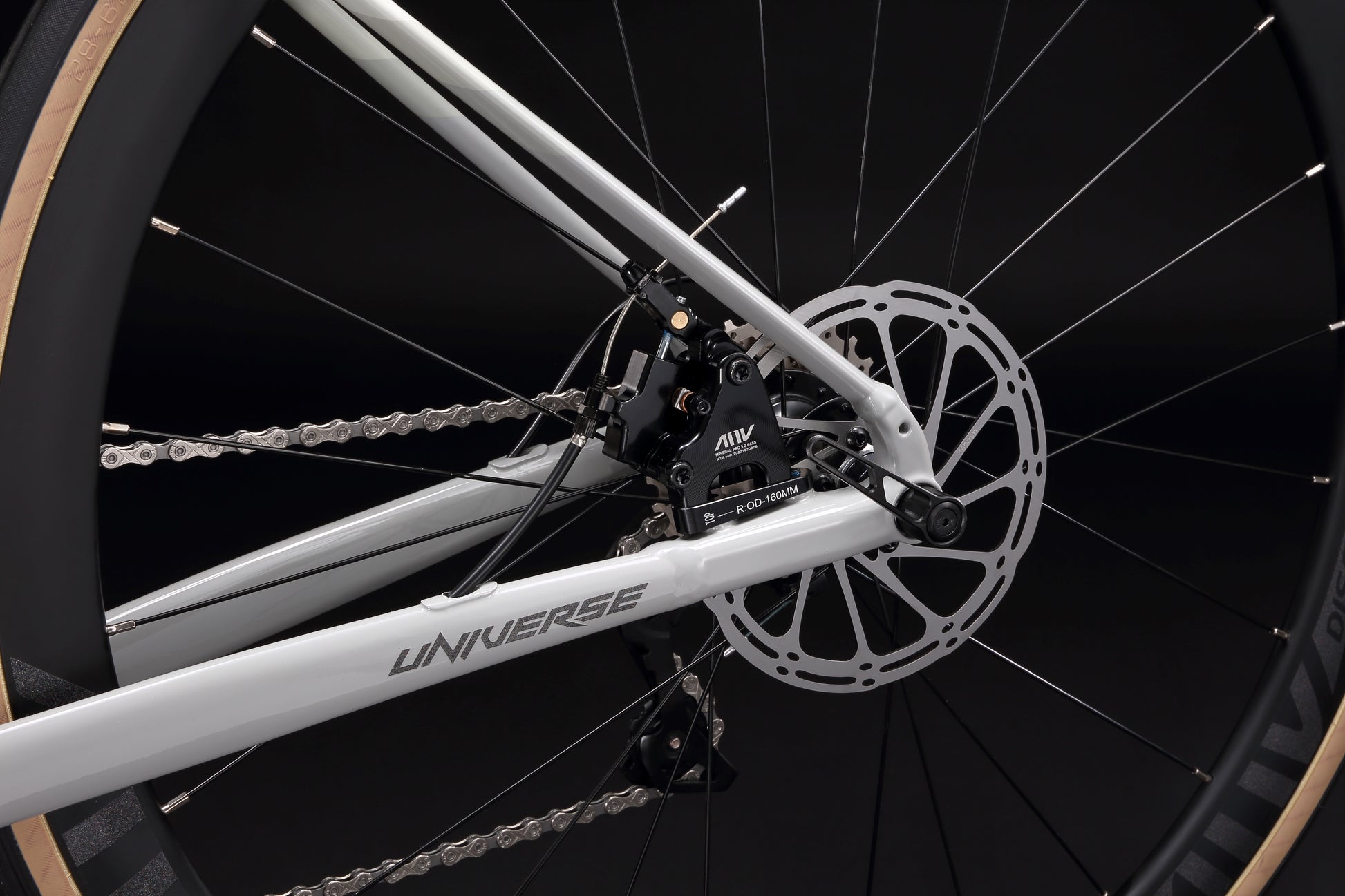

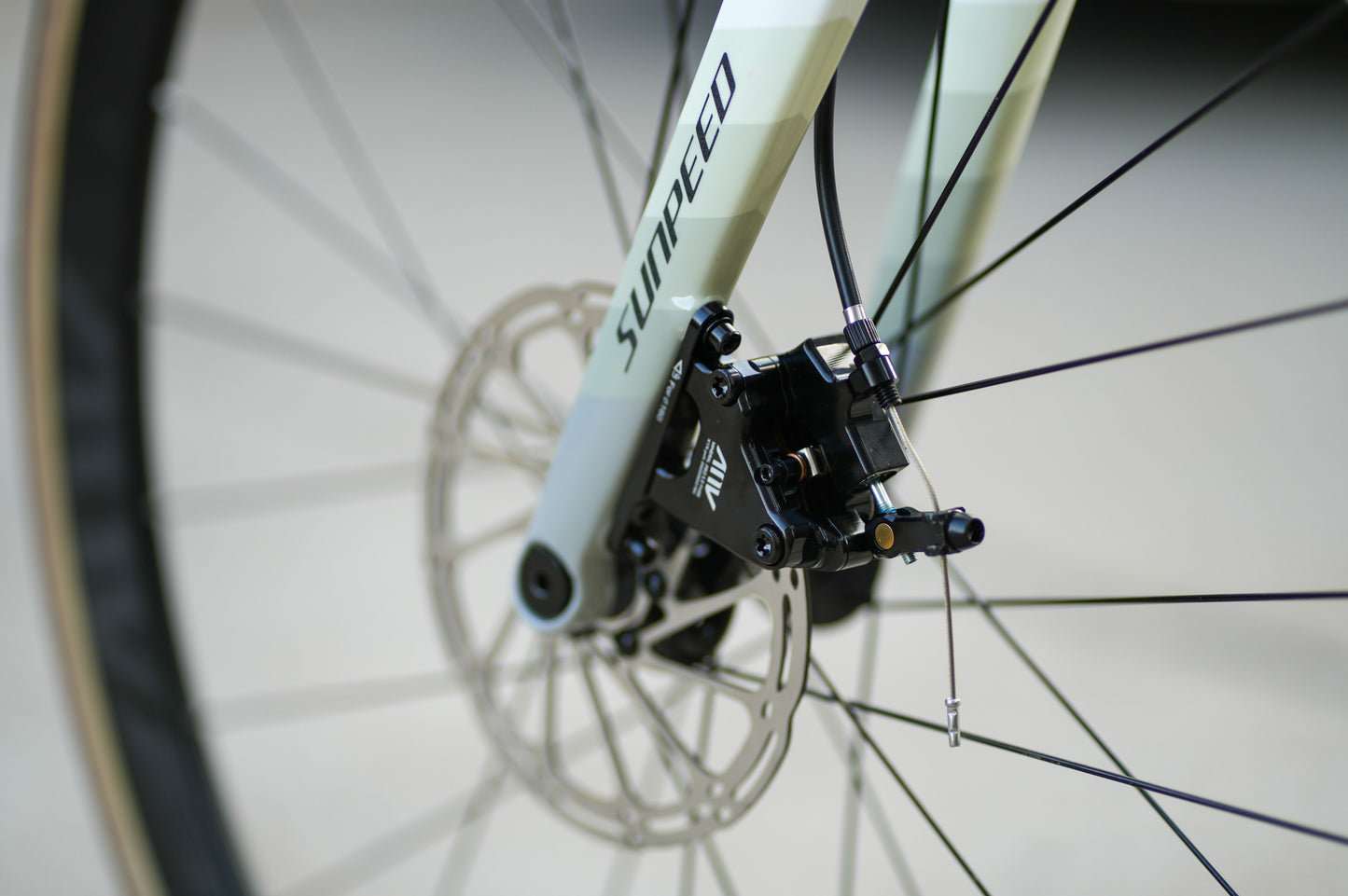

ANV 5.0 Semi-Hydraulic Disc Brakes, 160mm
Brake Levers
Shimano 105 R7000
Wheels & Tyres
Hubs
Solon M203 Q12 24H Axle 2(F) / 4(R) Sealed Bearings
Spokes
SLE Stainless Steel Competition Straight Pull
Rims
ANV 30mm Aluminium Disc Brake Rims
Tyres
CST CZAR 700 x 25c Skinwall F/V Tyres
Cockpit & Finishing Kit
Seatpost
SUNPEED Universe Aluminium Seat Post
Seat Clamp
SUNPEED Universe Aluminium Seat Post Clamp
Saddle
ANV Aluminium Short Nose Saddle
Headset
GINEYEA Completely Sealed Cartridge Bearings
Handlebar

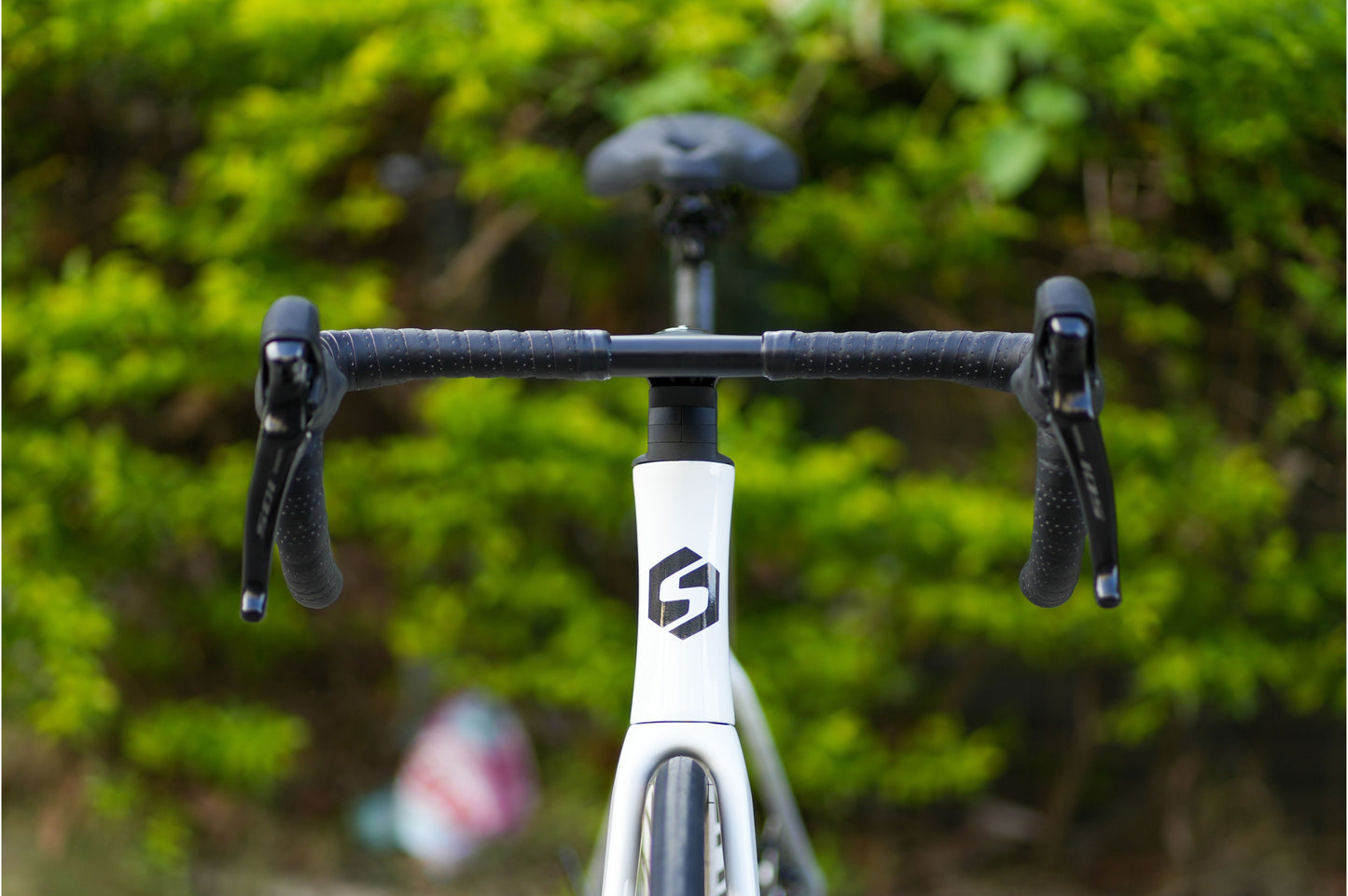

ANV Aluminium Integrated Cable Routing Handlebar
Handlebar Tape / Grips
High Elastic Race Level PU+EVA
Pedals
WELLGO DU Aluminium Pedals
Weight
Net Weight
9.6kg
Specifications may vary by size and configuration and are subject to change without notice.
Find Your Size
Use your height as a starting point when choosing your frame size.
S
Recommended Height
150-158 cm
M
Recommended Height
158-165 cm
L
Recommended Height
165-175 cm
XL
Recommended Height
175-185 cm
XXL
Recommended Height
185-195 cm
Size recommendations are a guide only. Rider proportions, flexibility and preferred riding position can affect the ideal frame size.

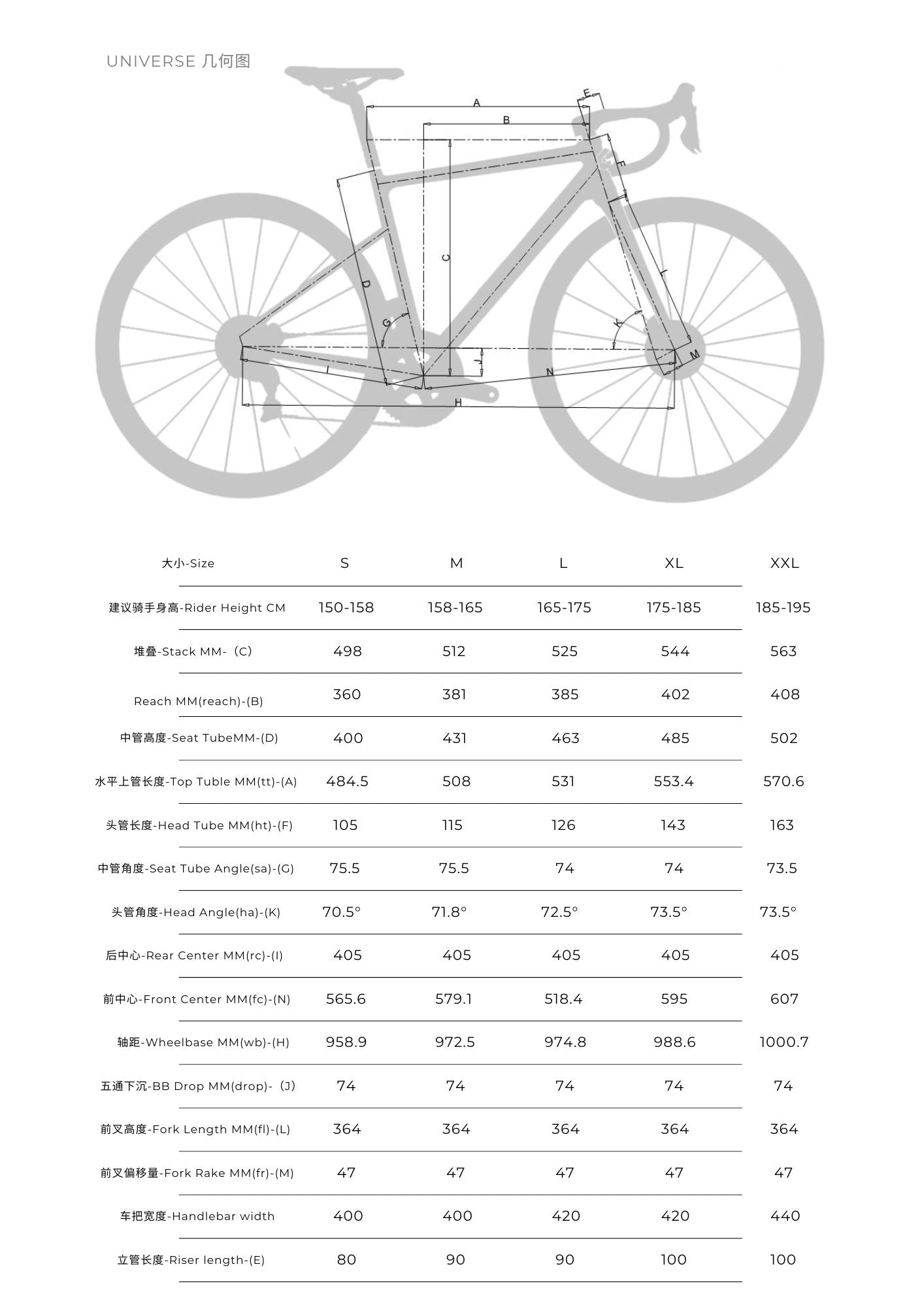

Geometry
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Recommended Rider Height (cm) | 150-158 cm | 158-165 cm | 165-175 cm | 175-185 cm | 185-195 cm |
| Stand Over Height (cm) (O) | |||||
| Stack (mm)-(C) | 498 | 512 | 525 | 544 | 563 |
| Reach (mm)-(B) | 360 | 381 | 385 | 402 | 408 |
| Stack-to-Reach Ratio (STR) | 1.38 | 1.34 | 1.36 | 1.35 | 1.38 |
| Seat Tube (mm)-(D) | 400 | 431 | 463 | 485 | 502 |
| Top Tube (mm)-(A) | 484.5 | 508 | 531 | 553.4 | 570.6 |
| Head Tube (mm)-(F) | 105 | 115 | 126 | 143 | 163 |
| Seat Tube Angle-(G) | 75.5 | 75.5 | 74 | 74 | 73.5 |
| Head Tube Angle-(K) | 70.5 | 71.8 | 72.5 | 73.5 | 73.5 |
| Rear Centre (mm)-(I) | 405 | 405 | 405 | 405 | 405 |
| Front Centre (mm)-(N) | 565.6 | 579.1 | 518.4 | 595 | 607 |
| Wheelbase (mm)-(H) | 958.9 | 972.5 | 974.8 | 988.6 | 1000.7 |
| BB Drop (mm)-(J) | 74 | 74 | 74 | 74 | 74 |
| Fork Length (mm)-(L) | 364 | 364 | 364 | 364 | 364 |
| Fork Rake (mm)-(M) | 47 | 47 | 47 | 47 | 47 |
| Handlebar Width (mm) | 400 | 400 | 420 | 420 | 440 |
| Riser Length (mm)-(E) | 80 | 90 | 90 | 100 | 100 |
Linear frame measurements are in millimetres unless otherwise stated.
