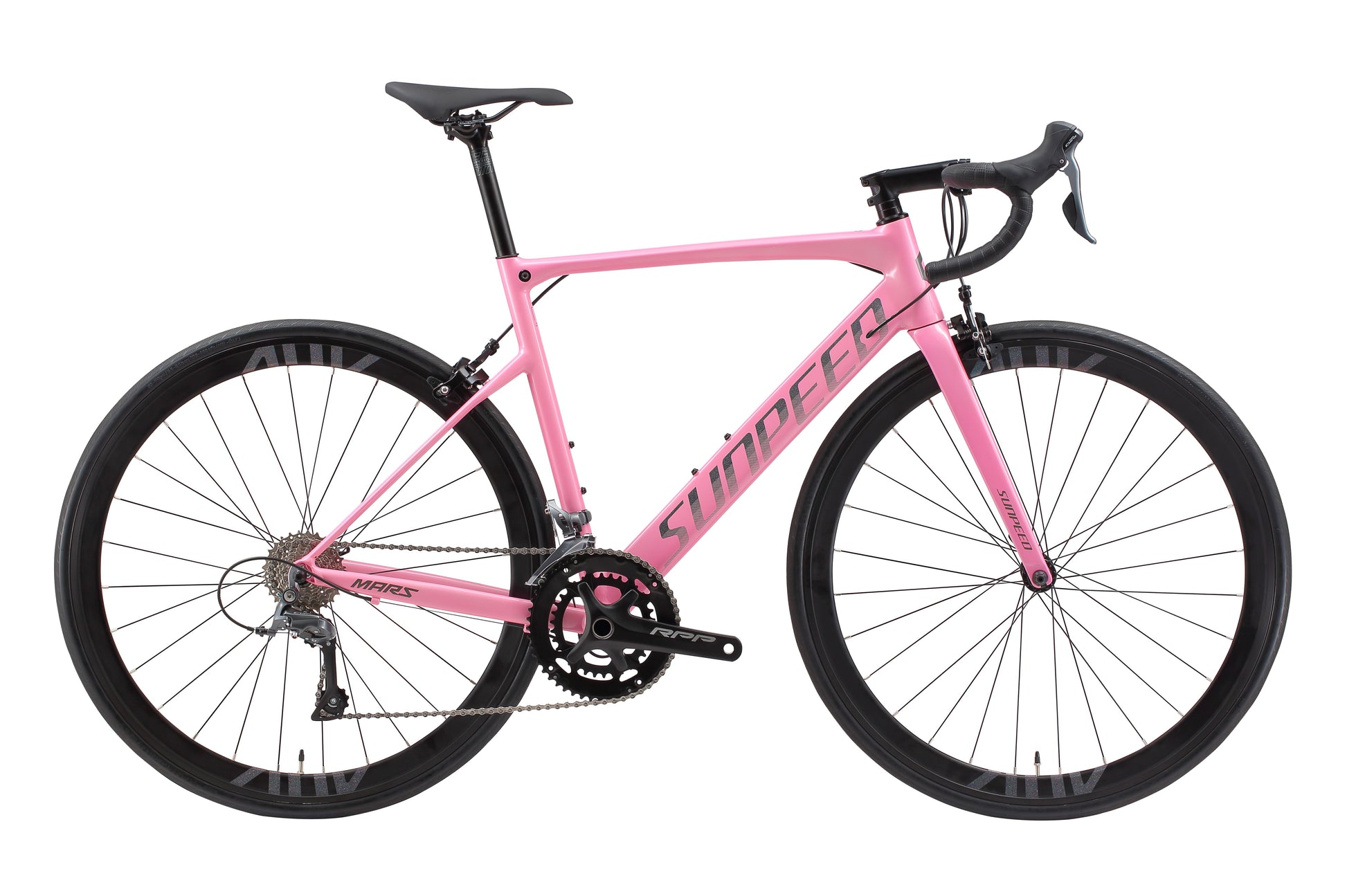

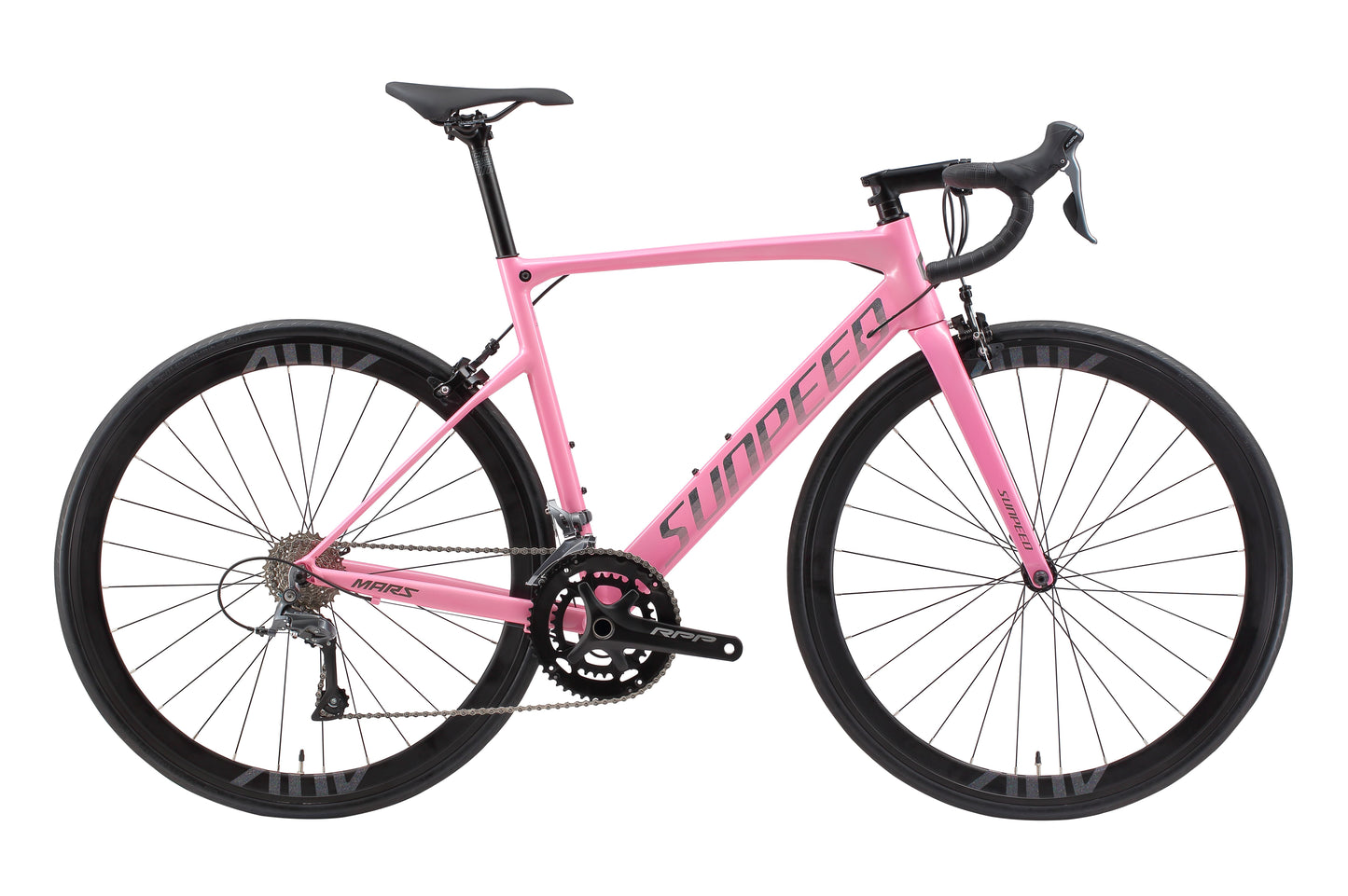

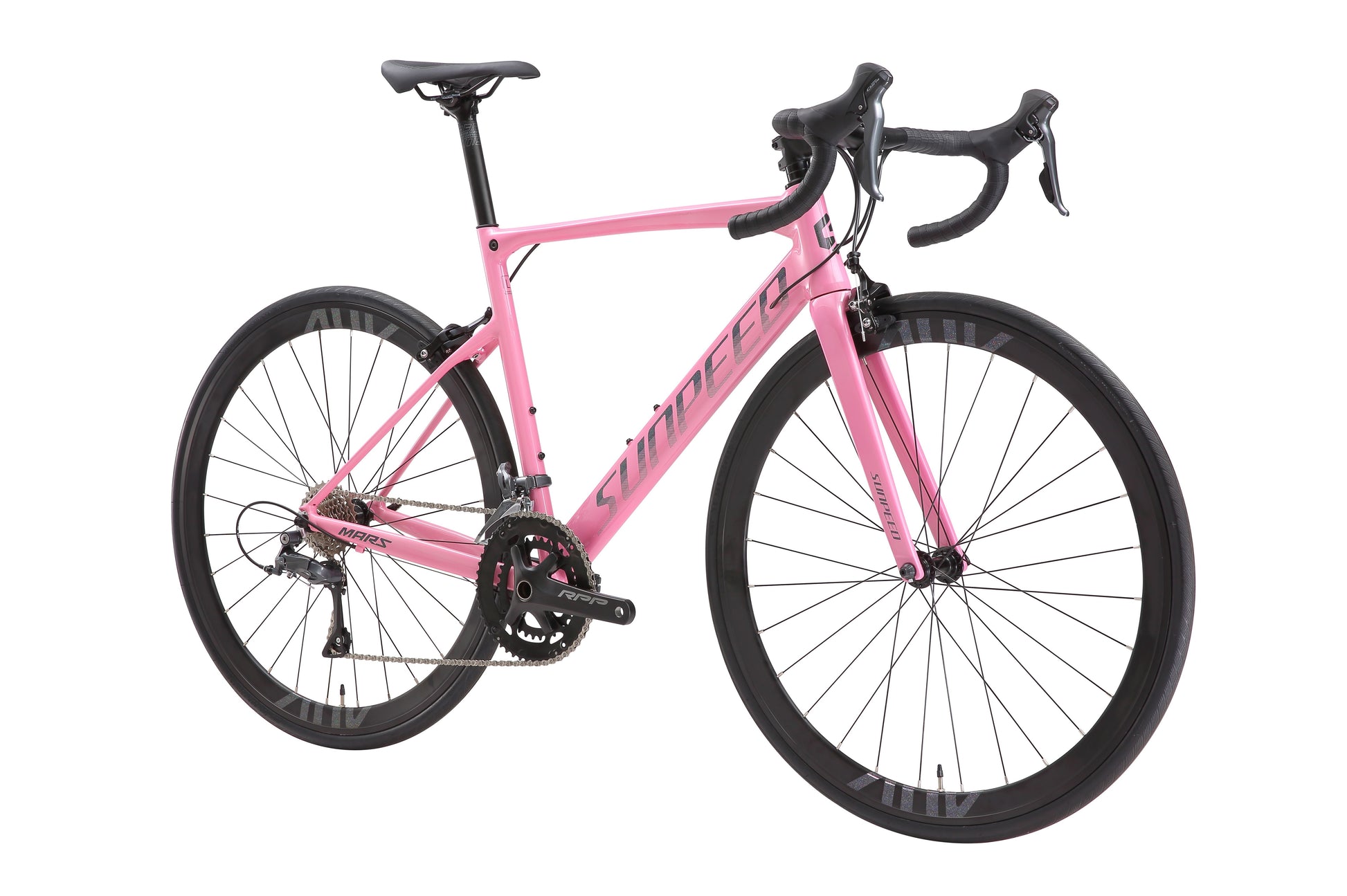

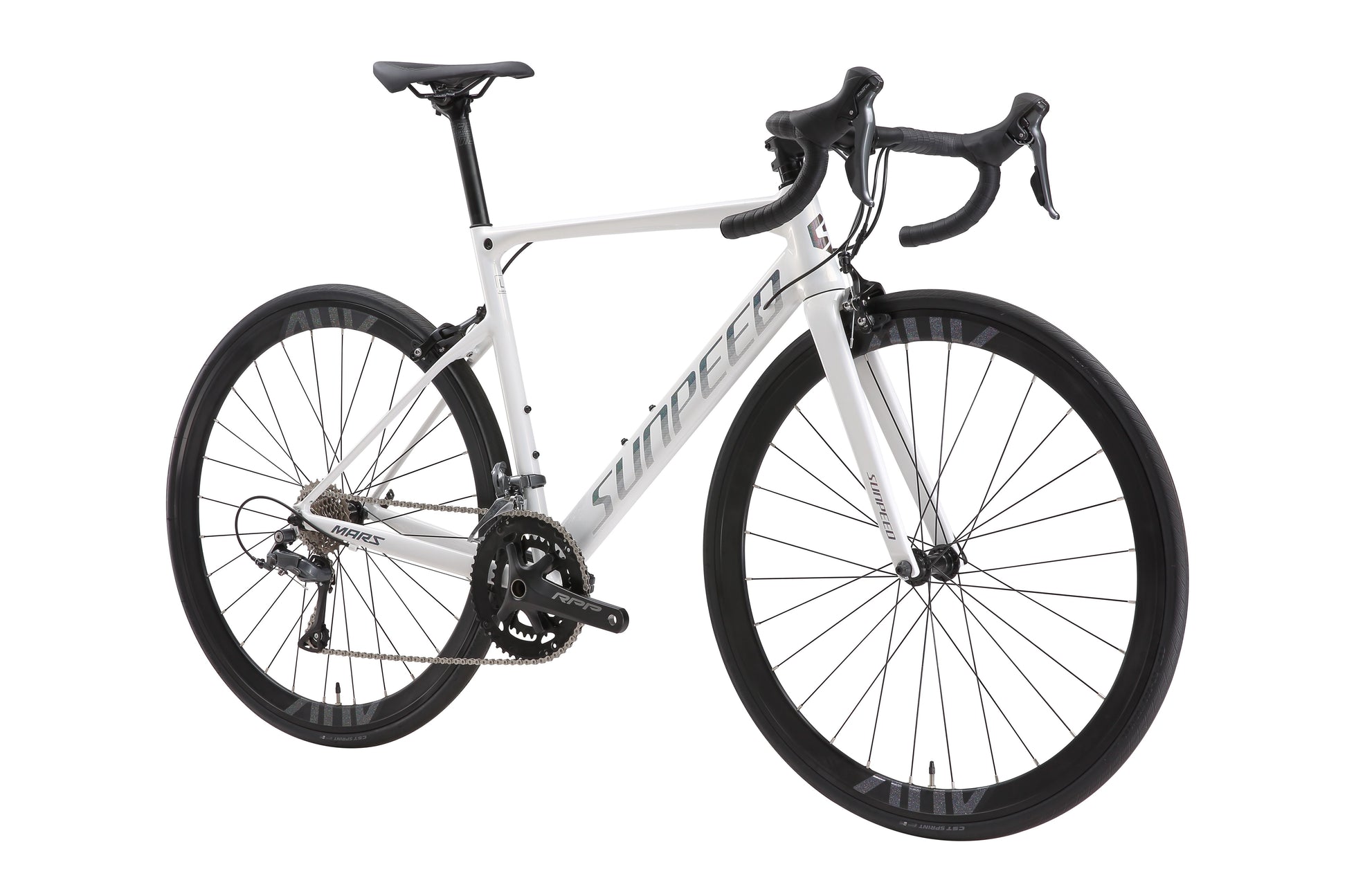

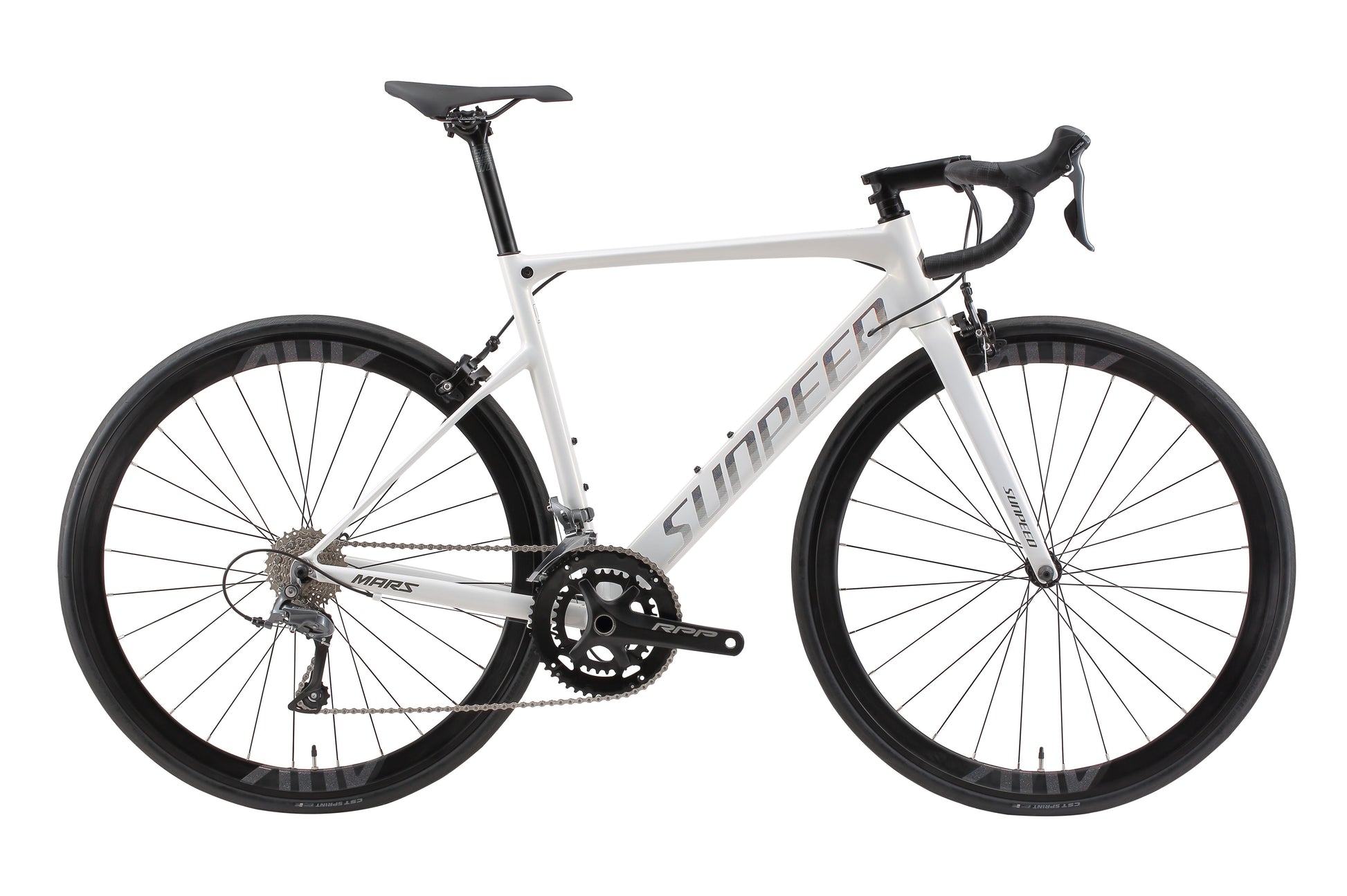

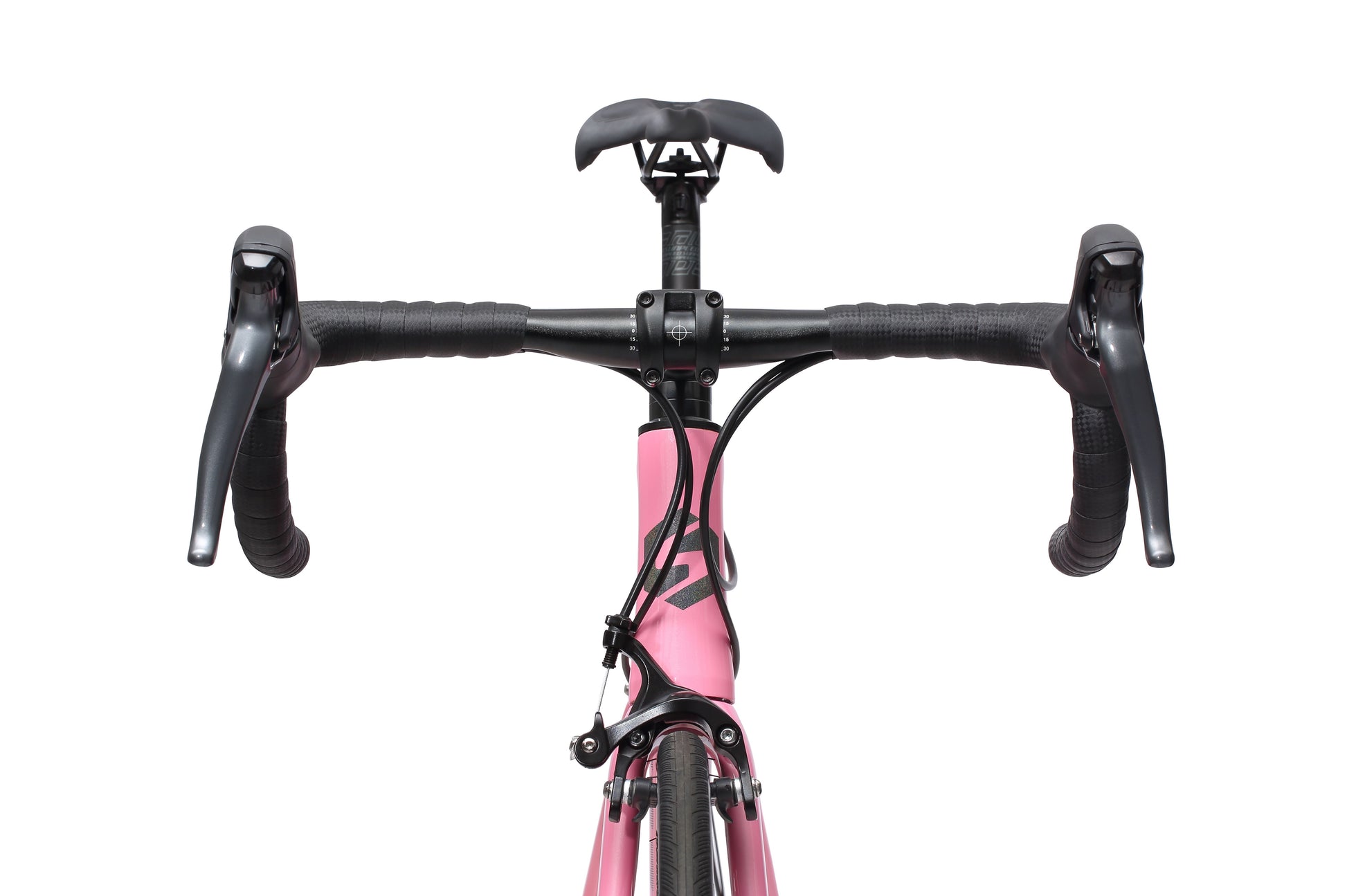

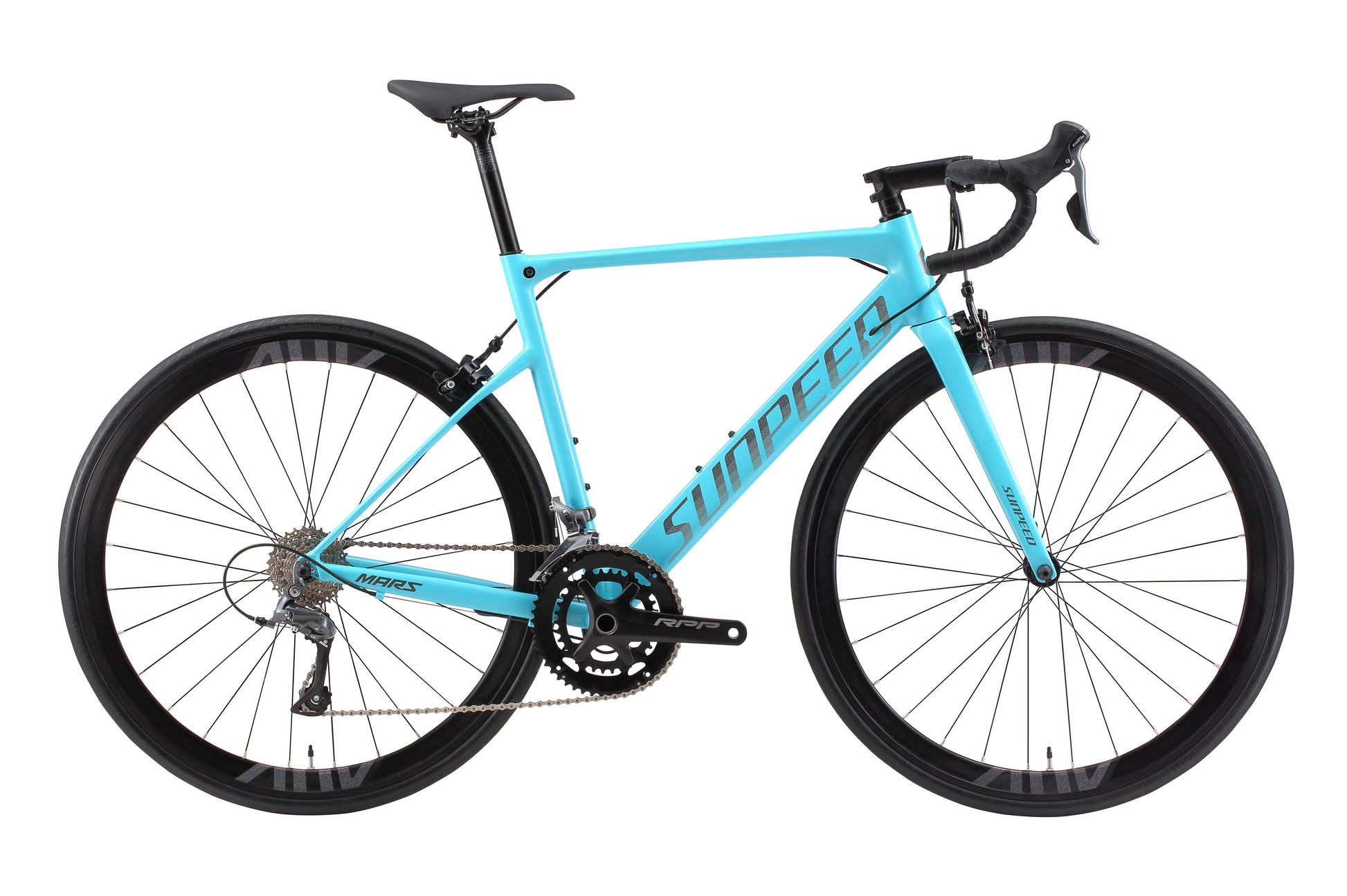

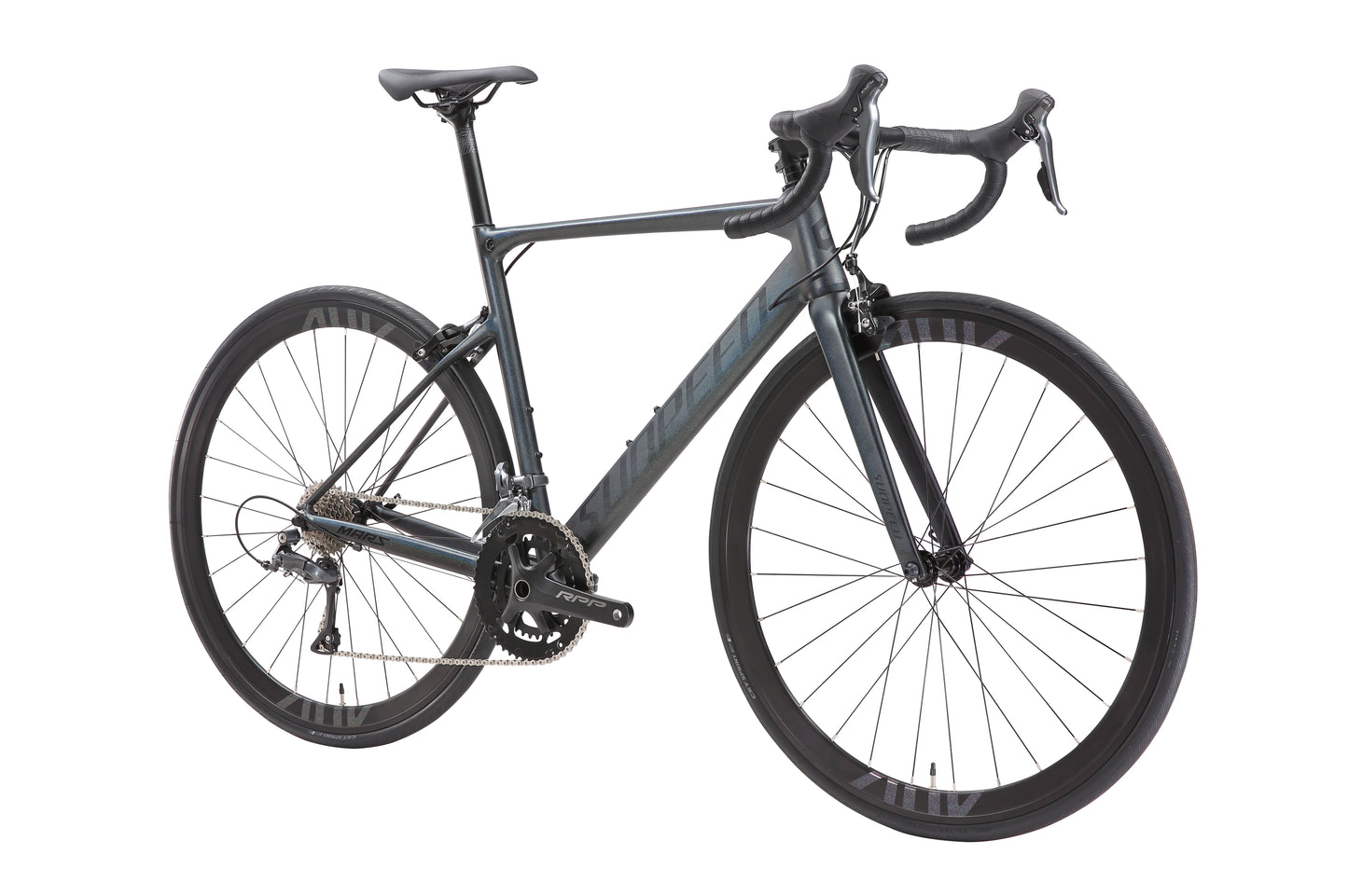

Mars Claris Mechanical (Rim Brake)

£699.99

£489.99

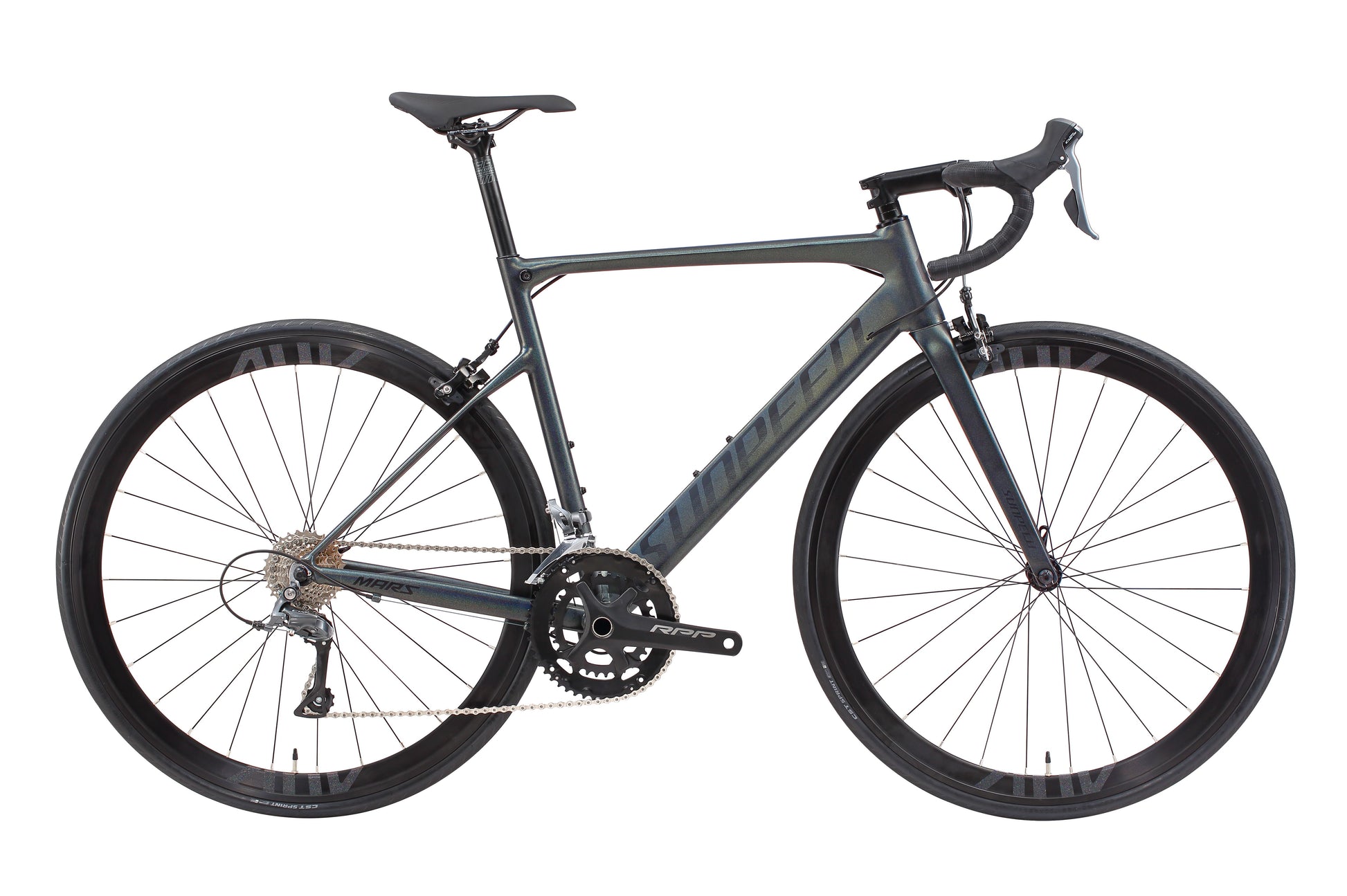

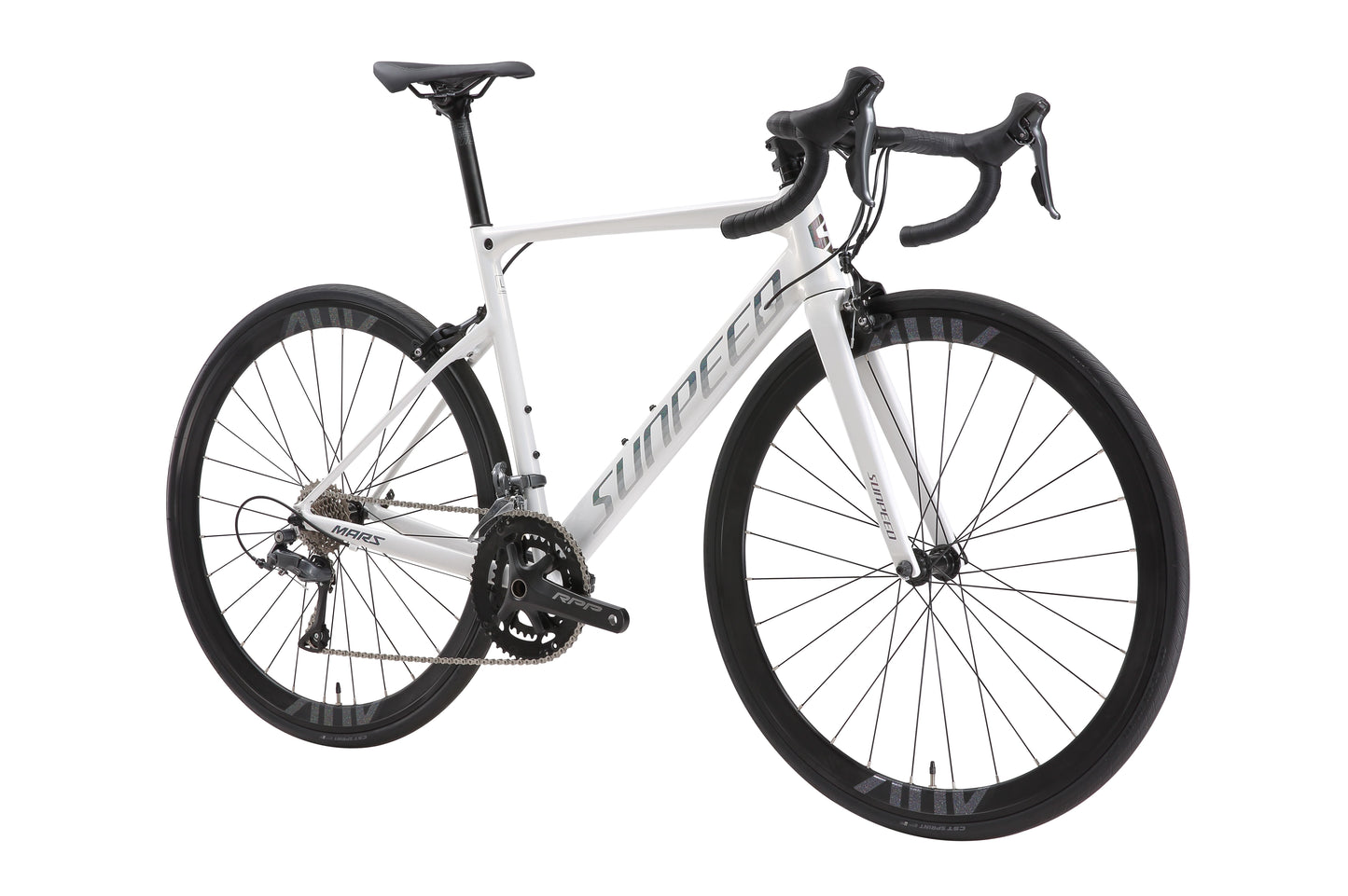

Light, fast and sharp-handling, the SUNPEED Mars is built for riders who want speed and precision. Its lightweight aluminium frame and carbon fork give a responsive ride, and the Shimano Claris R2000 16-speed drivetrain shifts smoothly and dependably. Z-Star dual-pivot rim brakes give confident stopping power, and at just 9.5kg, the Mars picks up speed easily and stays efficient on long rides. Your road, your pace. The Mars is ready.

Frame Size: S

SMLXL

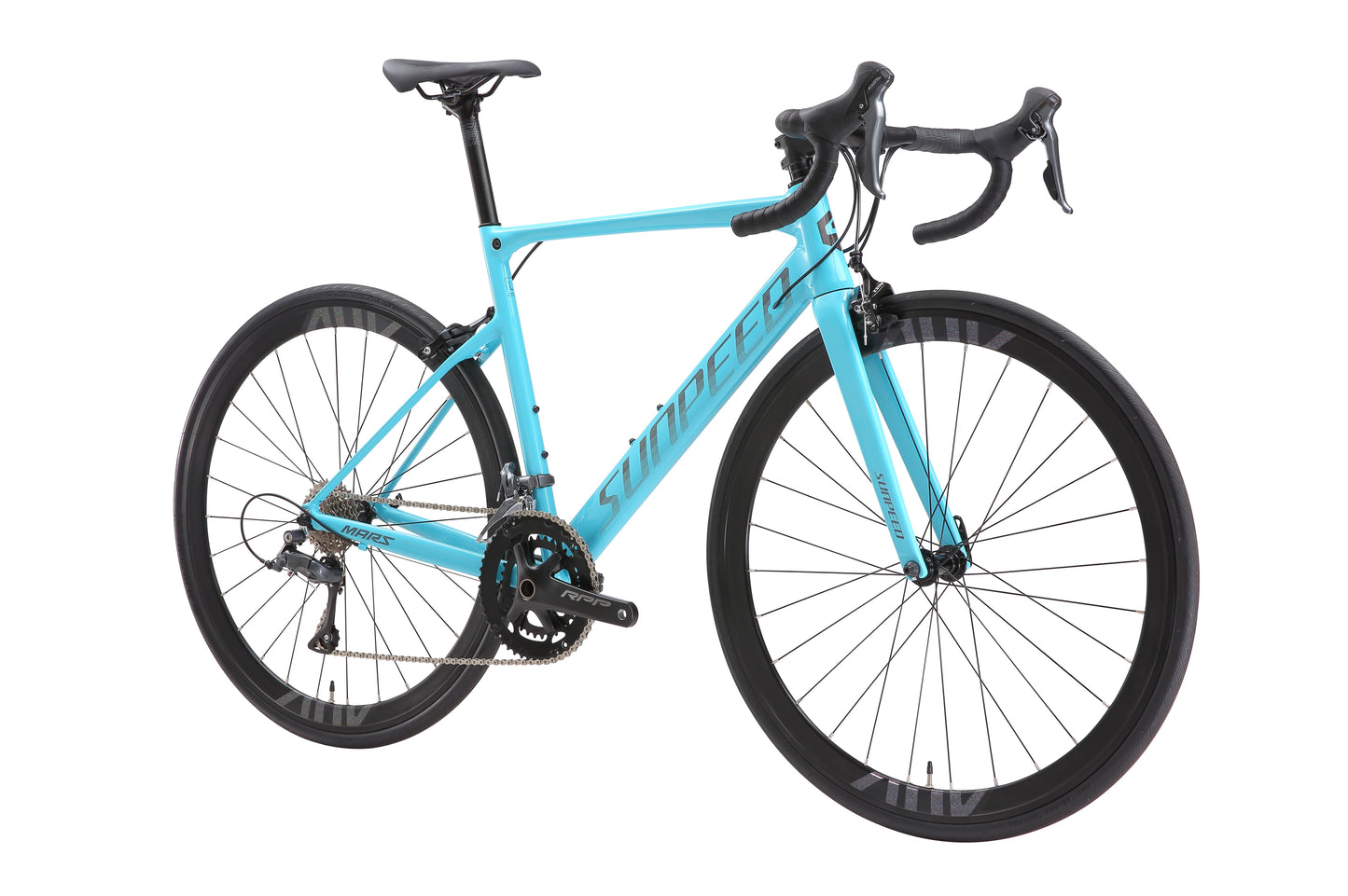

Colour: Blue

Hurry, only 1 items left in stock!

Pickup available at VRIDE Shop

Usually ready in 24 hours

5 years frame warranty

Free delivery in the UK

14 days return

From 9.5kg

Shimano Claris

30mm deep alloy rims

Up to 30mm max. recommended tyre clearance

Mechanical Rim Brakes

Ultralight Aluminium Frame

Specifications

Frameset

Frame

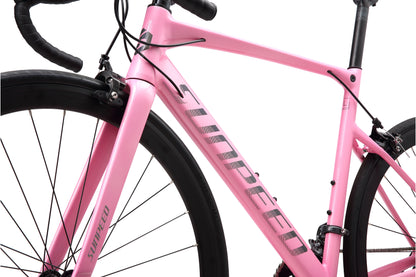

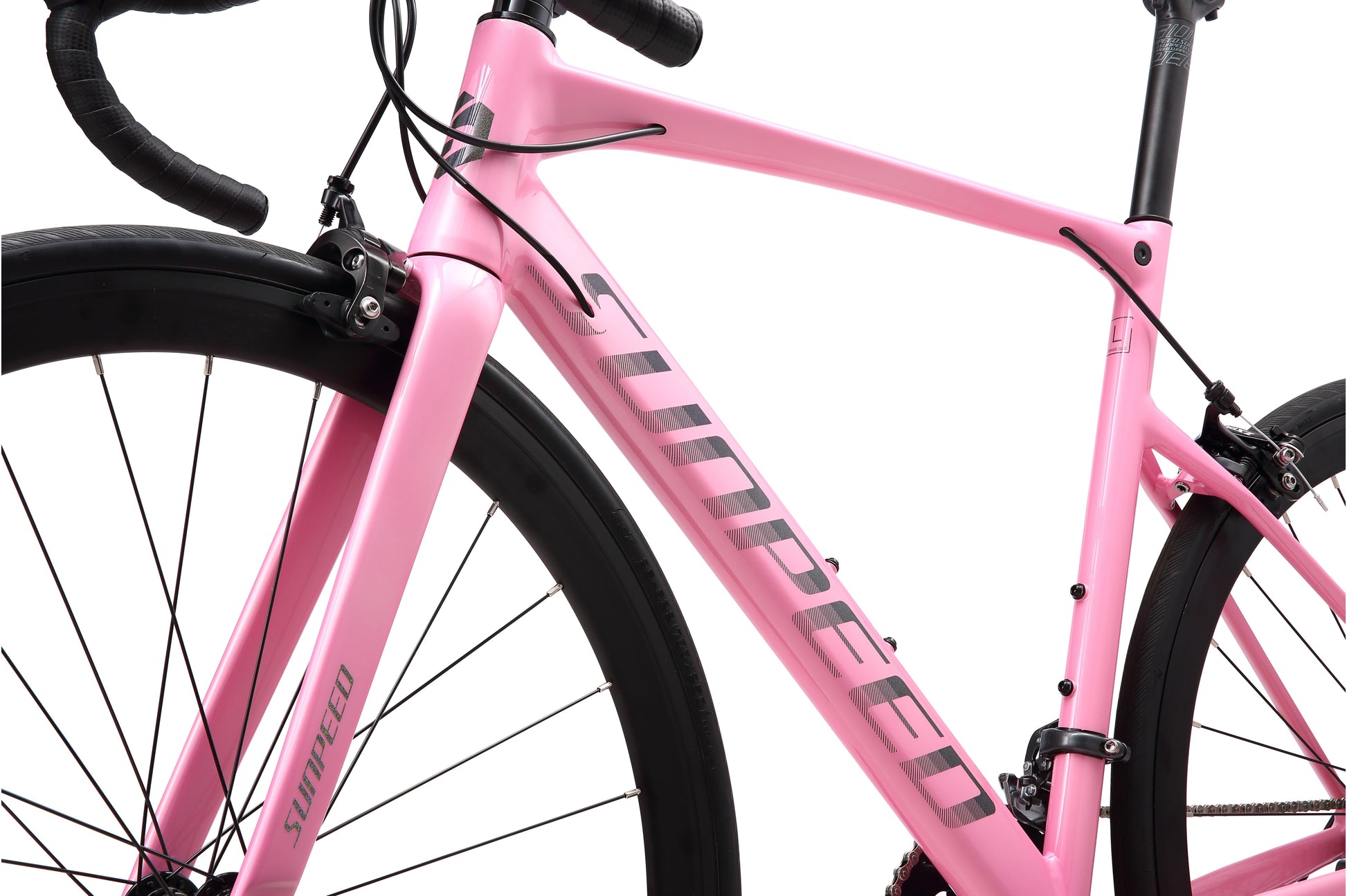

SUNPEED Mars Ultralight Aluminium frame

Fork

SUNPEED Mars carbon fork

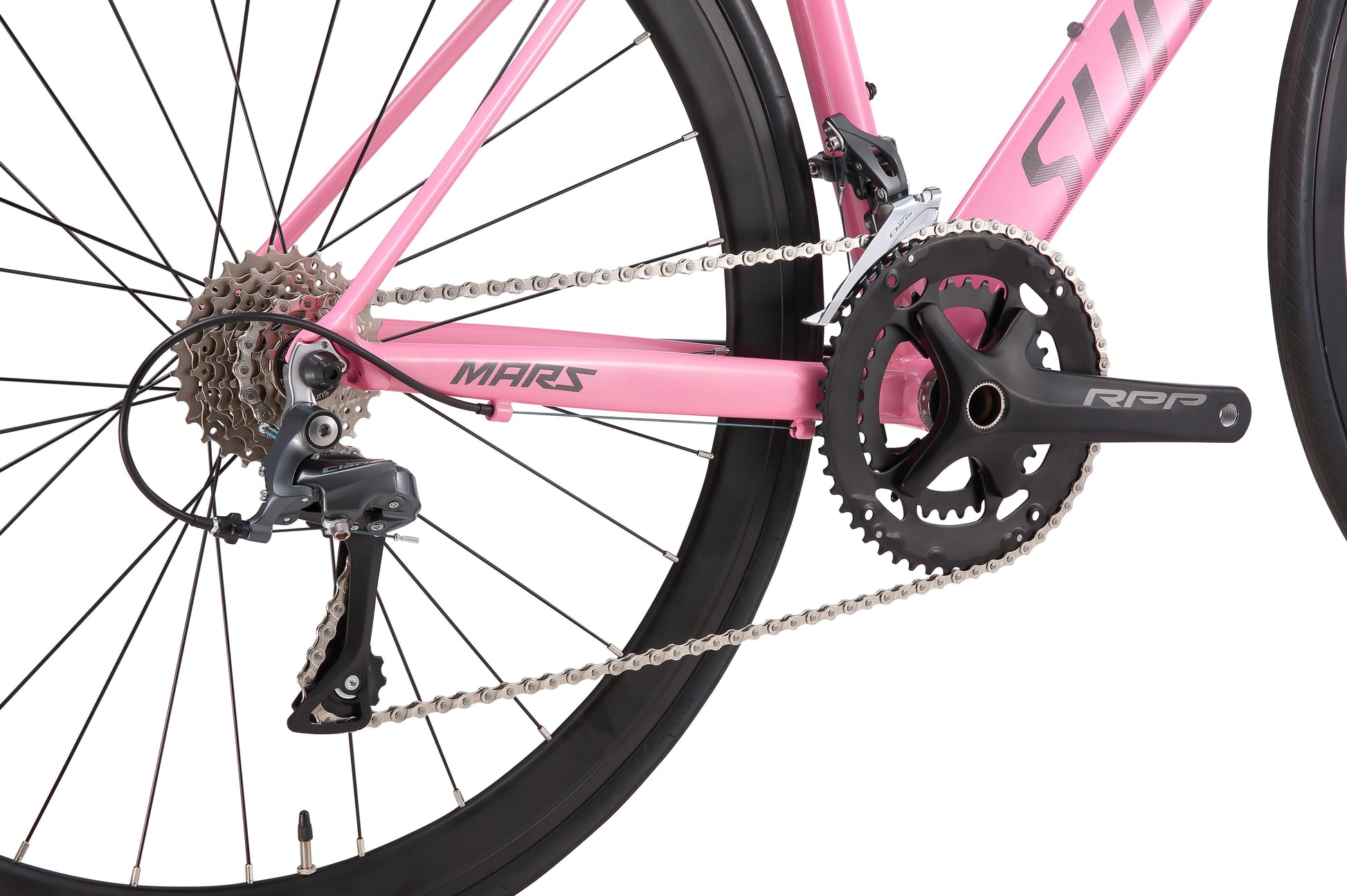

Drivetrain

Shifters

Shimano Claris R2000 16 Speed

Front Derailleur

Shimano Claris R2000 2 Speed

Rear Derailleur

Shimano Claris R2000 8 Speed

Cassette

Sunshine HR8-28 11–28T 16 Speed

Crankset

Prowheel OUNCE-421-TT 50/34T

Bottom Bracket

Prowheel Integrated TT PW-BB86

Chain

KMC HV800 NP 112L Silver, 8 Speed

Brakes

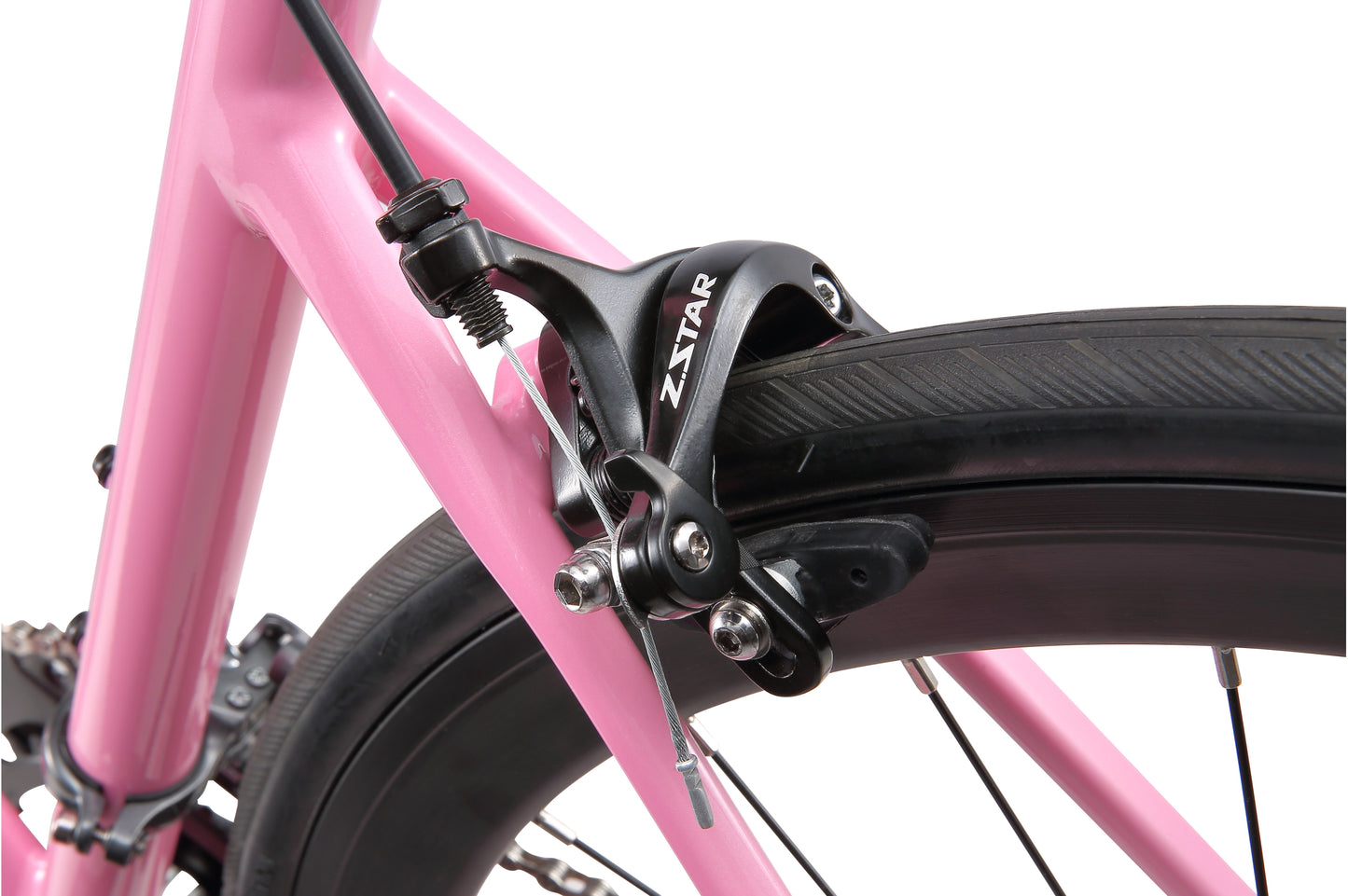

Z-Star AS2.6 Dual Pivot Calipers Rim Brakes

Brake Levers

Shimano Claris R2000

Wheels & Tyres

Hubs

Solon 281F/RBQ 28H Aluminium 2(F) / 2(R) Sealed Bearings

Spokes

SLE Competition Straight Pull

Rims

ANV 30mm Deep Alloy Rims

Tyres

CST Sprint 700 × 25c

Cockpit & Finishing Kit

Seatpost

ANV Mars Aluminium Seat Post, 27.2

Seat Clamp

ANV Mars Aluminium Seat Post Clamp

Saddle

ANV-K345 Hollow Saddle

Headset

ANV Hidden

Stem

ANV Separate Aluminium Stems

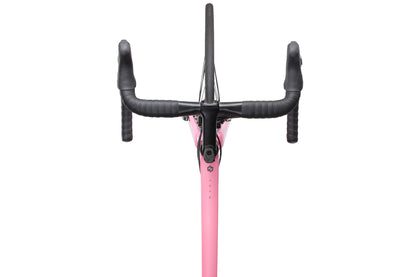

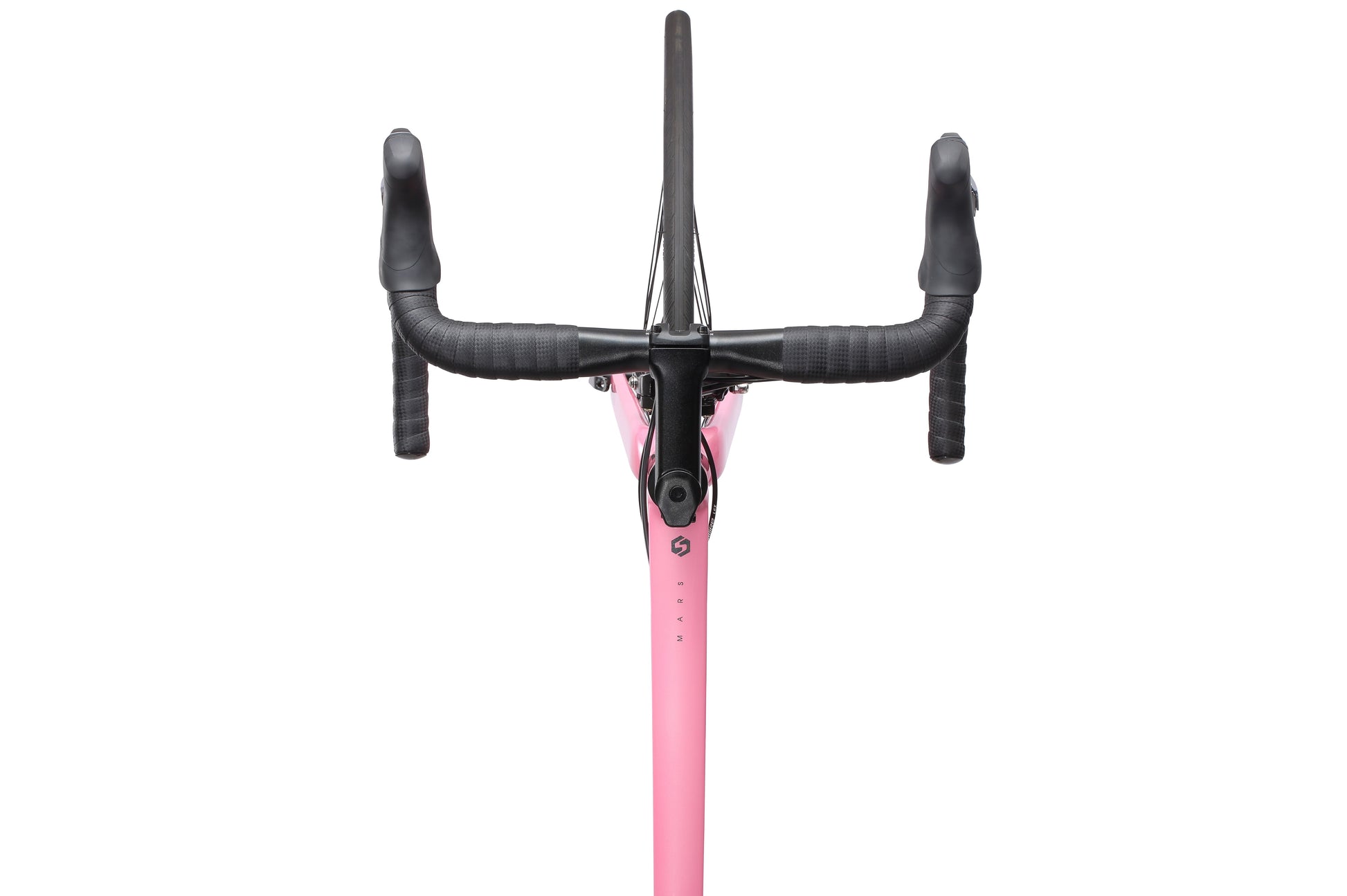

Handlebar

ANV Aluminium Handlebar

Handlebar Tape / Grips

Carbon Fibre Pattern Bar Tape

Pedals

Aluminium Pedals

Weight

Net Weight

9.5kg

Specifications may vary by size and configuration and are subject to change without notice.

Find Your Size

Use your height as a starting point when choosing your frame size.

XXL

Recommended Height 182-190

XL

Recommended Height 177-183

L

Recommended Height 172-178

M

Recommended Height 165-173

S

Recommended Height 155-165

XS

Recommended Height 145-155

Size recommendations are a guide only. Rider proportions, flexibility and preferred riding position can affect the ideal frame size.

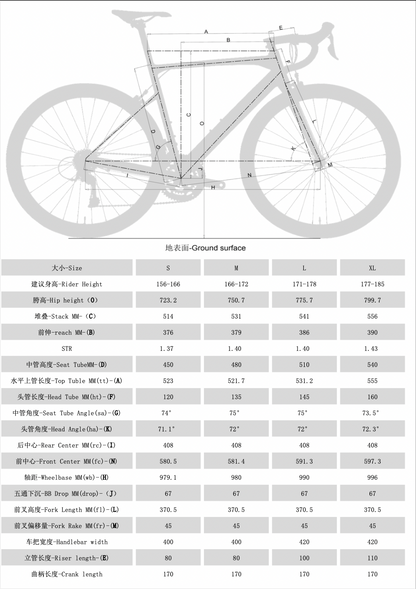

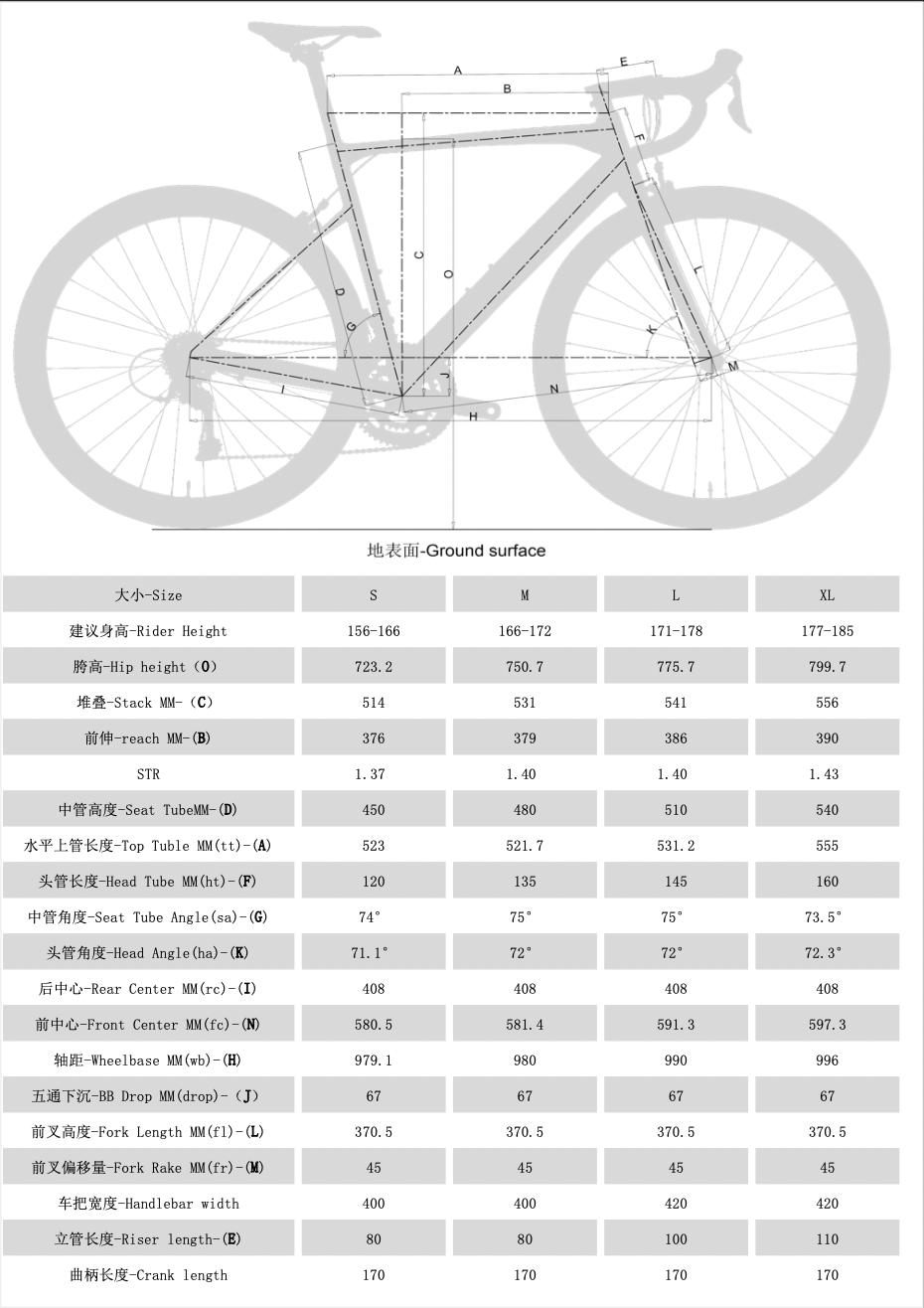

Geometry

	XXL	XL	L	M	S	XS
Recommended Rider Height (cm)	182-190	177-183	172-178	165-173	155-165	145-155
Stand Over Height (cm) (O)	814.4	790.8	766.7	740.7	713.3	688.7
Stack (mm)-(C)	570	561	551	537	518	512
Reach (mm)-(B)	392	384	376	376	369	365
Stack-to-Reach Ratio (STR)	1.45	1.46	1.47	1.43	1.4	1.4
Seat Tube (mm)-(D)	570	540	510	480	450	420
Top Tube (mm)-(A)	556.1	545.5	534.3	529.8	517.1	511.6
Head Tube (mm)-(F)	175	165	155	140	125	120
Seat Tube Angle-(G)	74°	74°	74°	74°	74°	74°
Head Tube Angle-(K)	72°	72°	72°	72°	70.6°	70.4°
Rear Centre (mm)-(I)	410	410	410	410	410	410
Front Centre (mm)-(N)	607.6	596.8	585.9	580.9	580	575.9
Wheelbase (mm)-(H)	1007	996	985	980	979.1	975
BB Drop (mm)-(J)	72	72	72	72	72	72
Fork Length (mm)-(L)	364	364	364	364	364	364
Fork Rake (mm)-(M)	47	47	47	47	47	47
Handlebar Width (mm)	420	420	400	400	380	380
Riser Length (mm)-(E)	115	100	100	85	85	85
