SUNPEED KEPLER
Fit for anything. A lightweight hybrid with Altus 9-speed, hydraulic braking, and 35C tyres for city-to-weekend versatility.
Aluminium frame + fork Shimano Altus 9-speed Shimano MT200 hydraulic discs Arisun 700×35C tyres 9.7kg
Say hello to the SUNPEED KEPLER — the hybrid bike designed to do it all. With a lightweight aluminium frame, smooth Shimano Altus 9-speed shifting, and powerful hydraulic disc brakes, it is built for control and comfort across city streets, towpaths, and weekend escapes.
Durable Arisun brown-wall tyres add confidence and style, and at just 9.7kg it is easy to carry, store, and live with day-to-day.
Key highlights
-
Everyday lightweightEasy to carry upstairs and fast on the flat.
-
Simple 1x9 drivetrainAltus shifting with a wide 11–36T cassette.
-
Hydraulic stopping powerShimano MT200 discs for consistent control.
-
Comfortable 35C tyresMore grip and comfort for mixed surfaces.

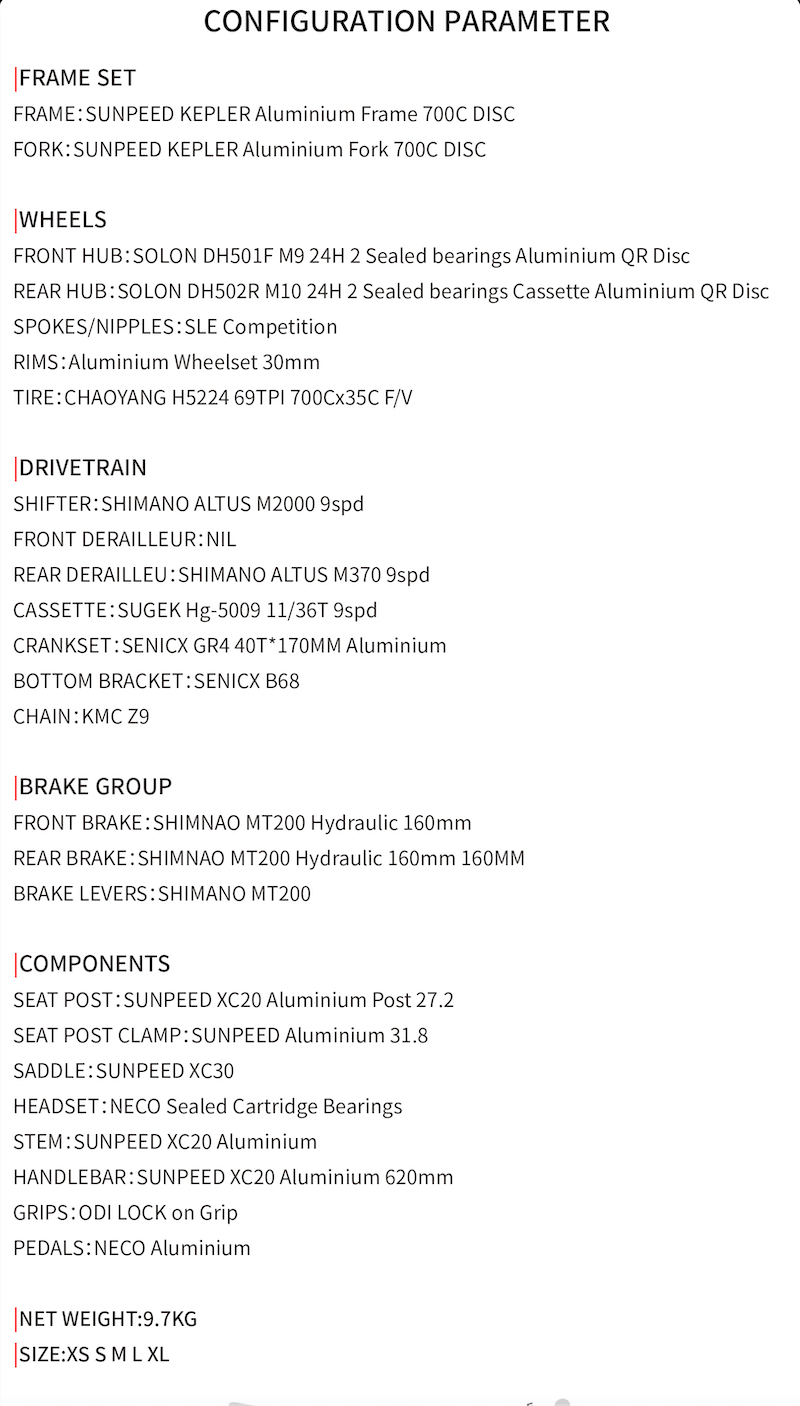

Specifications
Frameset
- FrameSUNPEED Kepler aluminium frame 700C, disc
- ForkSUNPEED Kepler aluminium fork 700C, disc
Wheelset
- Front hubSolon DH901YF, 24H, 2 sealed bearings, aluminium QR disc
- Rear hubSolon DH901YR, 24H, 2 sealed bearings, aluminium QR disc
- SpokesSLE Competition
- RimsAluminium wheelset, 30mm
- TyresArisun H5224 brown wall, 60TPI, 700×35C, F/V (48mm)
Drivetrain
- ShifterShimano Altus M2000, 9-speed
- Front derailleurN/A
- Rear derailleurShimano Altus M370, 9-speed
- CassetteSugek HG-5009, 11–36T, 9-speed
- CranksetSenicx GR4, 40T, 170mm, aluminium
- Bottom bracketSenicx B68
- ChainKMC Z9
Brakes & components
- BrakesShimano MT200 hydraulic, 160mm (front & rear)
- Brake leversShimano MT200
- SeatpostSUNPEED XC20 aluminium, 27.2
- Seat clampSUNPEED aluminium, 31.8
- SaddleSUNPEED XC30
- HeadsetNeco sealed cartridge bearings
- StemSUNPEED XC20 aluminium
- HandlebarSUNPEED XC20 aluminium, 620mm
- GripsODI lock on grip
- PedalsNeco aluminium
- Net weight9.7kg
Geometry
Geometry & sizing
All measurements are in mm unless stated otherwise. Angles are in degrees. Rider height is in cm.
| Spec | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Recommended rider height (cm) | 150-159 | 158-166 | 165-172 | 171-178 | 177-188 |
| Stack (C) | 570 | 579 | 597 | 606 | 620 |
| Reach (B) | 389 | 394 | 401 | 405 | 410 |
| STR | 1.47 | 1.47 | 1.49 | 1.50 | 1.51 |
| Seat tube (D) | 395 | 440 | 470 | 500 | 530 |
| Top tube (A) | 558 | 565.4 | 578.5 | 585 | 594.3 |
| Head tube (F) | 135 | 145 | 160 | 170 | 185 |
| Seat tube angle (G) | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Head angle (K) | 70° | 70° | 71° | 71° | 71° |
| Rear center (I) | 430 | 430 | 430 | 430 | 430 |
| Front center (N) | 622.6 | 630.5 | 634.6 | 641.6 | 651.5 |
| Wheelbase (H) | 1042.9 | 1050.9 | 1055 | 1062 | 1072 |
| BB drop (J) | 70 | 70 | 70 | 70 | 70 |
| Fork length (L) | 410 | 410 | 410 | 410 | 410 |
| Fork rake (M) | 45 | 45 | 45 | 45 | 45 |
| Hip height (O) | 681.8 | 728.5 | 756.5 | 782.3 | 808.7 |
