SUNPEED GALAXY
Performance meets style. Alloy speed, carbon precision, and Shimano 105 control.
Ultralight aluminium frame Carbon fork Shimano 105 12-speed Hydraulic disc brakes 9.5kg net weight
With a perfect merger of performance and style, the SUNPEED GALAXY is built to turn heads and crush miles. The ultralight alloy frame and carbon fork deliver an efficient, responsive ride, while Shimano 105 provides smooth shifting and confident control when the pace rises.
Hydraulic disc brakes add powerful stopping in all conditions, and the ANV A35 wheelset keeps things tough and reliable for race day efforts or weekend mileage.
Key highlights
-
Race-ready alloy platformUltralight aluminium frame with internal cable routing and thru-axle stiffness.
-
Shimano 105 12-speedFast, precise shifting for training, racing, and all-day riding.
-
Hydraulic disc confidenceConsistent stopping power in wet, dry, and high-speed descents.
-
ANV A35 wheelsetStrong 35mm alloy rims built for everyday durability and speed.
Specifications
Frameset
- FrameSUNPEED Galaxy ultralight aluminium frame 700C, internal cable routing, axle Q12
- ForkSUNPEED Galaxy carbon fork 700C, internal cable routing, axle Q12
Wheelset
- Front hubANV Q12, 24H axle, 4 sealed bearings
- Rear hubANV Q12, 24H axle, 4 sealed bearings
- SpokesSLE Competition straight pull
- RimsANV A35 aluminium wheelset (disc)
- TyresCST CRD-02 700×28C, black wall
Drivetrain
- ShiftersShimano 105 R7120, 24-speed
- Front derailleurShimano 105 R7100, 2-speed
- Rear derailleurShimano 105 R7100, 12-speed
- CassetteSunshine HR12 11–34T, 12-speed
- CranksetSenicx integrated alloy PR1-B1 50/34T, 12-speed
- Bottom bracketSenicx BB-BSA24R
- ChainKMC X12
Brakes & components
- BrakesShimano 105 R7170 hydraulic disc (front & rear)
- Brake leversShimano 105 R7120
- Brake discZ8 160mm, 6 screws
- SeatpostSunpeed Galaxy aluminium 350mm
- SaddleSelle Royal saddle
- HeadsetCompletely hidden sealed cartridge bearings
- CockpitANV alloy integrated stem + hidden cable handlebar
- GripsODI Ultralight lock-on grip
- PedalsWellgo DU aluminium pedals
- Net weight9.5kg

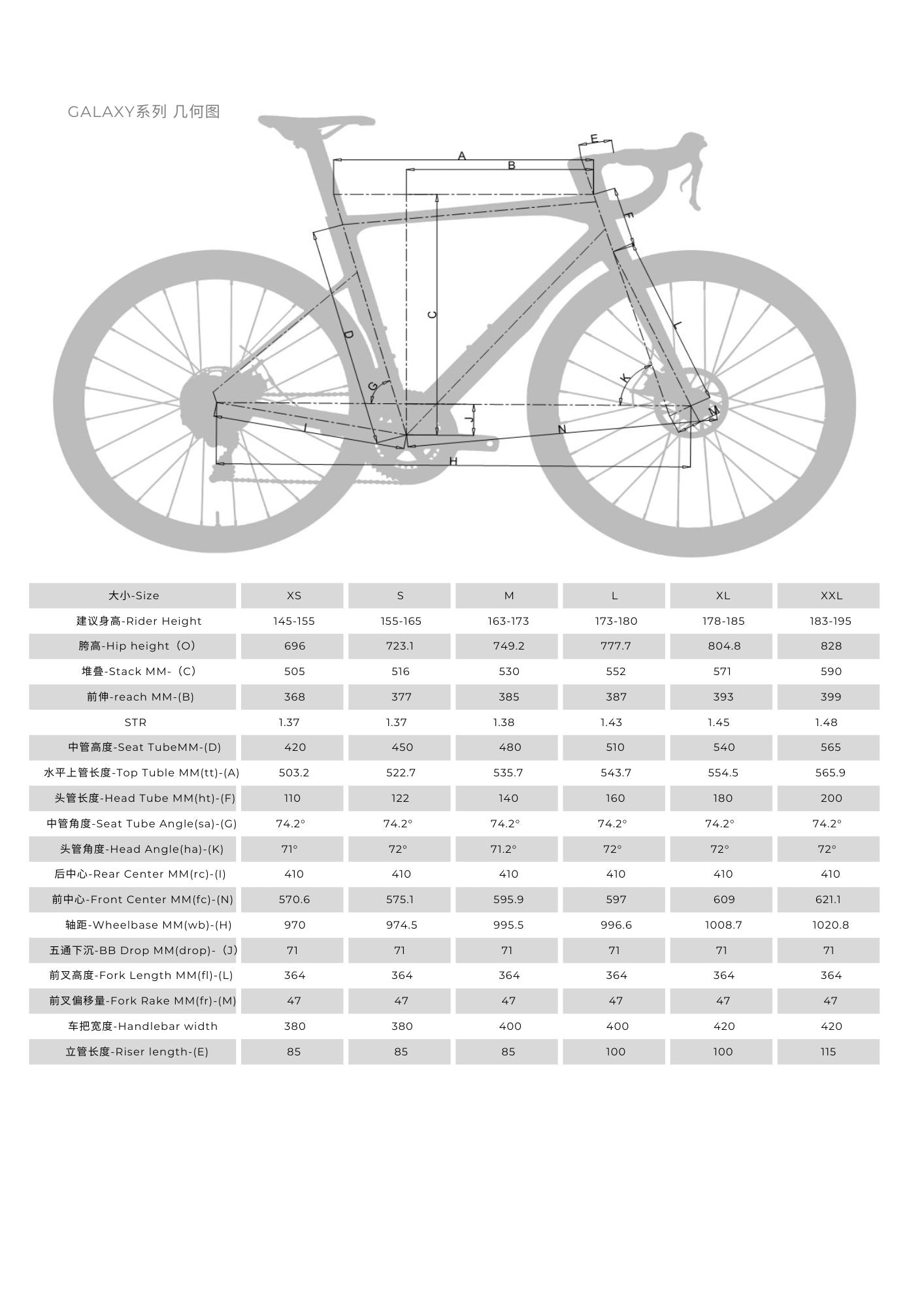

Geometry reference diagram. Letters correspond to measurements below.
Geometry & sizing
All measurements in mm unless stated otherwise.
| Spec | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Recommended rider height (cm) | 145–155 | 155–165 | 163–173 | 173–180 | 178–185 | 183–195 |
| Hip height (O) | 696 | 723.1 | 749.2 | 777.7 | 804.8 | 828 |
| Stack (C) | 505 | 516 | 530 | 552 | 571 | 590 |
| Reach (B) | 368 | 377 | 385 | 387 | 393 | 399 |
| STR | 1.37 | 1.37 | 1.38 | 1.43 | 1.45 | 1.48 |
| Seat tube (D) | 420 | 450 | 480 | 510 | 540 | 565 |
| Top tube (A) | 503.2 | 522.7 | 535.7 | 543.7 | 554.5 | 565.9 |
| Head tube (F) | 110 | 122 | 140 | 160 | 180 | 200 |
| Seat tube angle (G) | 74.2° | 74.2° | 74.2° | 74.2° | 74.2° | 74.2° |
| Head angle (K) | 71° | 72° | 71.2° | 72° | 72° | 72° |
| Rear center (I) | 410 | 410 | 410 | 410 | 410 | 410 |
| Front center (N) | 570.6 | 575.1 | 595.9 | 597 | 609 | 621.1 |
| Wheelbase (H) | 970 | 974.5 | 995.5 | 996.6 | 1008.7 | 1020.8 |
| BB drop (J) | 71 | 71 | 71 | 71 | 71 | 71 |
| Fork length (L) | 364 | 364 | 364 | 364 | 364 | 364 |
| Fork rake (M) | 47 | 47 | 47 | 47 | 47 | 47 |
| Handlebar width | 380 | 380 | 400 | 400 | 420 | 420 |
| Riser length (E) | 85 | 85 | 85 | 100 | 100 | 115 |
Tip: If you are between sizes, we generally recommend sizing down for a sportier fit.
