Astro Sora Mechanical

£849.99

£637.49

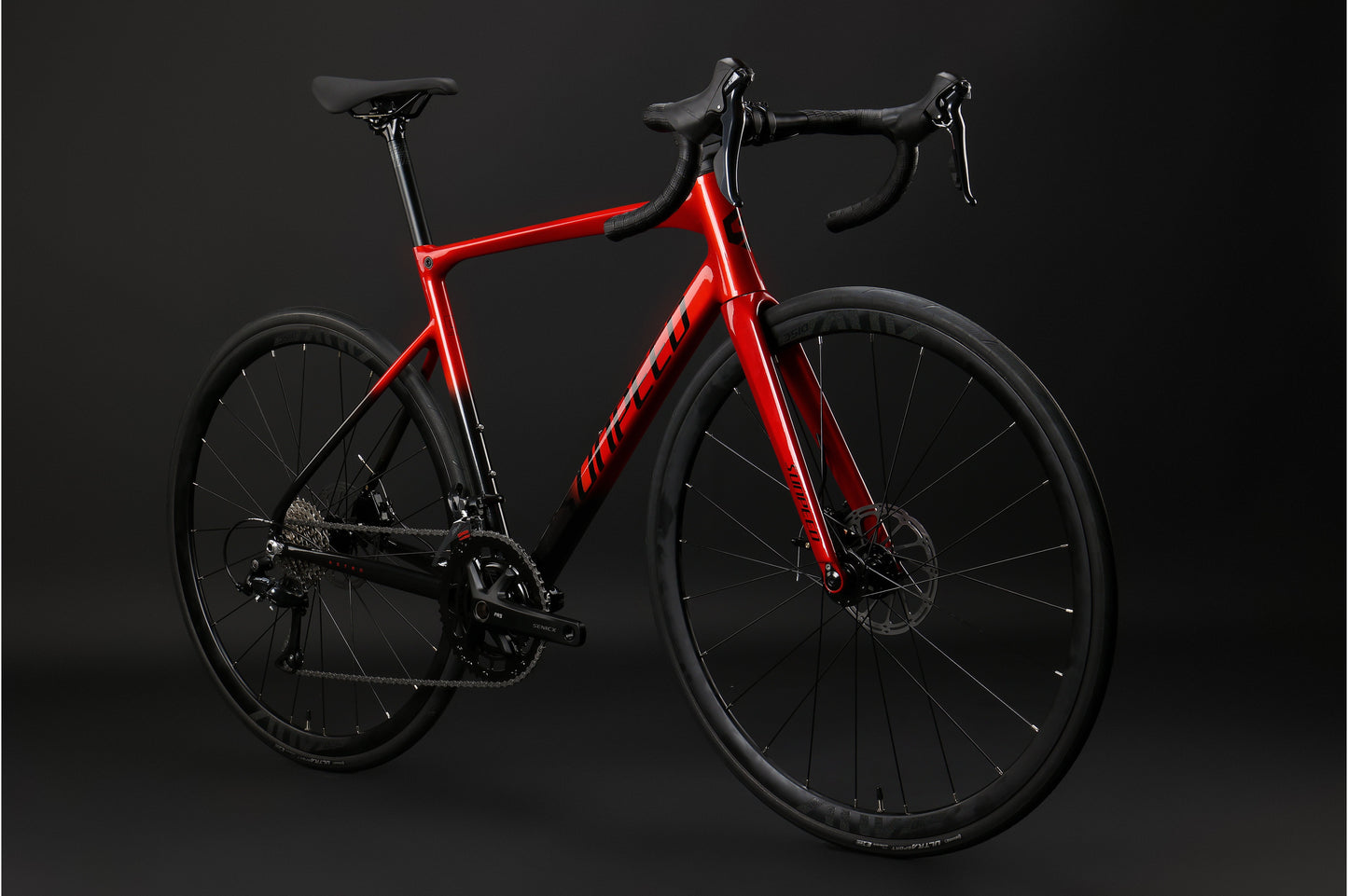

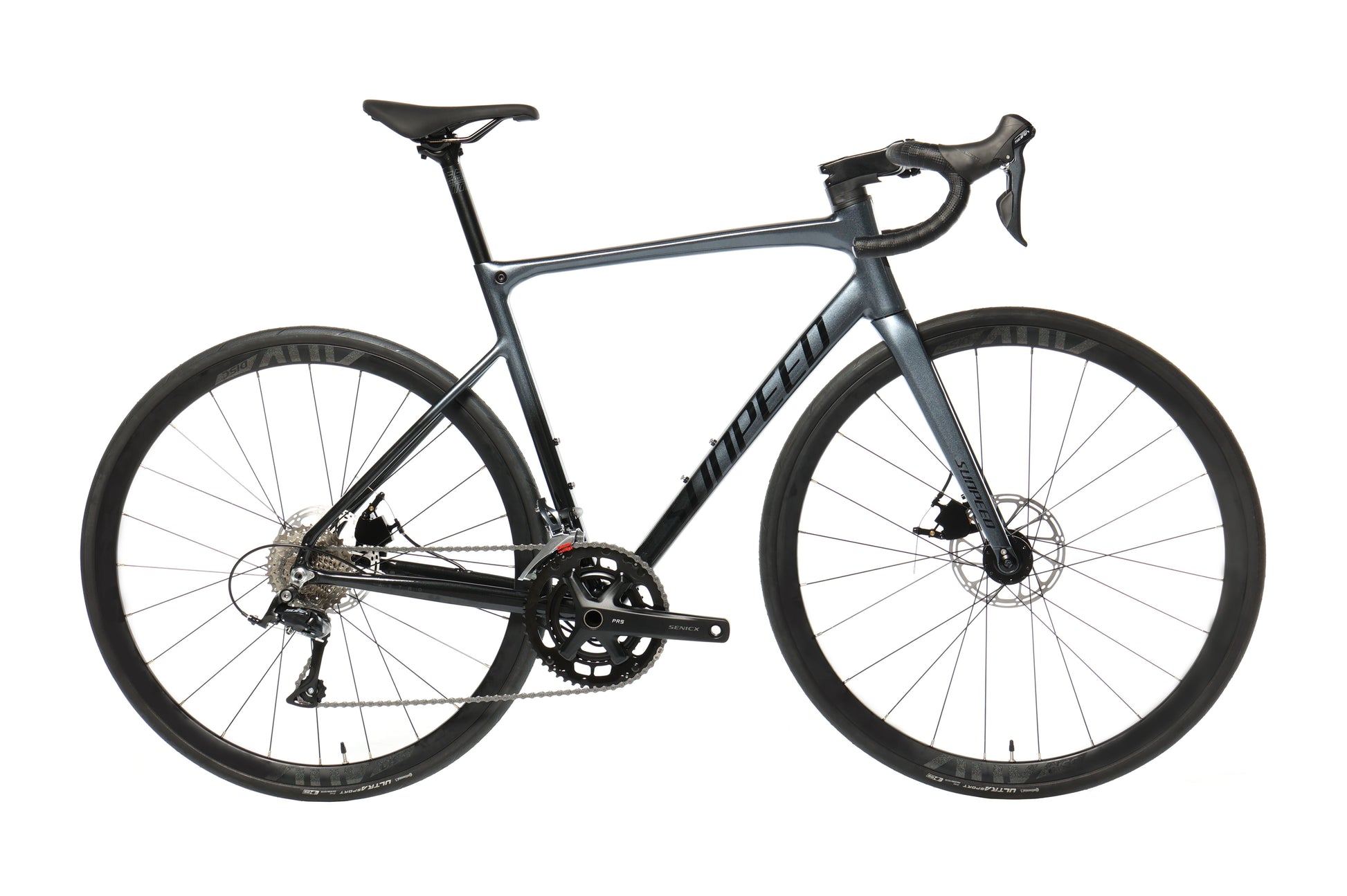

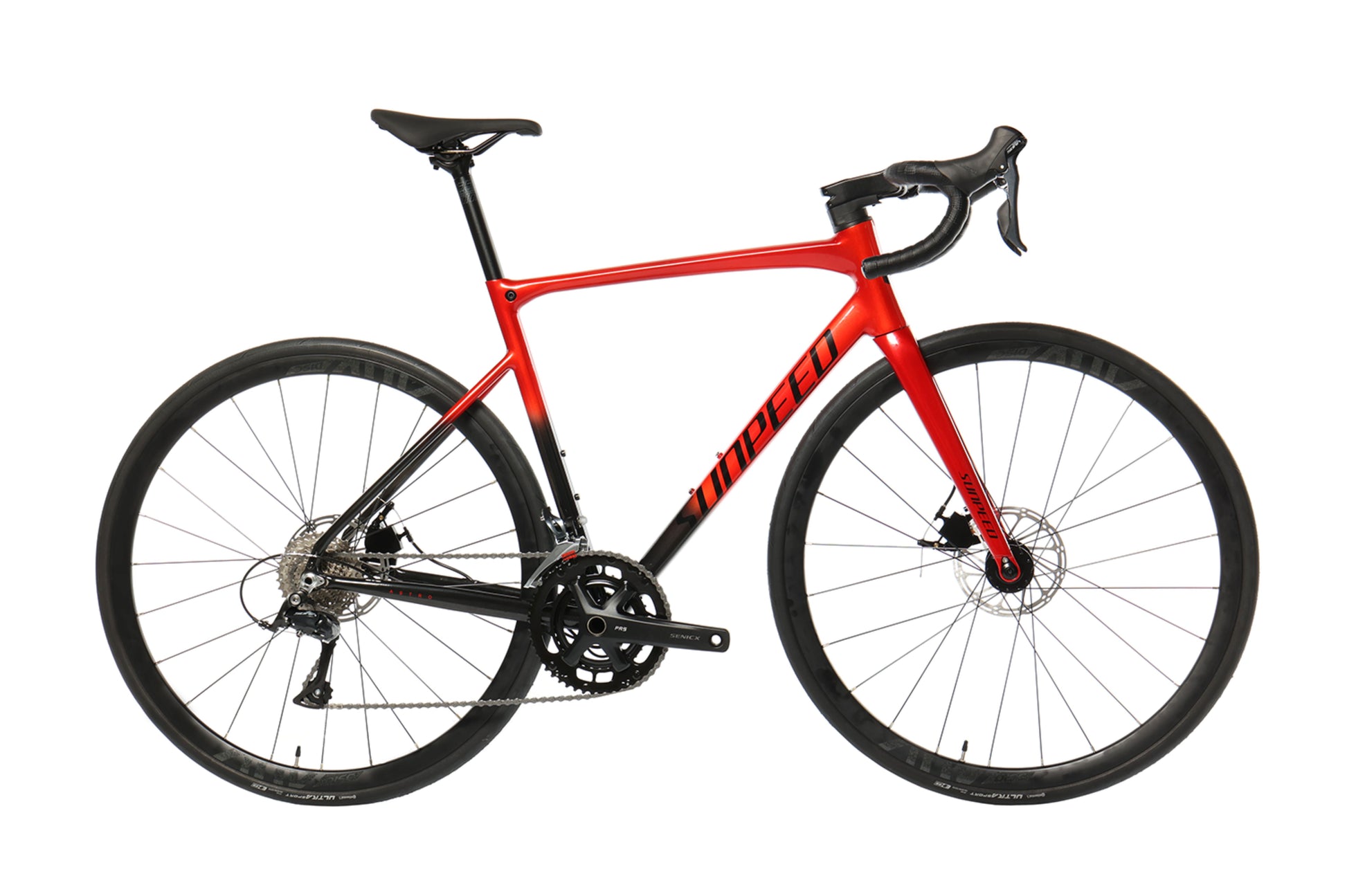

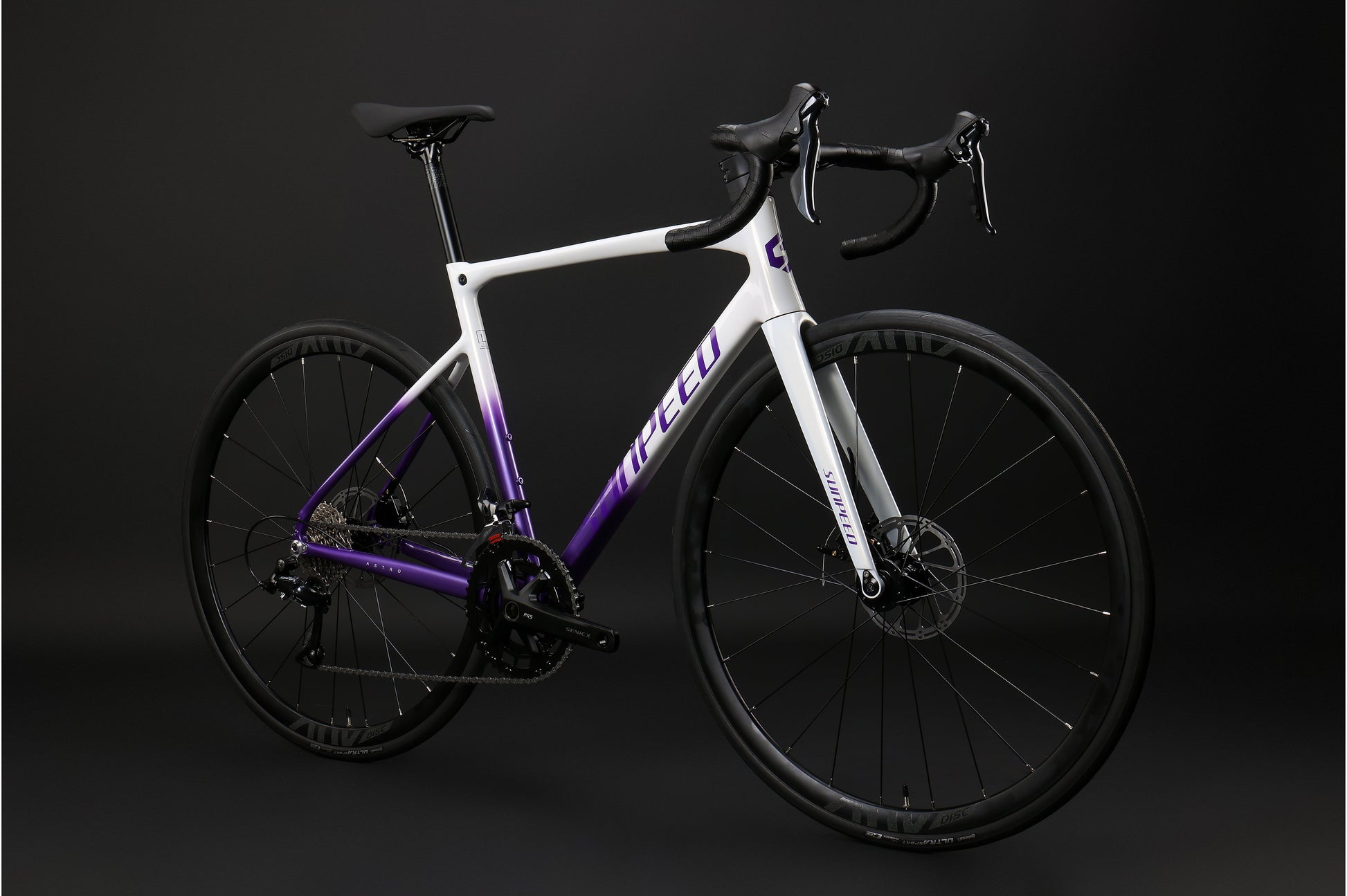

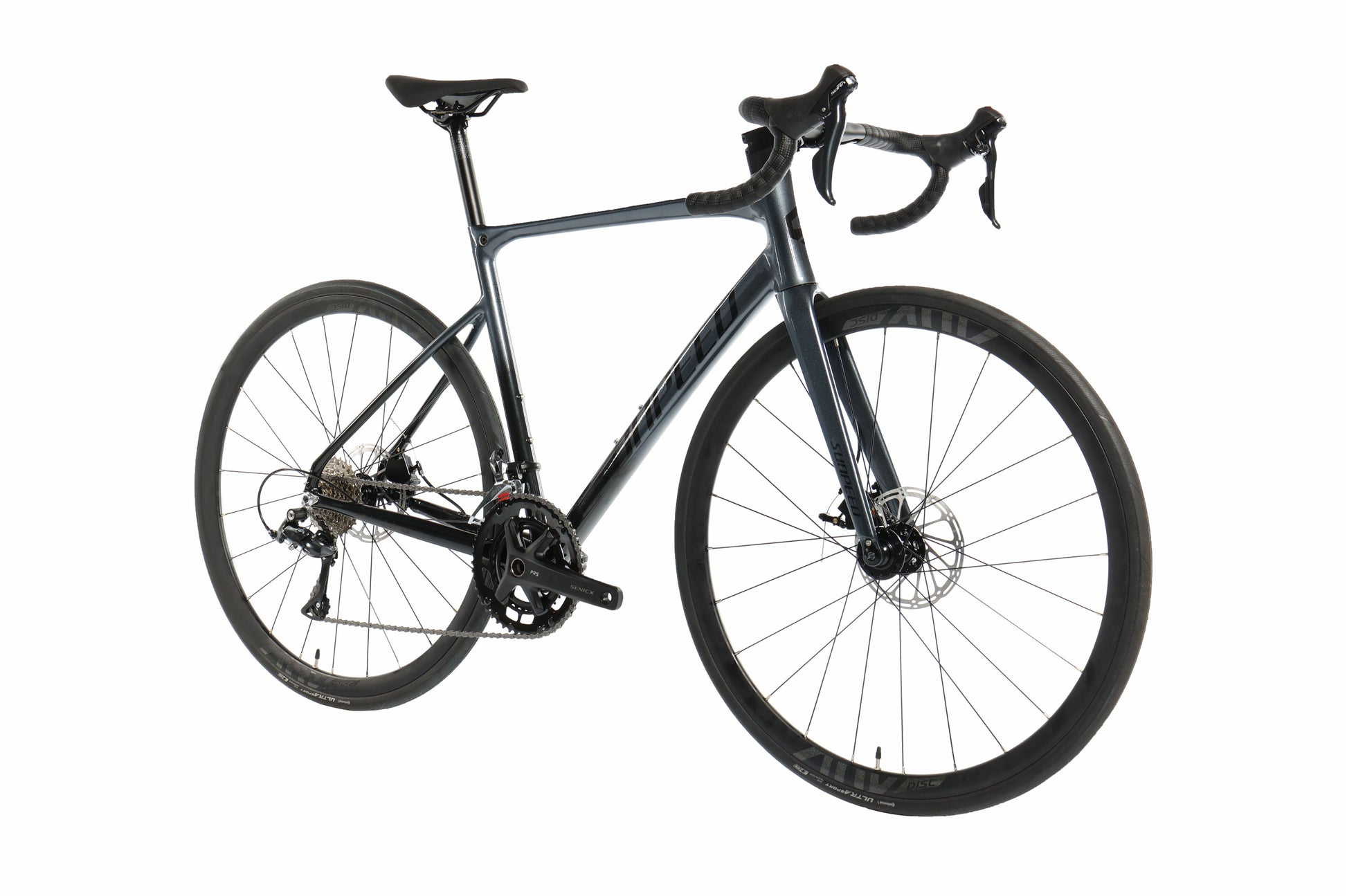

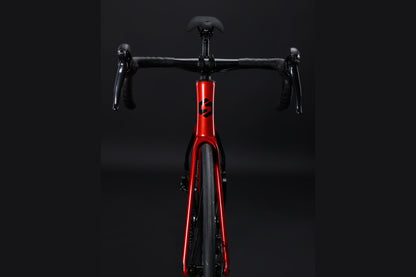

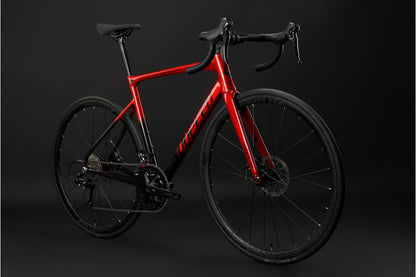

Blast off with the SUNPEED Astro, a sleek, lightweight road bike built for speed, agility and control. It pairs an aluminium frame and carbon fork with a Shimano Sora 18-speed drivetrain and mechanical disc brakes for reliable stopping in all weather. Weighing just 9.6kg, the Astro shifts smoothly, looks sharp and is a great first road bike for fitness, commuting and weekend rides.

Frame Size: S

S

Colour: Red/Black

Hurry, only 1 items left in stock!

Pickup available at VRIDE Shop

Usually ready in 24 hours

5 years frame warranty

Free delivery in the UK

14 days return

From 9.6kg

Shimano Sora Mechanical (partial)

30mm deep alloy rims

Up to 30mm max. recommended tyre clearance

Internal cable routing

Mechanical Disc Brakes

Ultralight Aluminium Frame

Specifications

Frameset

Frame

SUNPEED Astro Ultralight Aluminium Frame

Fork

SUNPEED Astro Carbon Fork

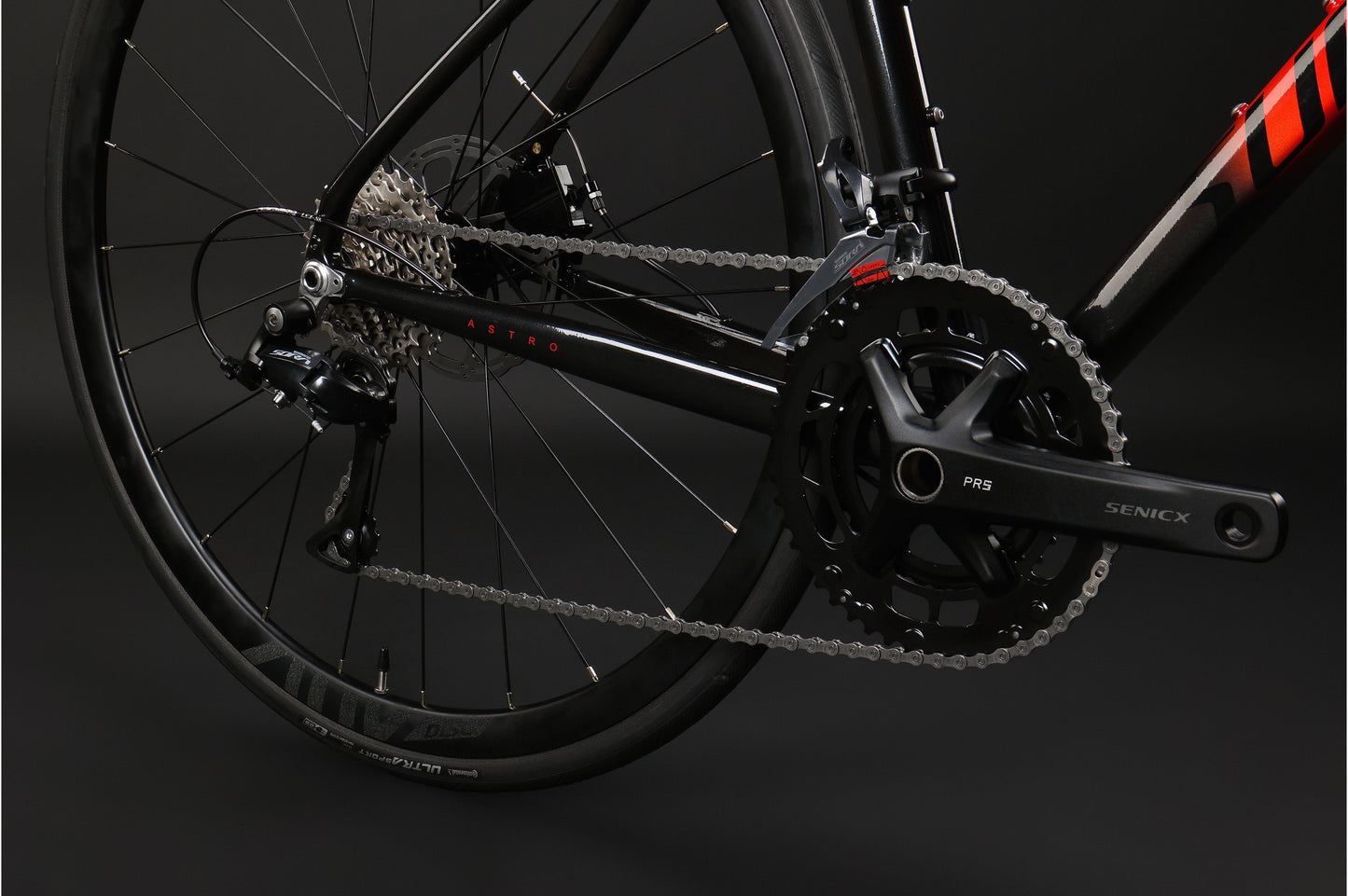

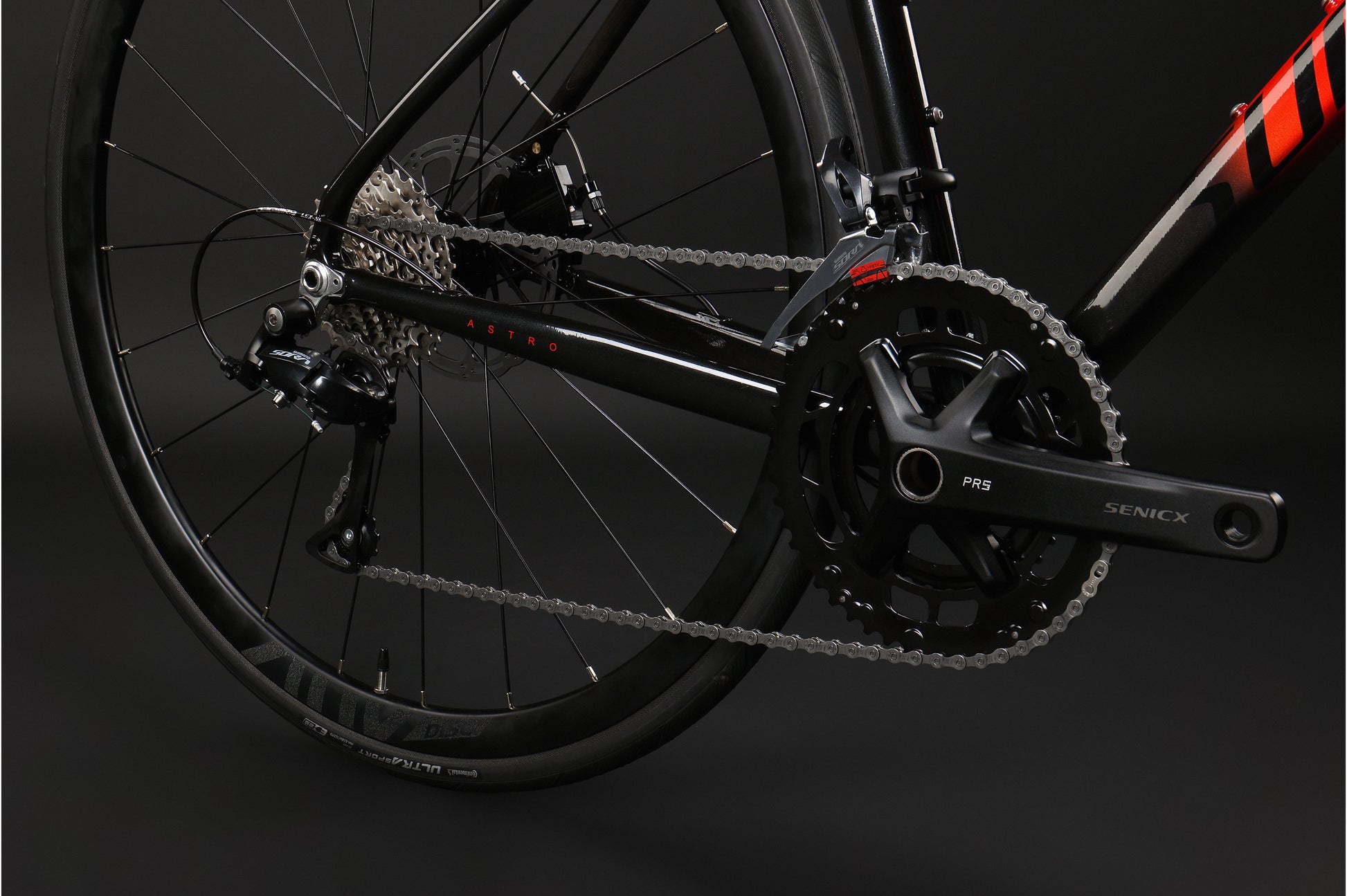

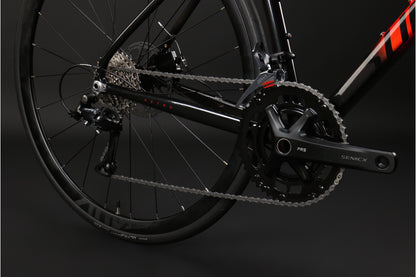

Drivetrain

Shifters

Shimano Sora R3000 18 Speed

Front Derailleur

Shimano Sora R3000 2 Speed

Rear Derailleur

Shimano Sora R3000 9 Speed

Cassette

SUGEK HG-5009 11/32T 18 Speed

Crankset

Senicx FR5 50/34

Bottom Bracket

Senicx Integrated TT PW-BB86

Chain

KMC X9

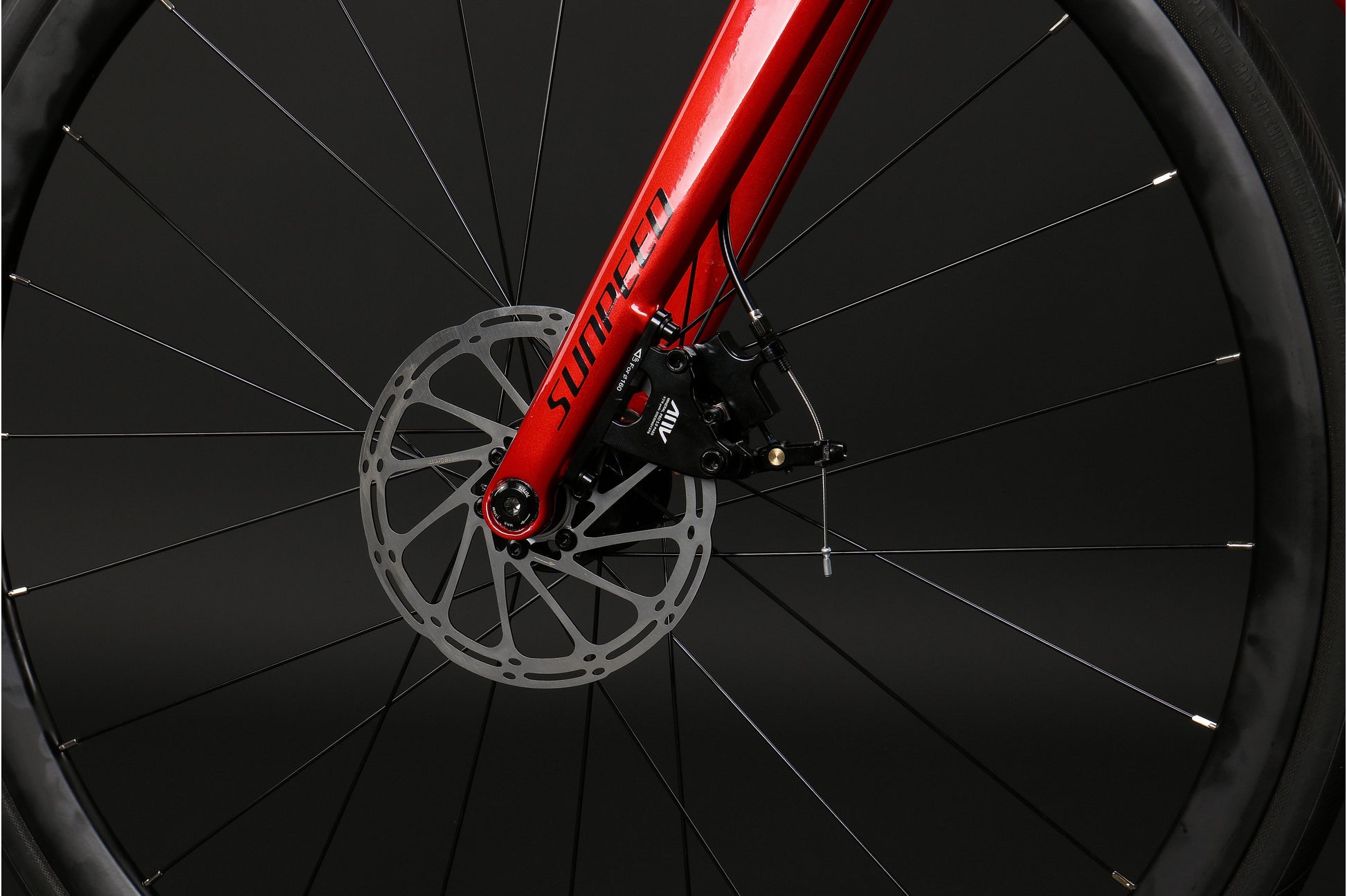

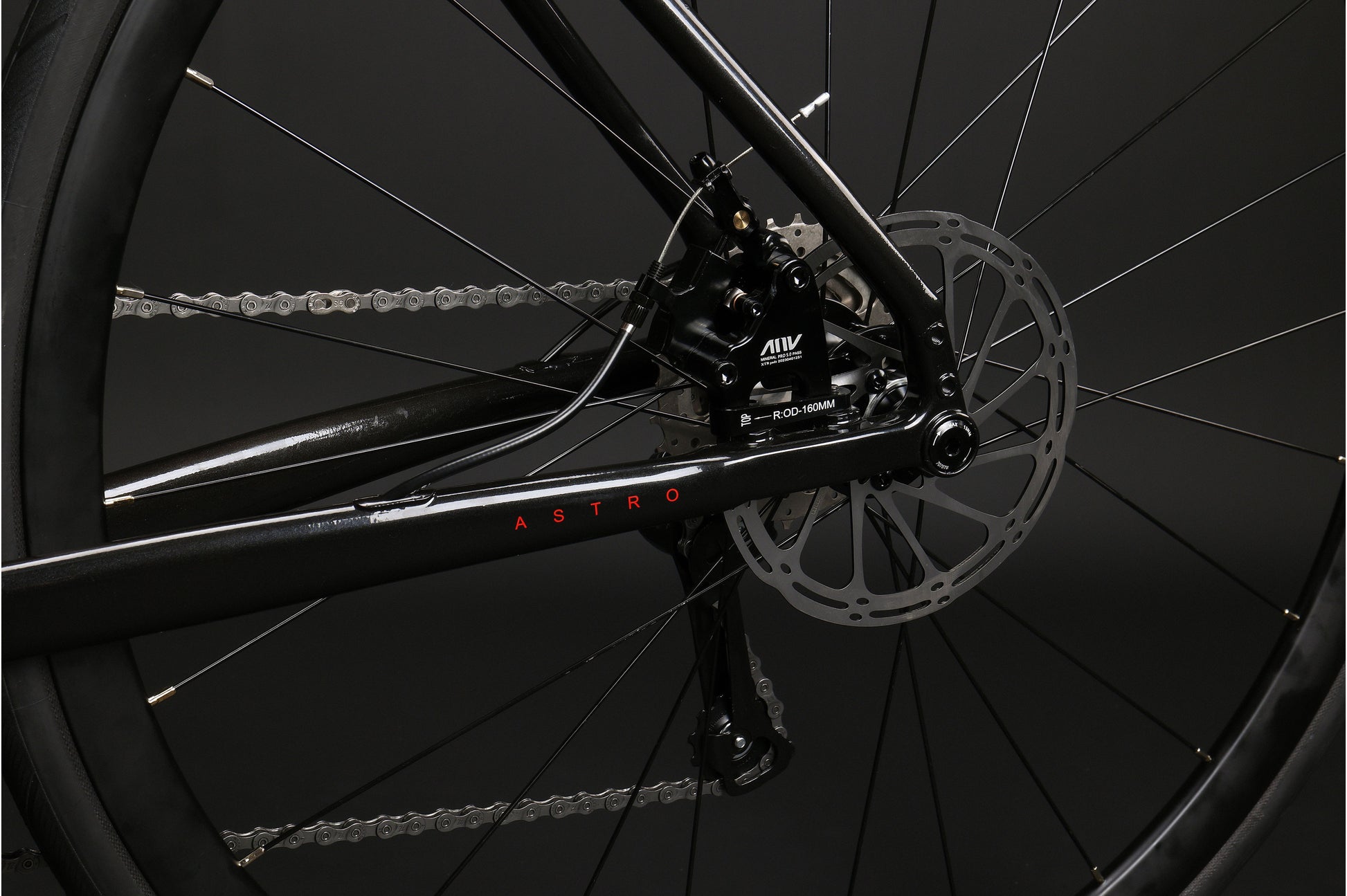

Brakes

ANV Mechanical Disc Brakes, 160mm

Brake Levers

Shimano Sora R3000

Wheels & Tyres

Hubs

Solon M203 Q12 24H Axle 2(F) / 4(R) Sealed Bearings

Spokes

SLE Competition Straight Pull

Rims

ANV 30mm Deep Aluminium Rims

Tyres

Continental Ultra Sport 700 x 25c Tyres

Cockpit & Finishing Kit

Seatpost

ANV XC20 Aluminium Seat Post 27.2

Seat Clamp

ANV Hidden Seat Post Clamp

Saddle

ANV XC30

Headset

ANV Completely Hidden

Stem

SUNPEED Aluminium Stem

Handlebar

Aluminium Inner Cable Routing Drop Handlebar

Handlebar Tape / Grips

Carbon Fibre Patterns Bar Tape

Pedals

Neco Aluminium Pedals

Weight

Net Weight

9.6kg

Specifications may vary by size and configuration and are subject to change without notice.

Find Your Size

Use your height as a starting point when choosing your frame size.

XXL

Recommended Height 183-193

XL

Recommended Height 177-185

L

Recommended Height 172-178

M

Recommended Height 166-174

S

Recommended Height 158-168

XS

Recommended Height 150-160

Size recommendations are a guide only. Rider proportions, flexibility and preferred riding position can affect the ideal frame size.

Geometry

	XXL	XL	L	M	S	XS
Recommended Rider Height (cm)	183-193	177-185	172-178	166-174	158-168	150-160
Stand Over Height (cm) (O)	824	797	771.3	744.8	718.9	692.4
Stack (mm)-(C)	590	569	555	539	528	517
Reach (mm)-(B)	407	390	384	375	370	367
Stack-to-Reach Ratio (STR)	1.45	1.46	1.45	1.44	1.43	1.41
Seat Tube (mm)-(D)	570	540	510	480	450	420
Top Tube (mm)-(A)	587.9	558.8	549.1	534.8	526.6	514.9
Head Tube (mm)-(F)	190	175	160	145	135	125
Seat Tube Angle-(G)	73°	74°	73.5°	73.5°	73.5°	74°
Head Tube Angle-(K)	74°	72.5°	72.5°	72°	71.5°	71°
Rear Centre (mm)-(I)	410	410	410	410	410	410
Front Centre (mm)-(N)	608.6	600.7	590.8	580.8	576.9	573.9
Wheelbase (mm)-(H)	1008	1000	990	980	976	973
BB Drop (mm)-(J)	72	72	72	72	72	72
Fork Length (mm)-(L)	364	364	364	364	364	364
Fork Rake (mm)-(M)	47	47	47	47	47	47
Handlebar Width (mm)	420	420	400	400	380	380
Riser Length (mm)-(E)	115	100	100	85	85	85
