Road Bike Geometry Explained: What Every Cyclist Should Know

Road bike geometry defines how a bike feels, how it handles, and how the rider’s body is positioned on the frame. Even when two bikes look almost identical, small changes in geometry can make one feel fast and aggressive while another feels stable and comfortable over long distances. These differences come from the way the frame is shaped, not from components or accessories.

Understanding geometry helps you choose a bike that matches your riding style more accurately and avoids buying a bike that feels uncomfortable after a short time.

What Is Road Bike Geometry?

Road bike geometry refers to the set of measurements and angles that define the shape of a bicycle frame. These measurements control how the different parts of the frame are positioned relative to each other and to the ground. A bike frame is built around two main structural parts. The main triangle connects the top tube, down tube and seat tube, while the rear triangle supports the rear wheel through the chainstays and seatstays. The combination of these structures determines how the bike steers, how stable it feels, and how comfortable it is over distance.

Why Road Bike Geometry Matters

Geometry has a stronger influence on ride feel than most riders expect. Two bikes with similar components can feel completely different because of small changes in frame angles and tube lengths.

Comfort and Riding Position

Geometry determines how your body sits on the bike. A more aggressive setup puts more weight on your hands and shoulders, while a more relaxed setup spreads your weight more evenly and reduces strain on longer rides.

Stability and Control

Wheelbase length and frame angles affect how stable the bike feels, especially at higher speeds or on rough surfaces. A longer and more relaxed geometry usually feels more stable, while a shorter and steeper setup feels quicker and more responsive.

Handling and Responsiveness

Steeper angles and shorter distances between components make the bike react faster to steering input. This is useful in racing but can feel less stable for beginners or long-distance riders.

Because of these factors, geometry is one of the most important considerations when choosing a road bike. However, even the best-designed frame should be matched to the rider. A professional bike fit helps ensure that the bike's geometry works with your body, flexibility and riding style, allowing you to ride more comfortably and efficiently.

Road Bike Geometry at a Glance

Measurement	Race Geometry	Endurance Geometry
Stack	Lower	Higher
Reach	Longer	Shorter
Wheelbase	Shorter	Longer
Head Tube Angle	Steeper	Slightly slacker
Chainstay Length	Shorter	Longer



Race geometry is designed for speed and efficiency, while endurance geometry focuses on comfort and stability over longer rides.

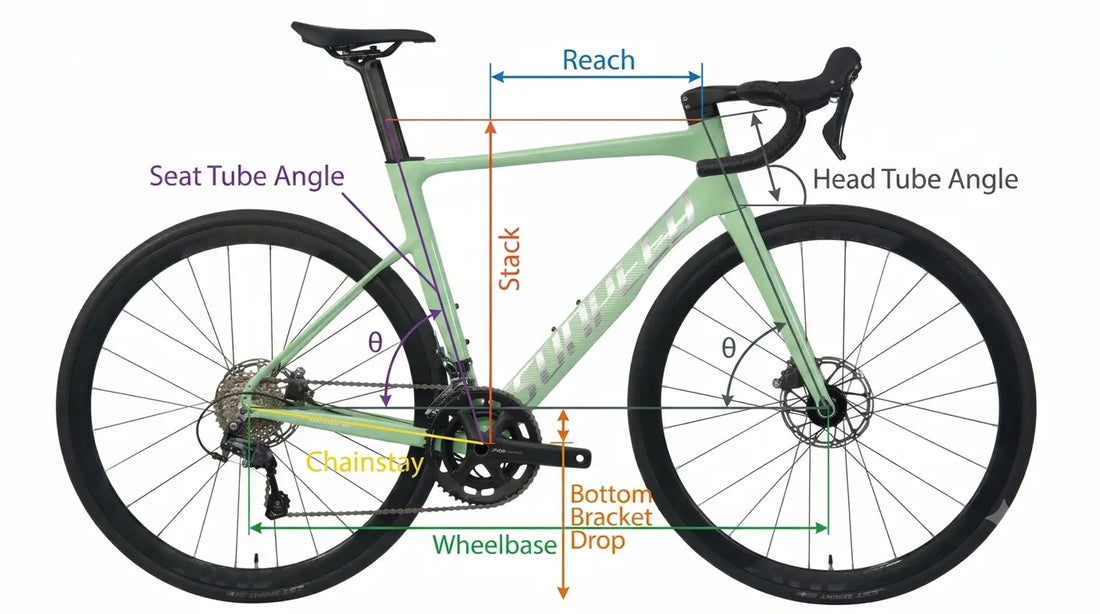

Key Road Bike Geometry Measurements

• Stack: Stack is the vertical distance between the bottom bracket and the top of the head tube. It affects how high your handlebars sit and plays a major role in overall riding posture.
• Reach: Reach is the horizontal distance between the same two points. It determines how stretched or compact your riding position feels and directly affects comfort and aerodynamics.

• Head Tube Angle: The head tube angle influences how quickly the bike responds to steering input. A steeper angle results in faster, more responsive handling, while a slacker angle improves stability.
• Wheelbase: Wheelbase is the distance between the front and rear wheels. A longer wheelbase improves stability, especially at speed, while a shorter one makes the bike feel more agile.
• Chainstay Length: Chainstay length affects how the rear of the bike behaves. Shorter chainstays make acceleration feel sharper, while longer ones increase stability and comfort.
• Bottom Bracket Drop: Bottom bracket drop influences how low the frame sits between the wheels. A lower position improves stability but slightly reduces ground clearance.
• Fork Rake: Fork rake works together with head tube angle to influence steering behaviour. Together they define how stable or quick the front end of the bike feels.

How Road Bike Geometry Affects Your Ride

Speed and Aerodynamics

Race geometry places the rider in a lower position, reducing frontal area and improving aerodynamics. This makes it more efficient at higher speeds.

Comfort Over Long Distances

Endurance geometry raises the front of the bike and shortens the reach. This reduces strain on the upper body and makes long rides more sustainable.

Stability at Speed

Longer wheelbases and slacker angles improve stability on descents and uneven roads, making the bike feel more controlled at higher speeds.

Handling Characteristics

Shorter and steeper geometries react more quickly to rider input, which is useful in racing but requires more attention and control.

Race Geometry vs Endurance Geometry

Race geometry is designed for riders who prioritise speed, efficiency and responsiveness. It feels sharp and direct, especially when accelerating or cornering.

Endurance geometry is designed for comfort and long-distance riding. It reduces fatigue and provides a more relaxed riding position that is easier to maintain over time.

Most modern road bikes sit between these two extremes, offering a balance of performance and comfort.

Road Bike Geometry vs Hybrid Bike Geometry

Hybrid bikes use a more upright geometry compared to road bikes. This creates a comfortable and relaxed riding position that is ideal for commuting and casual riding. Road bikes prioritise speed and efficiency, which is why they use a more aggressive geometry that puts the rider in a forward-leaning position.

Geometry is only one of several factors that separate these two bike categories. To compare every important difference, including comfort, speed, riding position and versatility, read our complete guide to road bike vs hybrid bike.

Choosing the Right Road Bike Geometry

Beginners

Beginners usually benefit from endurance geometry because it offers more stability and comfort while learning.

Fitness and Recreational Riders

These riders often prefer endurance setups because they allow longer rides without excessive strain.

Long-Distance Riders

Endurance geometry is usually the best choice for long rides because it reduces fatigue and improves comfort.

Performance and Competitive Riders

Race geometry is preferred by riders who want maximum efficiency, speed and responsiveness.

Can You Change a Bike’s Geometry?

The geometry of a bike frame is fixed and cannot be changed after production. However, the riding position can be adjusted through components such as the stem, handlebars and saddle position, which can significantly affect comfort and handling.

How to Read a Road Bike Geometry Chart

Looking at a geometry chart for the first time can feel overwhelming. Most manufacturers list dozens of measurements, but not every number has the same influence on how a bike will feel. Rather than comparing every dimension, it is better to focus on the measurements that have the greatest impact on rider position and handling.

Start with Stack and Reach

Stack and reach are widely regarded as the two most useful measurements when comparing road bikes because they describe the relationship between the rider and the frame more accurately than traditional frame size alone. Two bikes labelled as a 56 cm frame can still feel completely different if their stack and reach measurements vary significantly.

As a general rule, a higher stack creates a more upright riding position, while a longer reach produces a lower and more stretched position. These two measurements provide a much clearer picture of bike fit than seat tube length, which is why many professional bike fitters use them as the starting point when comparing different models.

Look at the Whole Geometry Package

Although stack and reach are the best place to begin, they should never be viewed in isolation. Wheelbase, head tube angle, chainstay length and bottom bracket drop all contribute to the bike's overall character. A bike with a longer wheelbase and slightly slacker head tube angle will generally feel more stable, while one with a shorter wheelbase and steeper steering angle will feel quicker and more responsive.

The most effective way to compare two bikes is to consider how these measurements work together rather than focusing on a single number. Geometry is a complete system, and each measurement influences the others.

Road Bike Geometry in Practice

Road bike geometry becomes much easier to understand when it is applied to real bicycles rather than abstract numbers. Different frame designs create very different riding experiences, even when the bikes look similar at first glance.

Sunpeed Victory – Race-Focused Geometry

The Sunpeed Victory is a clear example of a race-oriented road bike. Its geometry is designed around a lower stack and longer reach, which places the rider in a more forward and aerodynamic position. This setup reduces frontal resistance and makes the bike feel fast and responsive, especially when riding at higher speeds or during group rides.

The slightly more aggressive position encourages efficient power transfer and quick handling, which is why this type of geometry is commonly chosen by riders who prioritise speed, training performance and sporty road riding.

Sunpeed Astro Endurance – Comfort-Oriented Geometry

The Sunpeed Astro Endurance represents a more comfort-focused approach to road bike design. Its geometry features a higher stack and shorter reach, which creates a more upright and relaxed riding position. This reduces strain on the back, shoulders and wrists, especially on longer rides or uneven road surfaces.

This type of geometry is ideal for riders who prioritise comfort over long distances, or those who prefer a more stable and predictable ride rather than a highly aggressive racing position.

Final Thoughts

Road bike geometry plays a fundamental role in how a bike feels and performs. While components influence performance, geometry defines the overall character of the ride. Choosing the right geometry is about matching the bike to your body, flexibility and riding goals so that the bike feels natural and efficient in real-world riding conditions.

FAQ

What is the most important road bike geometry measurement?

There is no single measurement that determines how a bike will feel, but stack and reach are generally considered the most useful because they describe your riding position more accurately than traditional frame size.

Is aggressive geometry uncomfortable for beginners?

Not necessarily, but most beginners find endurance geometry easier to ride because it provides a more upright position and greater stability. Riders with limited flexibility may also find aggressive race geometry difficult to maintain on longer rides.

Does road bike geometry affect speed?

Yes. Geometry influences riding position, which directly affects aerodynamics, comfort and pedalling efficiency. While fitness remains the biggest factor in overall speed, the right geometry allows riders to maintain an efficient position for longer.

Can I make a race bike feel more comfortable?

You can improve comfort by adjusting components such as the stem, handlebars and saddle position. However, these changes cannot completely transform a race bike into an endurance bike because the frame geometry itself remains unchanged.

What road bike geometry is best for UK roads?

Many cyclists riding on typical UK roads prefer endurance-oriented geometry because it provides greater comfort and confidence on rough tarmac, broken surfaces and longer rides. Riders who mainly cycle on smooth roads or participate in racing may still benefit from a more aggressive geometry.

How do I know if a bike's geometry is right for me?

The best approach is to consider your riding style, flexibility and the type of roads you ride most often. Comparing stack and reach measurements between different bikes and getting a professional bike fit can help you choose a frame that feels comfortable from the first ride.
